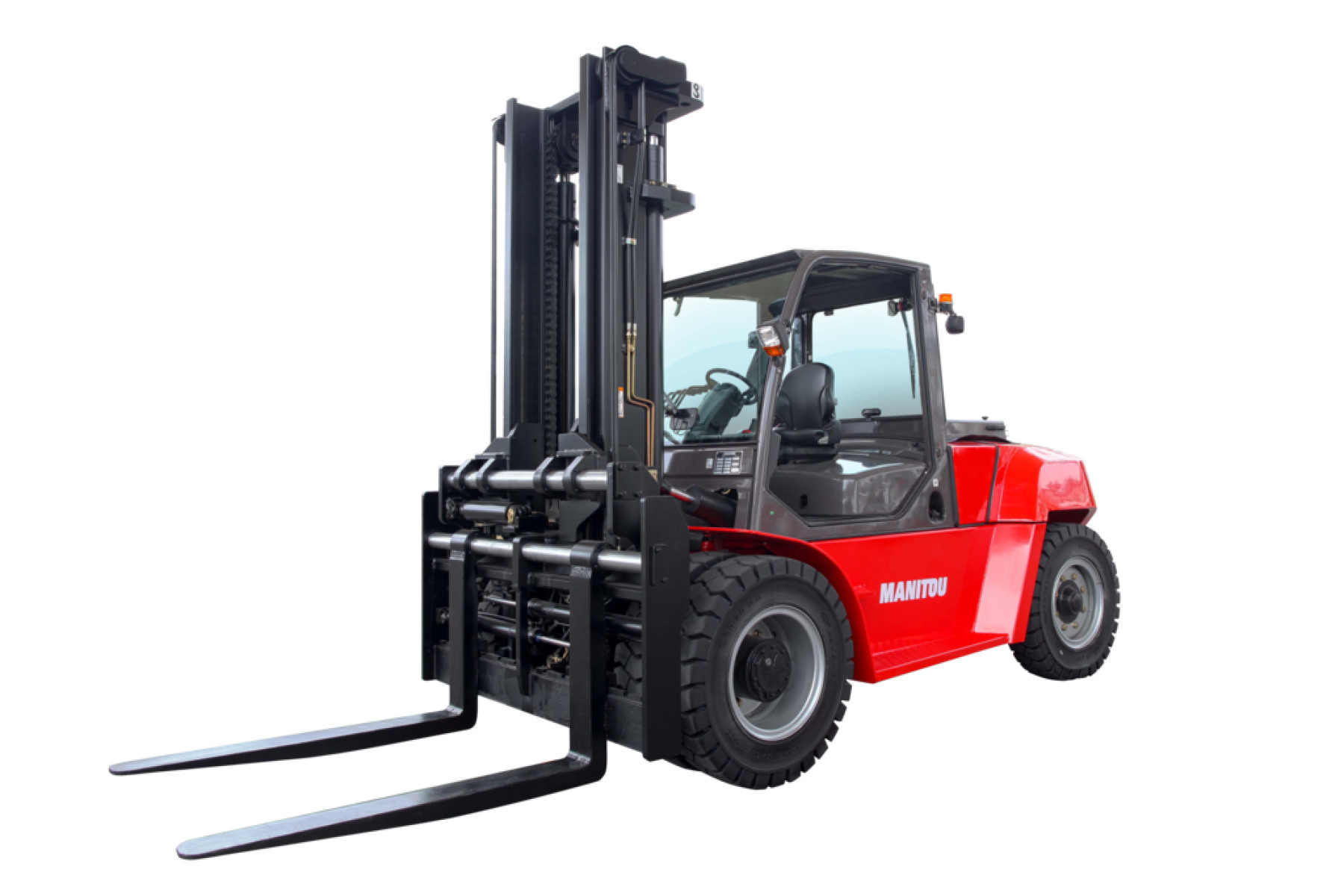

Forklift trucks MI-X 80 D
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
2 500 mm
Load distance, centre of drive axle to fork
705 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for MI-X 80 D
- TECHNICAL CHARACTERISTICS
- Model NameMI-X 80 D
- Power sourceDiesel
- Operator typeSeated
- Load center of gravity600 mm
- Wheelbase2 500 mm
- Load distance, centre of drive axle to fork705 mm
- Max. capacity8 000 kg
- WEIGHT
- Service weight11 790 kg
- Weight on front axle (laden)17 670 kg
- Weight on rear axle (laden)2 120 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 580 mm
- Seat height/stand height1 505 mm
- Height of towing bar (coupling height)505 mm
- Overall length5 395 mm
- Length to face of forks3 895 mm
- Overall width2 165 mm
- Overall width - Single wheels2 165 mm
- Forks section75 mm
- Forks width160 mm
- Forks length1 520 mm
- Fork carriage ISO 2328 (class/form) A/B4A
- Ground clearance below mast185 mm
- Ground clearance at centre of wheelbase339 mm
- Aisle Width for pallets 1000 x 1200 crossways5 637 mm
- Aisle width for 800 x 1200 pallet lengthways5 803 mm
- Internal turning radius (over tyres)1 327 mm
- WHEELS
- Tires typePneumatic
- Dimensions of front wheels9.00-20-14PR
- Dimensions of rear wheels9.00-20-14PR
- Number of front wheels4
- Number of rear wheels2
- Number of drive wheels4
- Front wheel gauge1 628 mm
- Rear wheel gauge1 700 mm
- MASTS
- Max. lifting height6 000 mm
- PERFORMANCES
- Travel speed (laden)28 km/h
- Travel speed (unladen)32 km/h
- Lifting speed (laden)0,43 m/s
- Lifting speed (unladen)0,46 m/s
- Lowering speed (laden)0,45 m/s
- Lowering speed (unladen)0,36 m/s
- Gradeability (laden)44 %
- Gradeability (unladen)44 %
- Acceleration time (laden)5,5 s
- Service brakeHydraulic
- ENGINE
- Engine brandCummins
- Engine modelQSB4,5
- Engine normStage IIIA
- Engine power (Hp)112 Hp
- Engine power (kW)82 kW
- Rated speed2 200 rpm
- Capacity of cylinders4 500 cm³
- Number of cylinders4
- TRANSMISSION
- Transmission typeTorque converter
- Drawbar pull (Laden)7 860 daN
- Drawbar pull (Unladen)4 500 daN
- HYDRAULICS
- Oil flow rate for attachments180 l/min
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05388 dB
- Measured/guaranteed mean noise level at the ear of the operator88 dB
