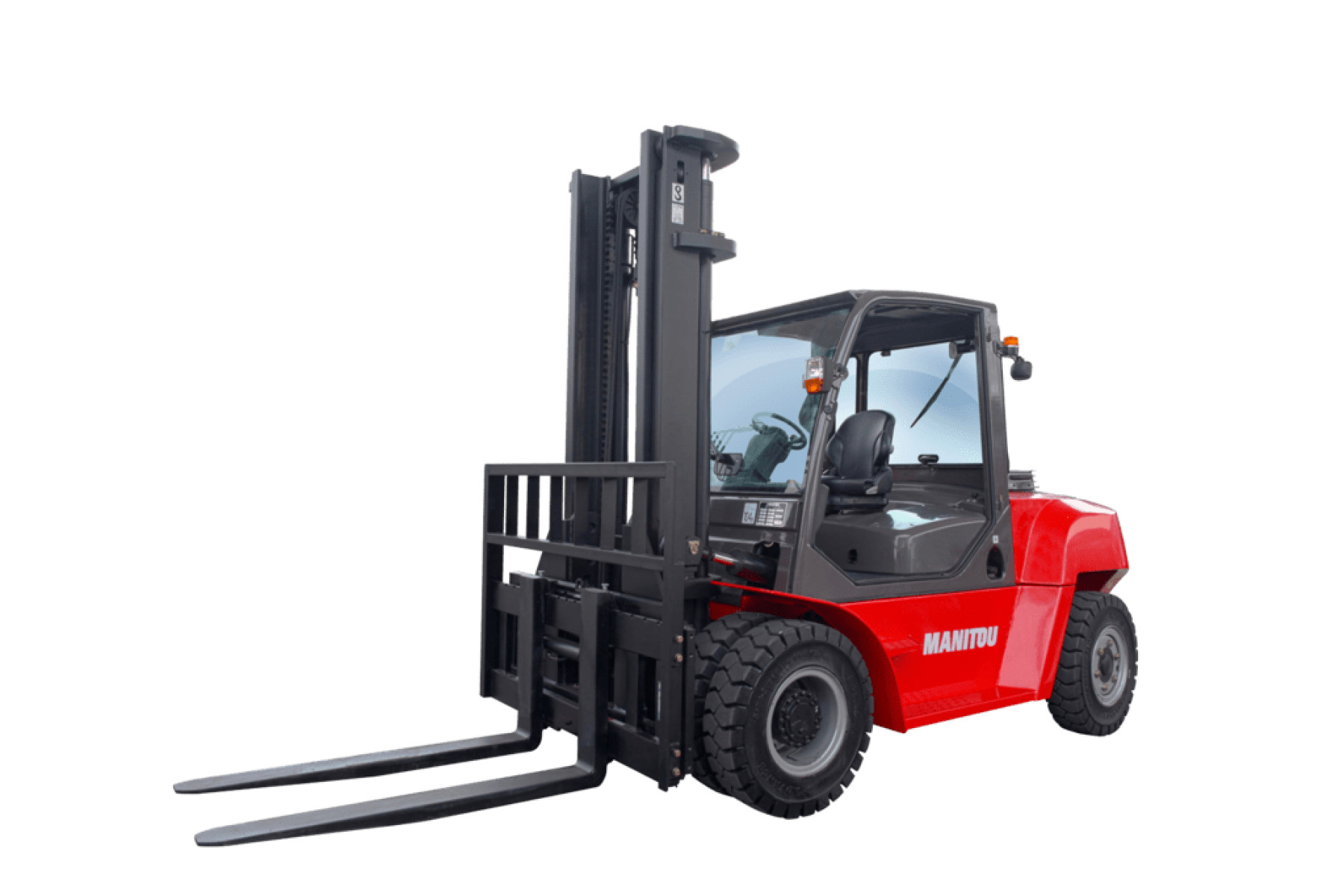

Forklift trucks MI-X 70 D
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
2 300 mm
Load distance, centre of drive axle to fork
603 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for MI-X 70 D
- TECHNICAL CHARACTERISTICS
- Model NameMI-X 70 D
- Power sourceDiesel
- Operator typeSeated
- Load center of gravity600 mm
- Wheelbase2 300 mm
- Load distance, centre of drive axle to fork603 mm
- Max. capacity7 000 kg
- WEIGHT
- Service weight9 595 kg
- Weight on front axle (laden)14 830 kg
- Weight on front axle (Unladen)3 910 kg
- Weight on rear axle (laden)1 765 kg
- Weight on rear axle (Unladen)5 685 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 430 mm
- Seat height/stand height1 350 mm
- Height of towing bar (coupling height)710 mm
- Overall length4 804 mm
- Length to face of forks3 584 mm
- Overall width1 990 mm
- Overall width - Single wheels1 990 mm
- Forks section65 mm
- Forks width150 mm
- Forks length1 220 mm
- Fork carriage ISO 2328 (class/form) A/B4A
- Fork carriage width1 700 mm
- Ground clearance below mast190 mm
- Ground clearance at centre of wheelbase270 mm
- Aisle Width for pallets 1000 x 1200 crossways5 242 mm
- Aisle width for 800 x 1200 pallet lengthways5 377 mm
- Internal turning radius (over tyres)1 222 mm
- WHEELS
- Tires typePneumatic
- Dimensions of front wheels8.25-15-14PR
- Dimensions of rear wheels8.25-15-14PR
- Number of front wheels4
- Number of rear wheels2
- Number of drive wheels4
- Front wheel gauge1 489 mm
- Rear wheel gauge1 700 mm
- MASTS
- Max. lifting height6 000 mm
- PERFORMANCES
- Travel speed (laden)26 km/h
- Travel speed (unladen)29 km/h
- Lifting speed (laden)0,41 m/s
- Lifting speed (unladen)0,46 m/s
- Lowering speed (laden)0,48 m/s
- Lowering speed (unladen)0,42 m/s
- Gradeability (laden)36 %
- Acceleration time (laden)5,5 s
- Service brakeHydraulic
- ENGINE
- Engine brandCummins
- Engine modelQSB3,3
- Engine normStage IIIA
- Engine power (Hp)101 Hp
- Engine power (kW)74 kW
- Rated speed2 200 rpm
- Capacity of cylinders3 300 cm³
- Number of cylinders4
- TRANSMISSION
- Transmission typeTorque converter
- Drawbar pull (Laden)6 800 daN
- Drawbar pull (Unladen)2 750 daN
- HYDRAULICS
- Oil flow rate for attachments55 l/min
- Working hydraulic pressure for attachments195 bar
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05388 dB
- Measured/guaranteed mean noise level at the ear of the operator88 dB
