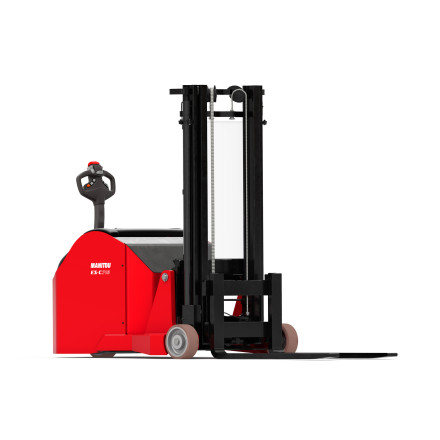

Warehousing ES-C 711
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
940 mm
Distance from Load backrest to center of rear axle
157 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for ES-C 711
- TECHNICAL CHARACTERISTICS
- Model NameES-C 711
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity500 mm
- Wheelbase940 mm
- Distance from Load backrest to center of rear axle157 mm
- Max. capacity1 100 kg
- WEIGHT
- Service weight2 300 kg
- Weight on front axle (laden)475 kg
- Weight on front axle (Unladen)1 250 kg
- Weight on rear axle (laden)2 921 kg
- Weight on rear axle (Unladen)1 050 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.1 005 mm
- Height tiller max.1 405 mm
- Fork height in low position45 mm
- Overall length2 430 mm
- Length to face of forks1 280 mm
- Overall width1 120 mm
- Forks section35 mm
- Forks width100 mm
- Forks length1 150 mm
- Fork carriage width750 mm
- Ground clearance below mast31 mm
- Ground clearance at centre of wheelbase52 mm
- Aisle Width for pallets 1000 x 1200 crossways2 373 mm
- Aisle width for 800 x 1200 pallet lengthways2 881 mm
- Turning radius1 305 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels254x100
- Size of load wheels250x100
- Number of load wheels2
- Number of front wheels1
- Number of rear wheels2
- Number of drive wheels1
- Rear wheel gauge1 003 mm
- MASTS
- Max. lifting height5 415 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,11 m/s
- Lifting speed (unladen)0,2 m/s
- Lowering speed (laden)0,22 m/s
- Lowering speed (unladen)0,21 m/s
- Max Gradeability (laden)5 %
- Max Gradeability (unladen)8 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min2 kW
- Lift motor rating at S3 15%4 kW
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05365 dB
- BATTERY
- Battery capacity315 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)275 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43535-B

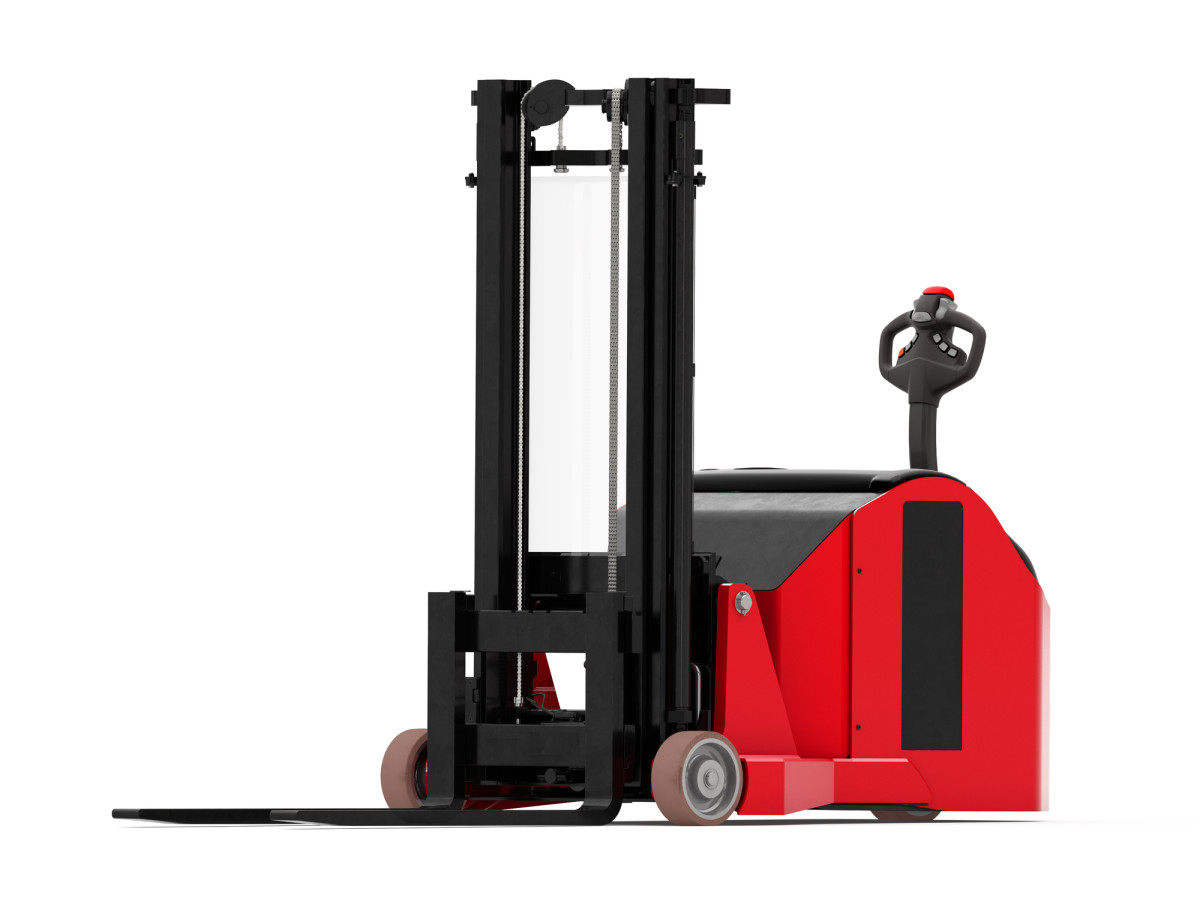

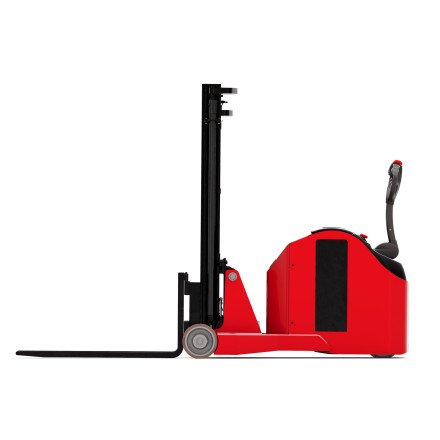

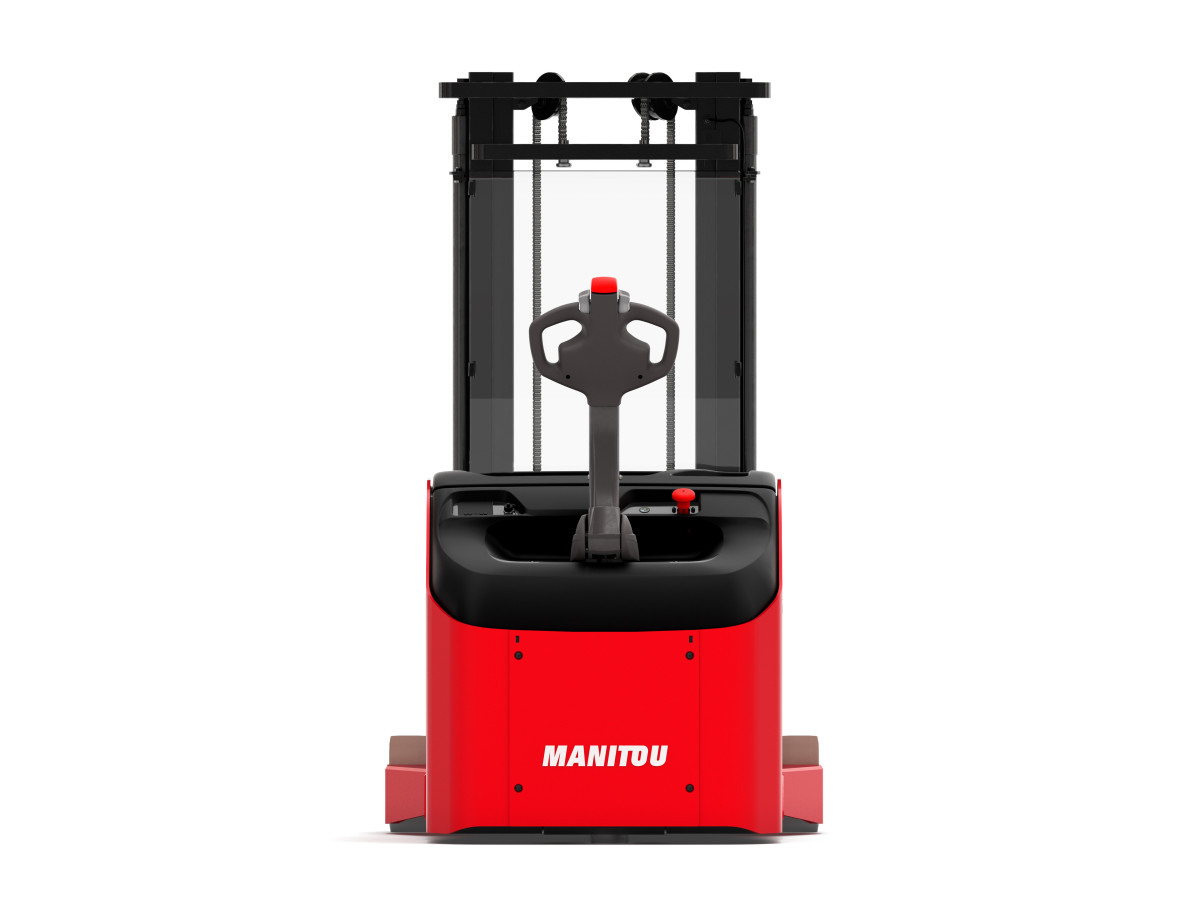

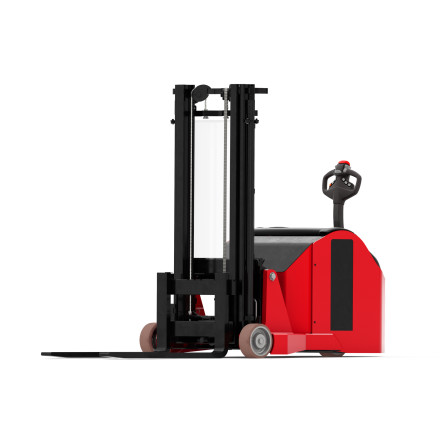

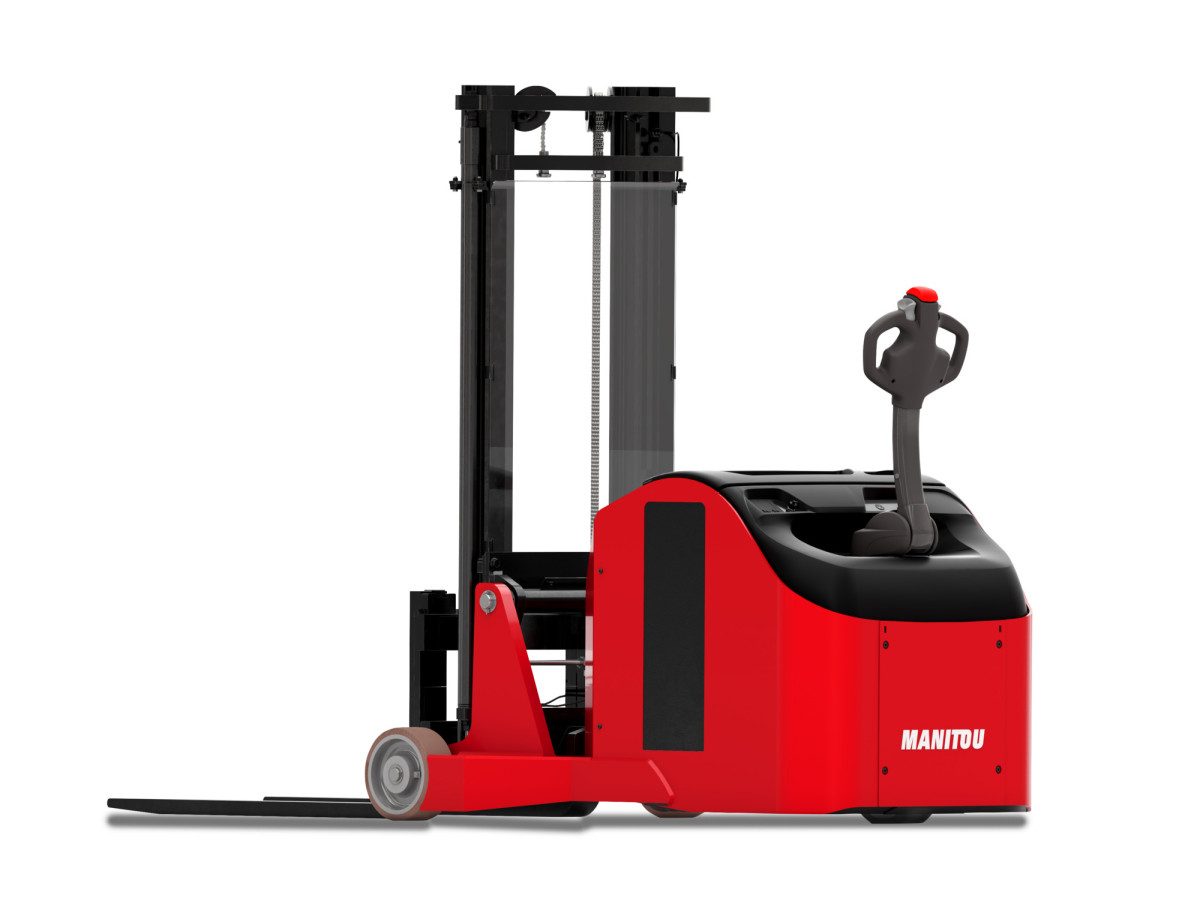

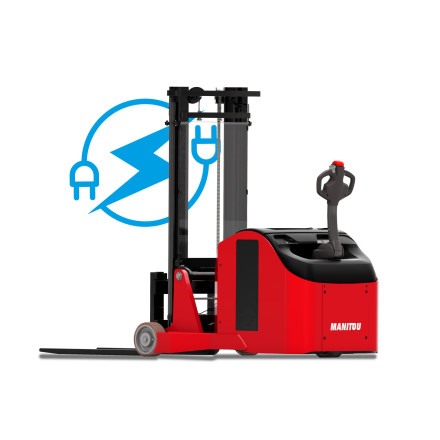

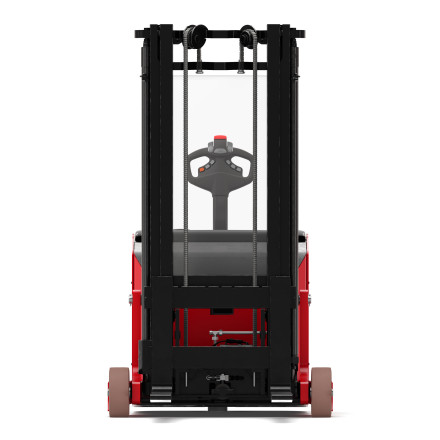

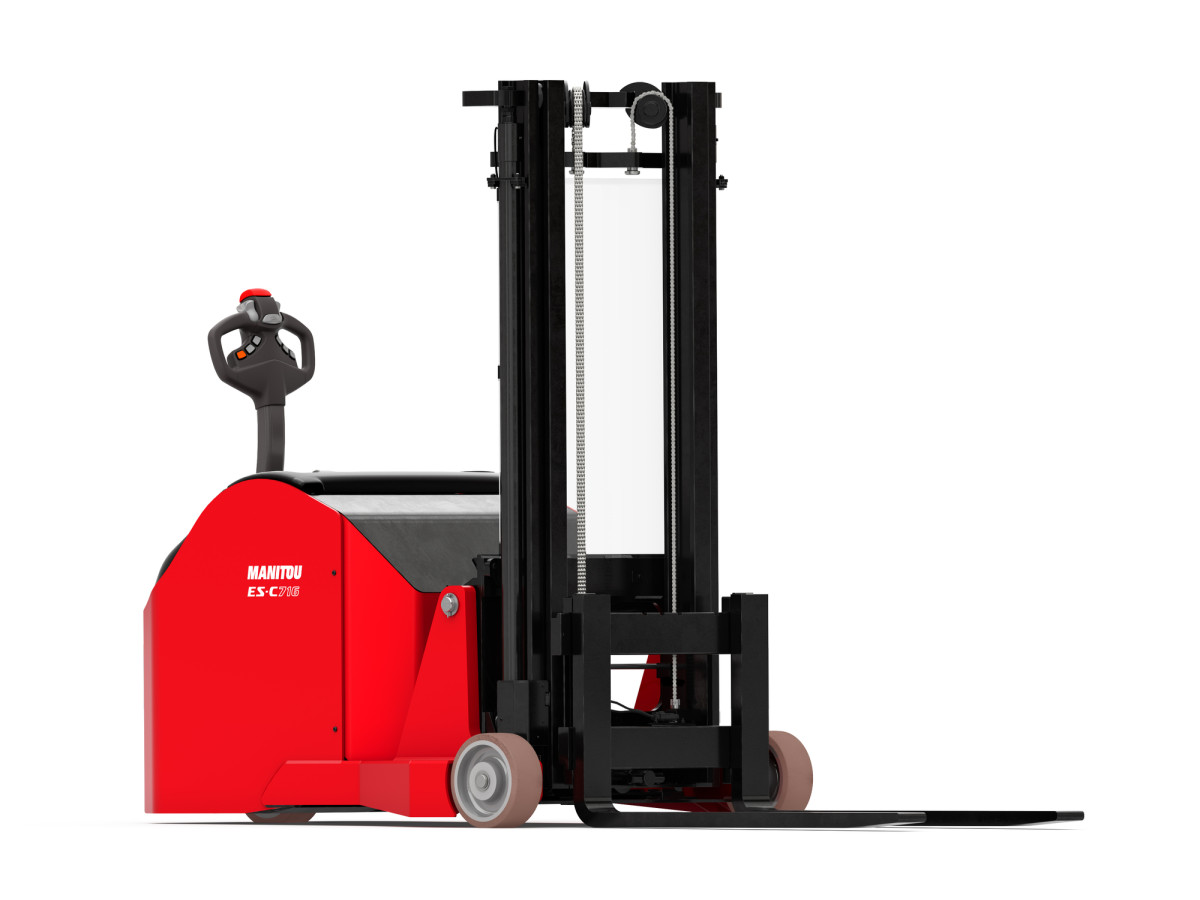

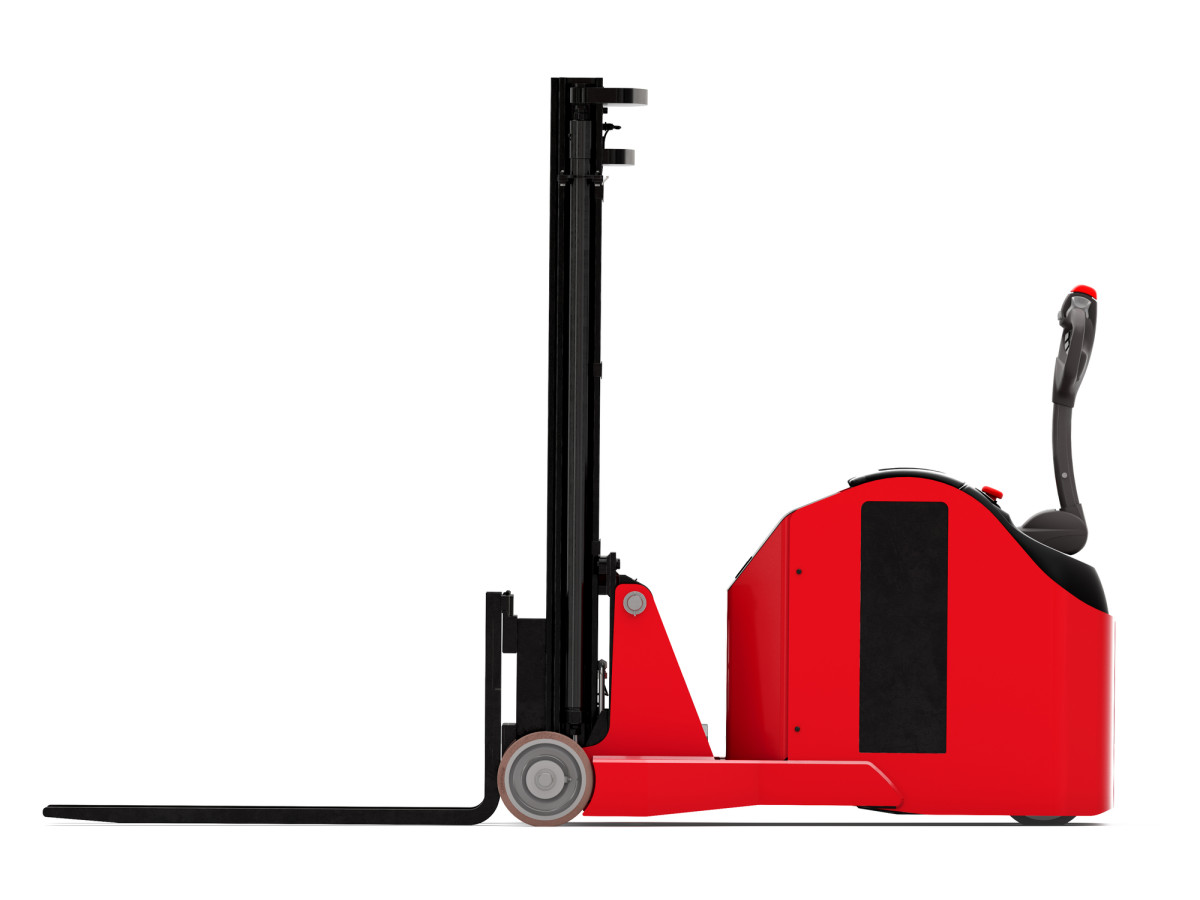

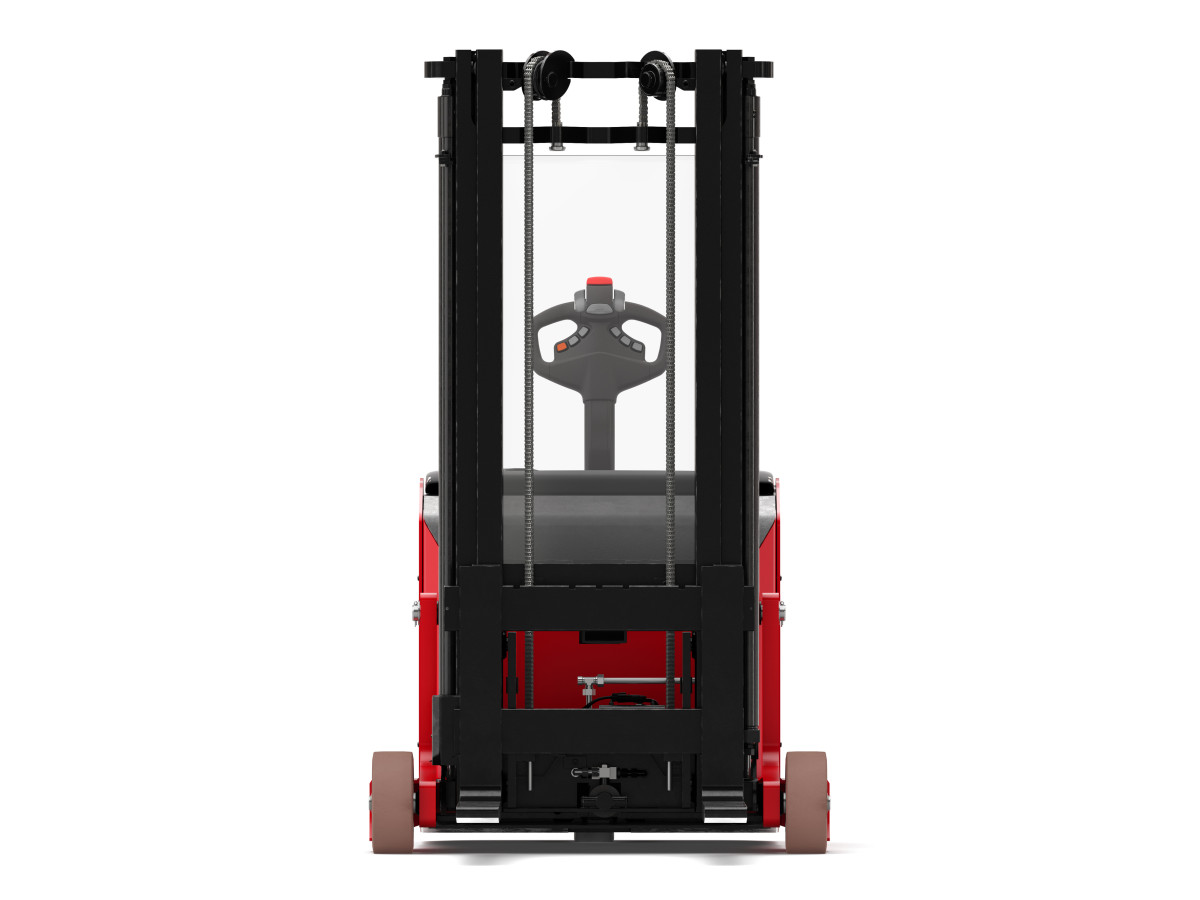

Media Gallery
