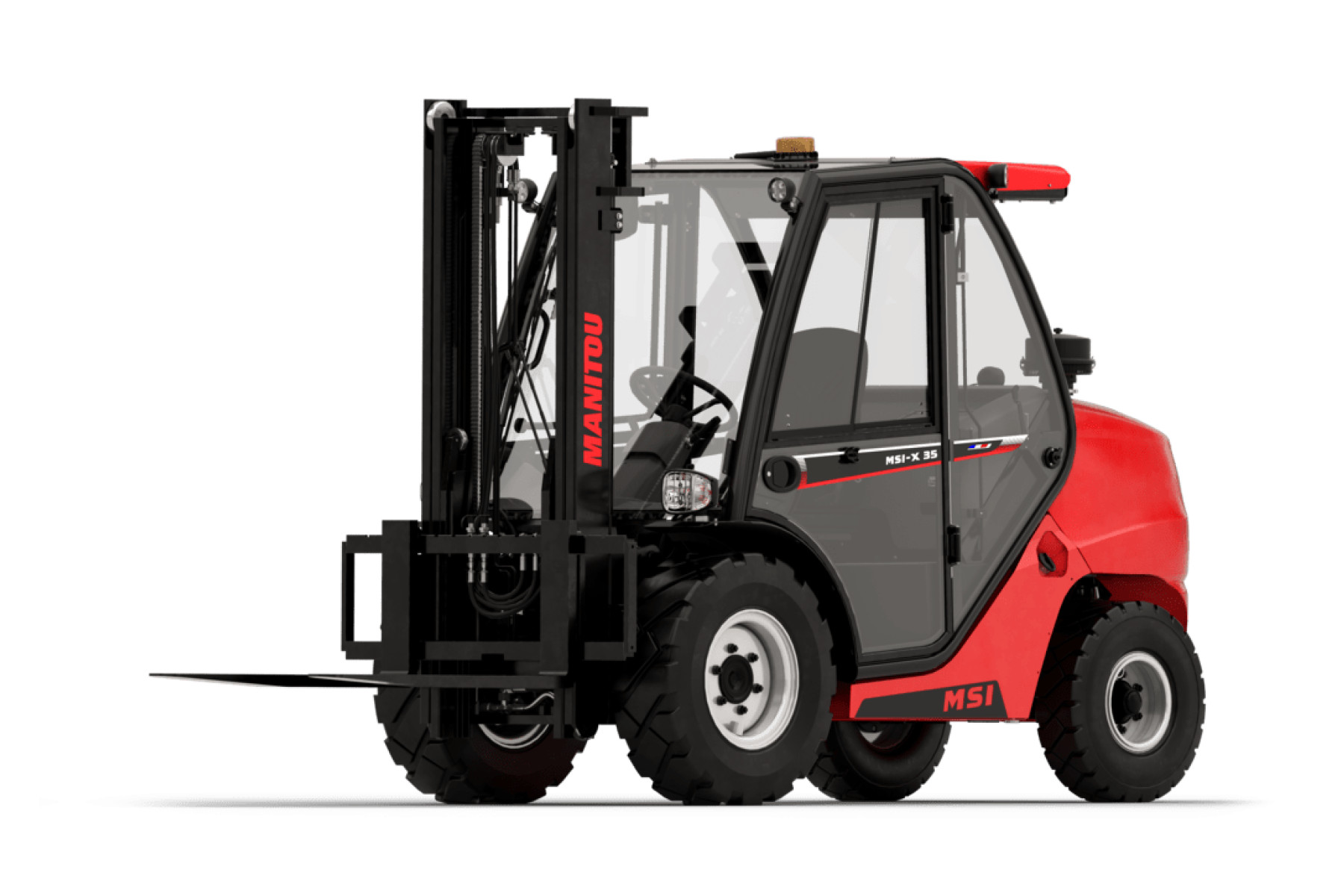

Forklift trucks MSI-X 35
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
1 900 mm
Load distance, centre of drive axle to fork
631 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for MSI-X 35
- TECHNICAL CHARACTERISTICS
- Model NameMSI-X 35
- Power sourceDiesel
- Operator typeSeated
- Load center of gravity500 mm
- Wheelbase1 900 mm
- Load distance, centre of drive axle to fork631 mm
- Max. capacity3 500 kg
- WEIGHT
- Service weight4 645 kg
- Weight on front axle (laden)7 260 kg
- Weight on front axle (Unladen)1 680 kg
- Weight on rear axle (laden)885 kg
- Weight on rear axle (Unladen)2 965 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 095 mm
- Seat height/stand height972 mm
- Overall length4 239 mm
- Length to face of forks3 189 mm
- Overall width1 330 mm
- Forks section50 mm
- Forks width122 mm
- Forks length1 150 mm
- Fork carriage ISO 2328 (class/form) A/B3A
- Fork carriage width1 260 mm
- Ground clearance below mast260 mm
- Ground clearance at centre of wheelbase238 mm
- Aisle Width for pallets 1000 x 1200 crossways4 661 mm
- Turning radius2 680 m
- WHEELS
- Tires typePneumatic
- Dimensions of front wheels300-15/18 6T P43
- Dimensions of rear wheels7.00-12/12 ED PLUS
- Number of front wheels2
- Number of rear wheels2
- Number of drive wheels2
- Front wheel gauge1 044 mm
- Rear wheel gauge1 108 mm
- MASTS
- Max. lifting height6 000 mm
- PERFORMANCES
- Travel speed (laden)18 km/h
- Travel speed (unladen)22 km/h
- Lifting speed (laden)0,5 m/s
- Lifting speed (unladen)0,5 m/s
- Lowering speed (laden)0,5 m/s
- Lowering speed (unladen)0,3 m/s
- Gradeability (laden)26 %
- Gradeability (unladen)31 %
- Service brakeHydraulic brakes by loss of pressure
- ENGINE
- Engine brandKubota
- Engine modelV2403
- Engine normStage IIIA
- Engine power (Hp)49 Hp
- Engine power (kW)36 kW
- Rated speed2 700 rpm
- Capacity of cylinders2 434 cm³
- Number of cylinders4
- TRANSMISSION
- Drawbar pull (Laden)2 070 daN
- Drawbar pull (Unladen)1 380 daN
- HYDRAULICS
- Oil flow rate for attachments45 l/min
- Working hydraulic pressure for attachments180 bar
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05380 dB
- Measured/guaranteed mean noise level at the ear of the operator80 dB
