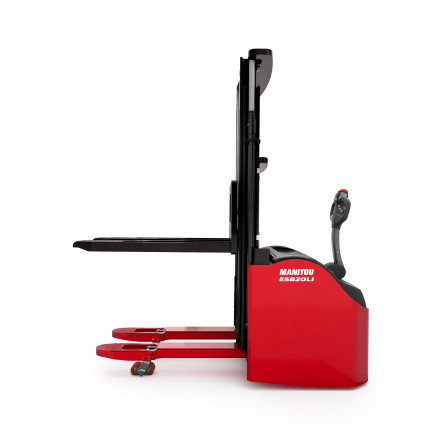

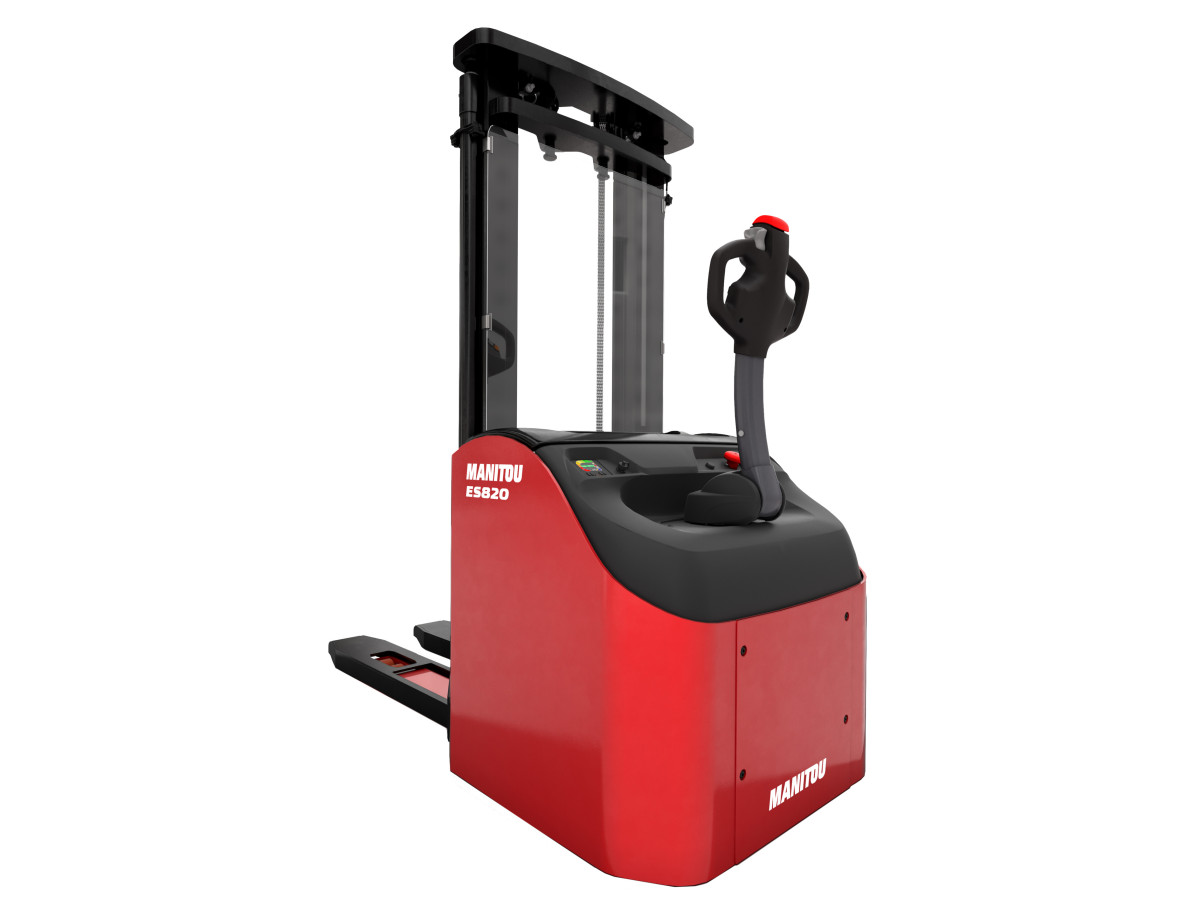

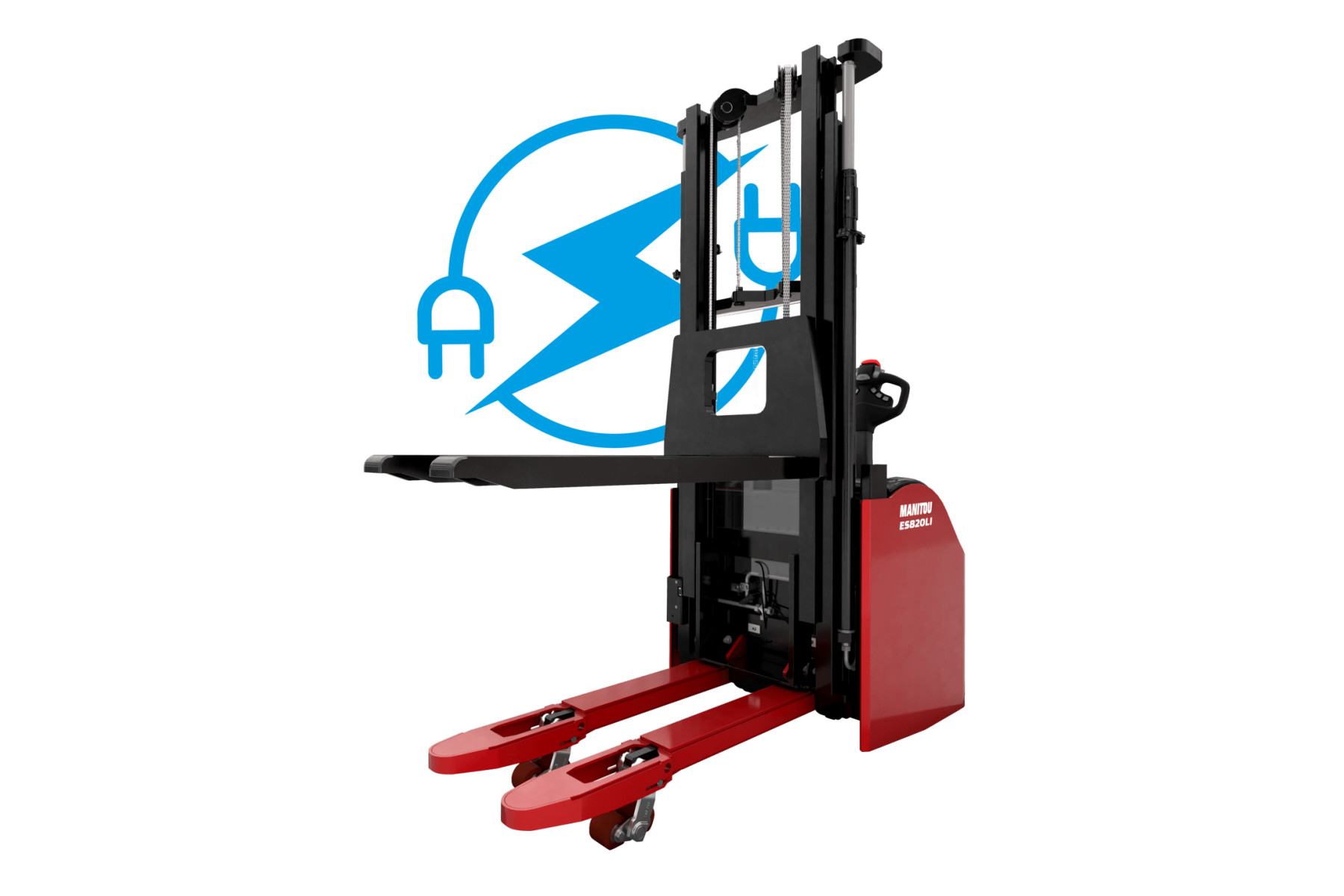

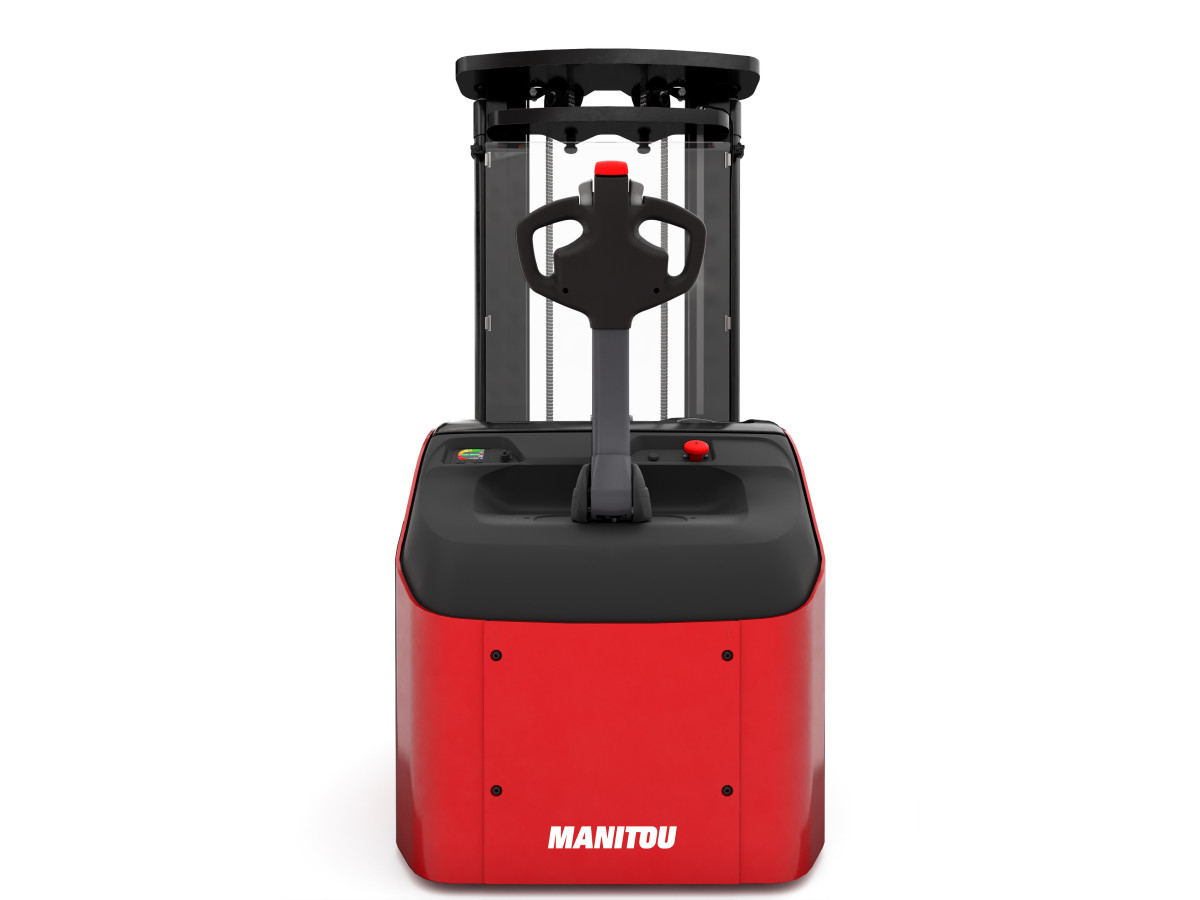

Warehousing ES 820 LI
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
1 509 mm
Nominal capacity on wrapover forks
2 000 kg
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for ES 820 LI
- TECHNICAL CHARACTERISTICS
- Model NameES 820 LI
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity600 mm
- Wheelbase1 509 mm
- Nominal capacity on wrapover forks2 000 kg
- Distance from Load backrest to center of rear axle716 mm
- Max. capacity2 000 kg
- WEIGHT
- Service weight1 800 kg
- Weight on front axle (laden)1 360 kg
- Weight on front axle (Unladen)1 250 kg
- Weight on rear axle (laden)2 500 kg
- Weight on rear axle (Unladen)550 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.900 mm
- Height tiller max.1 400 mm
- Fork height in low position86 mm
- Overall length2 123 mm
- Length to face of forks973 mm
- Overall width890 mm
- Forks section70 mm
- Forks width200 mm
- Forks length1 150 mm
- Fork carriage width700 mm
- Ground clearance below mast20 mm
- Ground clearance at centre of wheelbase21 mm
- Aisle Width for pallets 1000 x 1200 crossways2 572 mm
- Aisle width for 800 x 1200 pallet lengthways2 531 mm
- Turning radius1 719 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels254x100
- Size of load wheels82 x 68
- Number of load wheels4
- Number of castor wheels1
- Number of stabilizer wheels2
- Size of the stabilizer wheels120 x 50
- Number of front wheels3
- Number of rear wheels4
- Number of drive wheels1
- Front wheel gauge664 mm
- Rear wheel gauge375 mm
- MASTS
- Max. lifting height5 455 mm
- Initial lift110 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,11 m/s
- Lifting speed (unladen)0,2 m/s
- Lowering speed (laden)0,21 m/s
- Lowering speed (unladen)0,22 m/s
- Max Gradeability (laden)6 %
- Max Gradeability (unladen)10 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min2 kW
- Lift motor rating at S3 15%4 kW
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05365 dB
- BATTERY
- Battery capacity315 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)273 kg
- Battery according to DIN 43531/35/36 A, B, CTraction

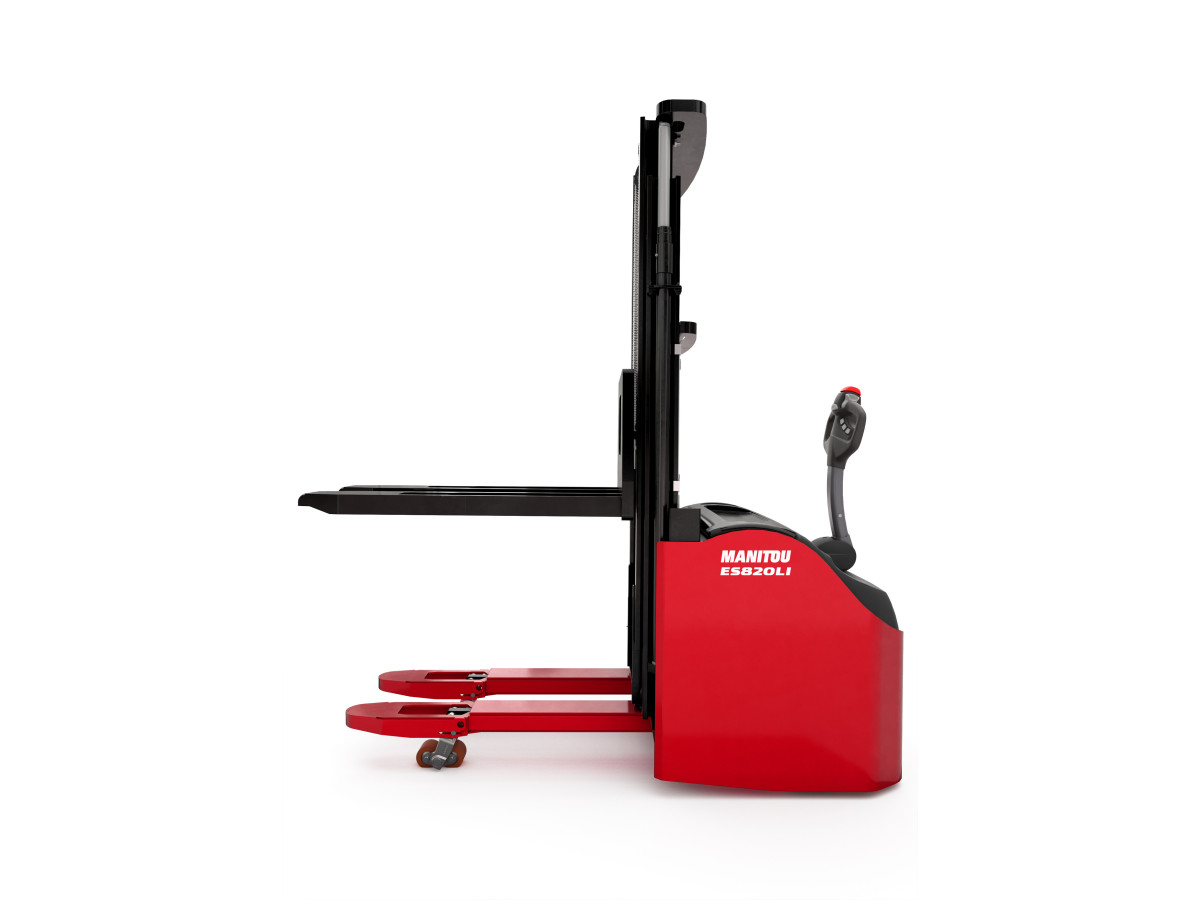

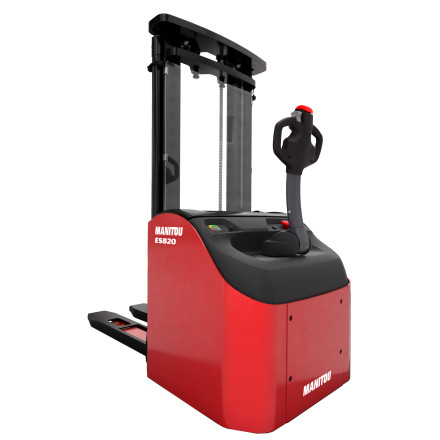

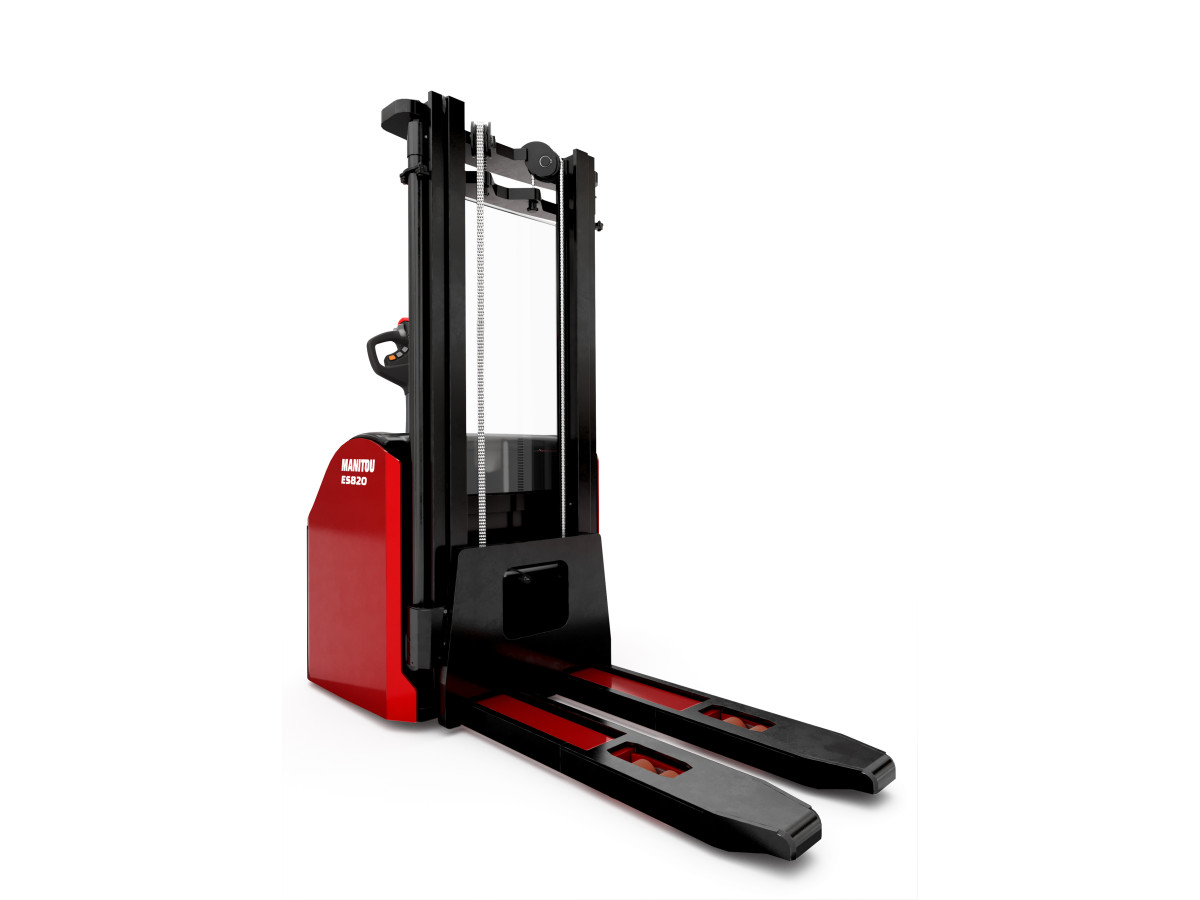

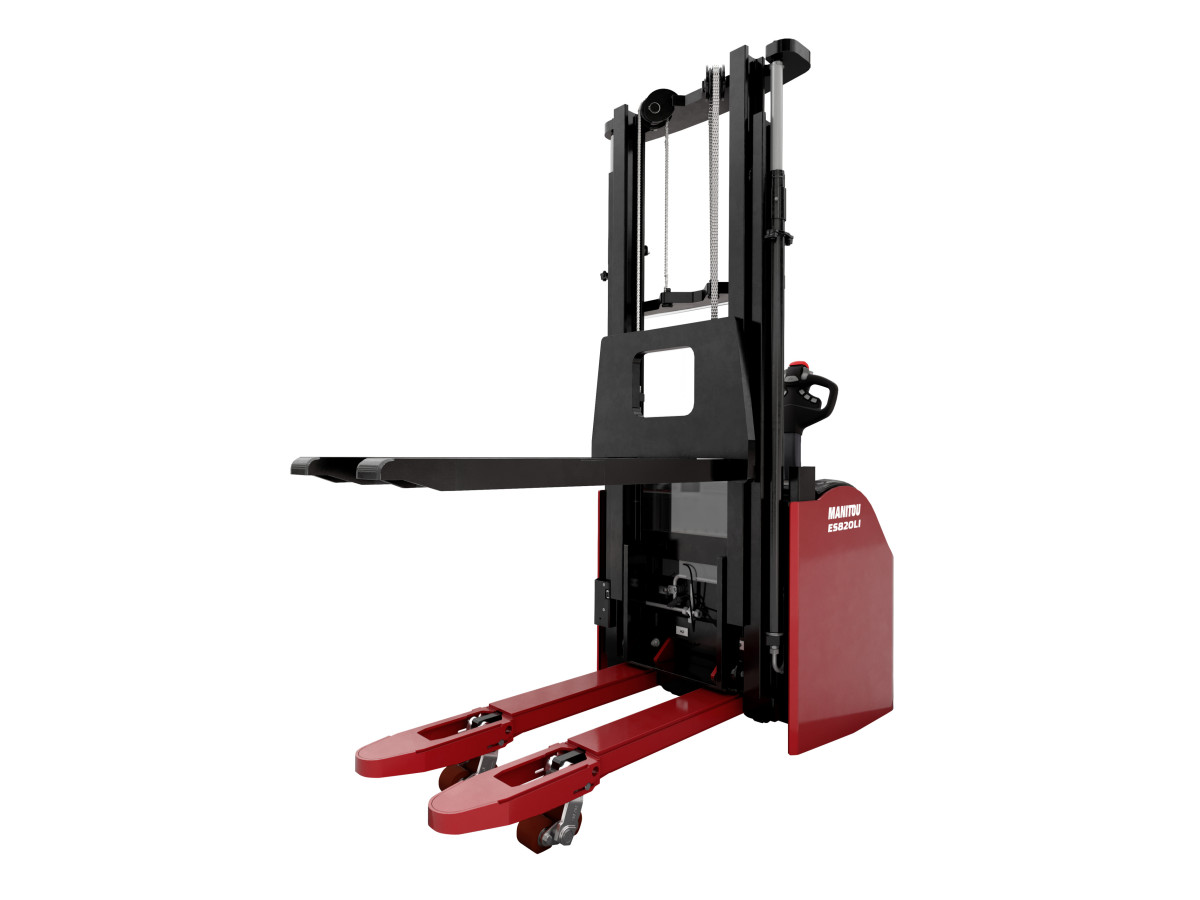

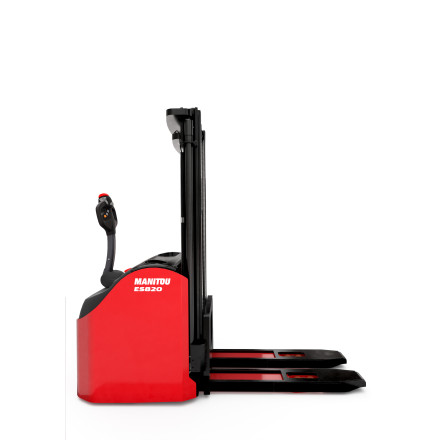

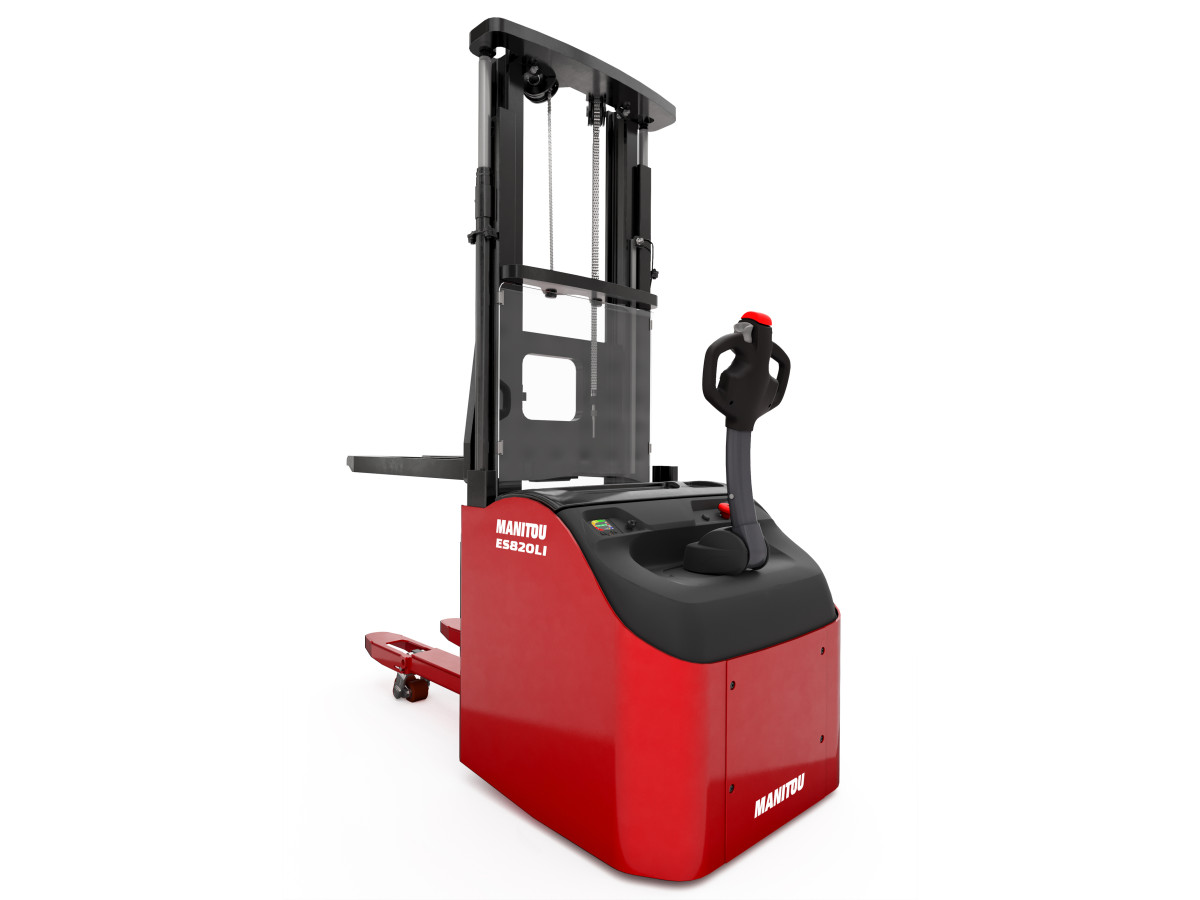

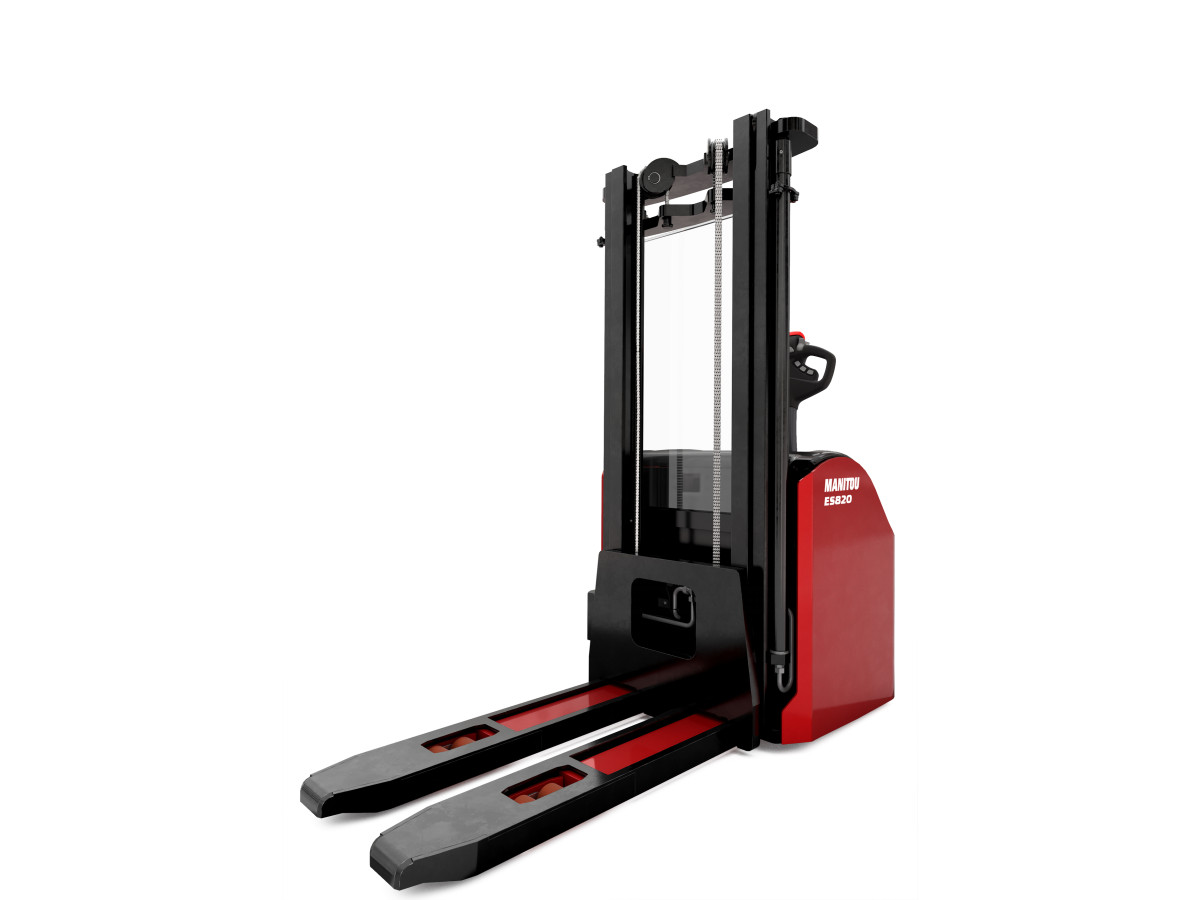

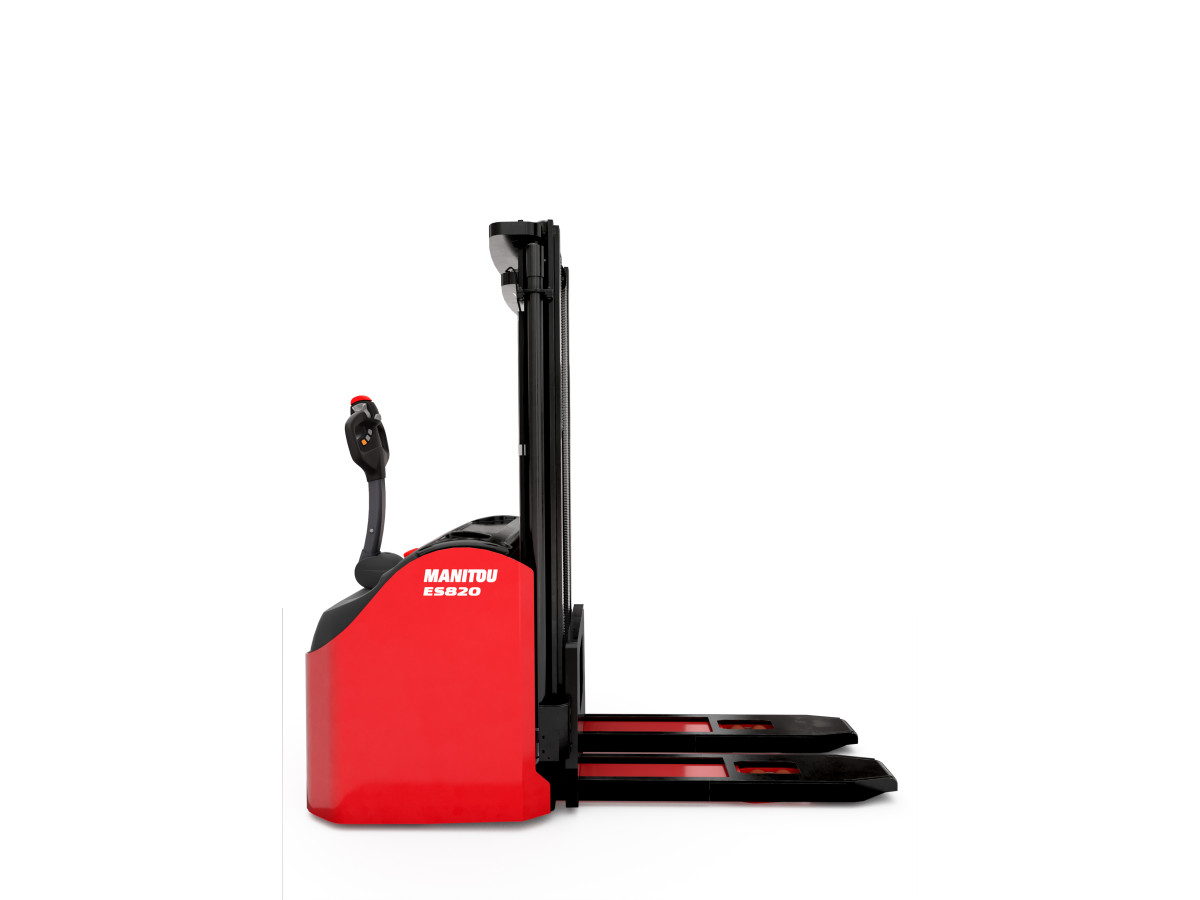

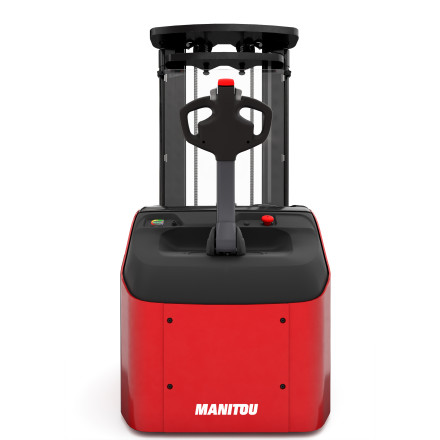

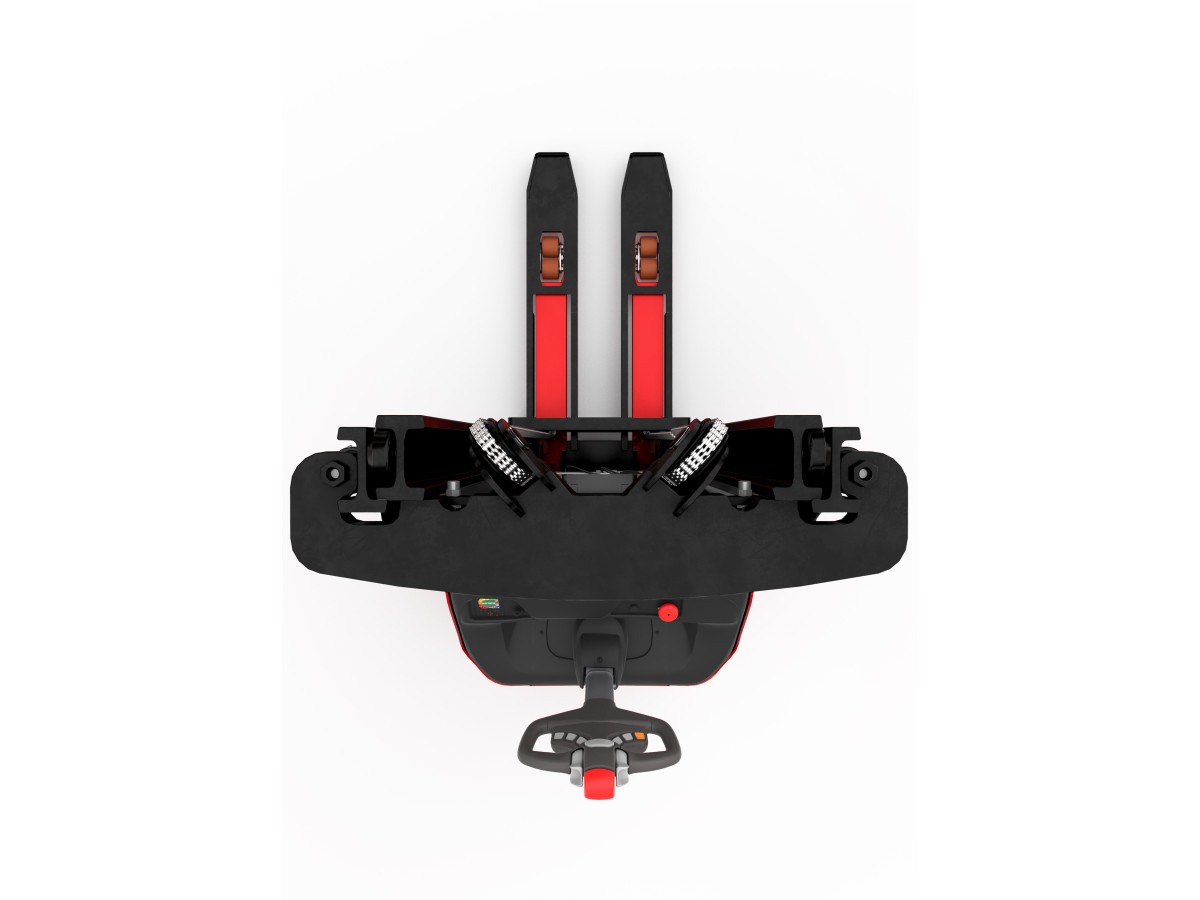

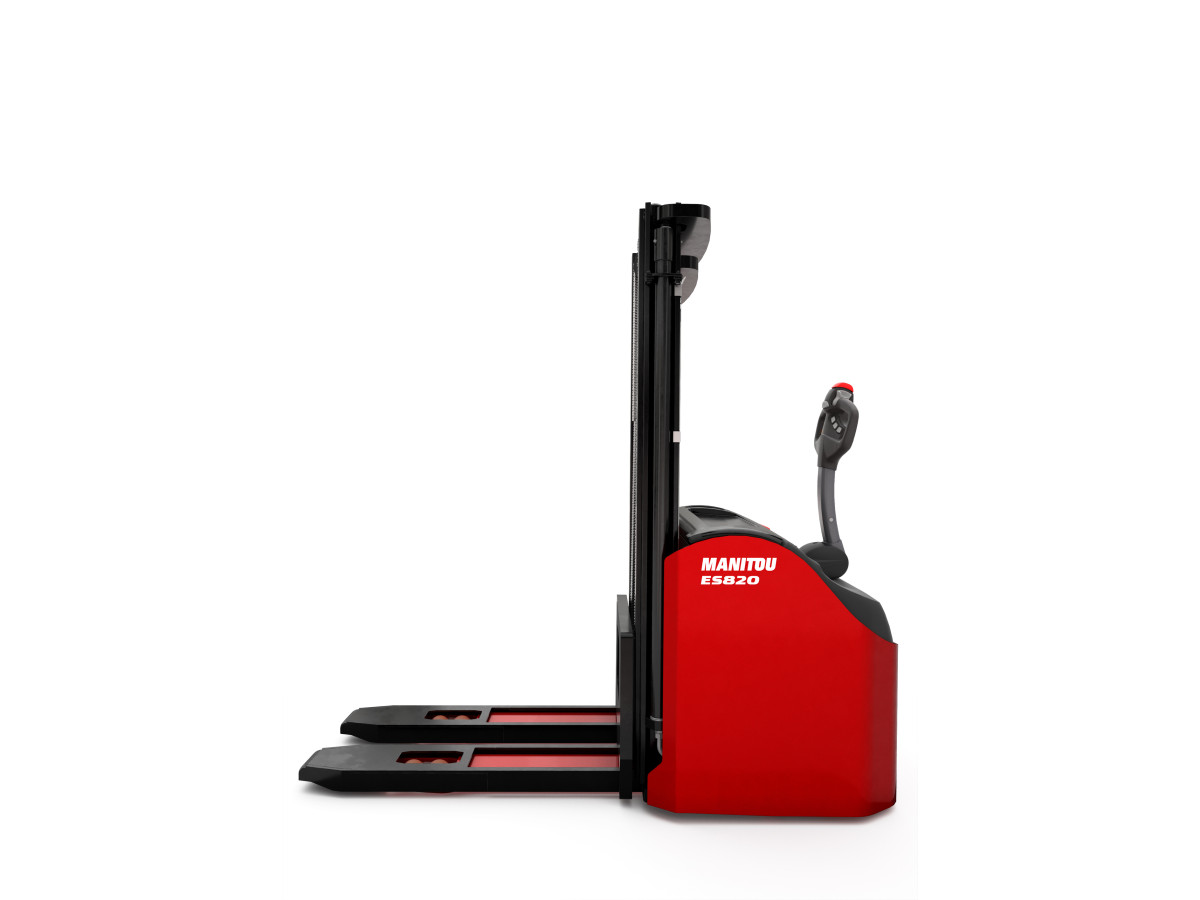

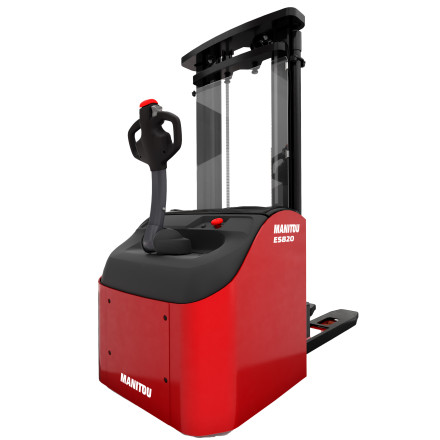

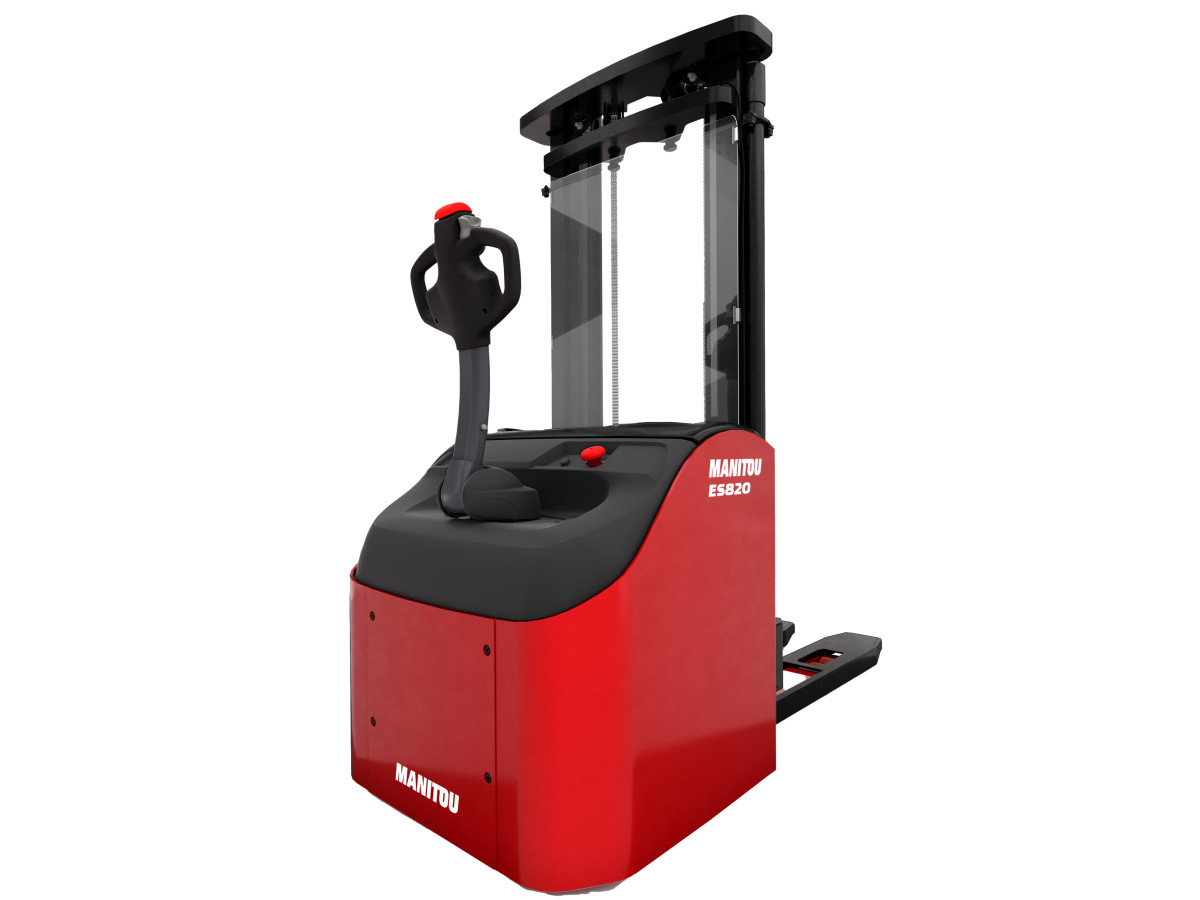

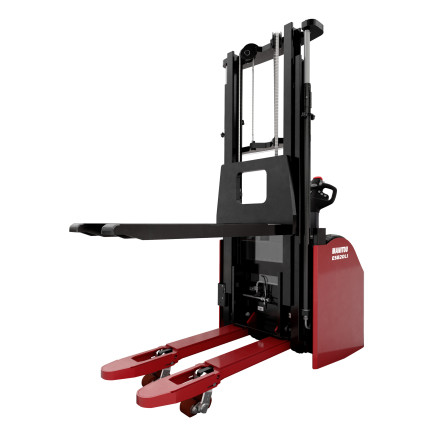

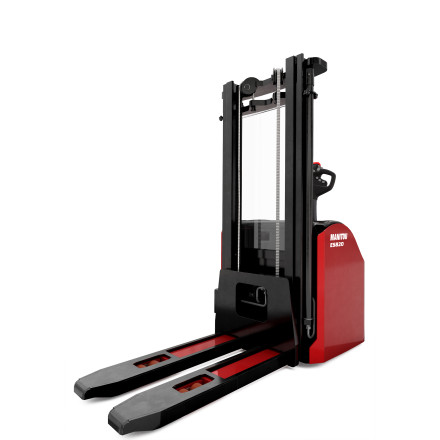

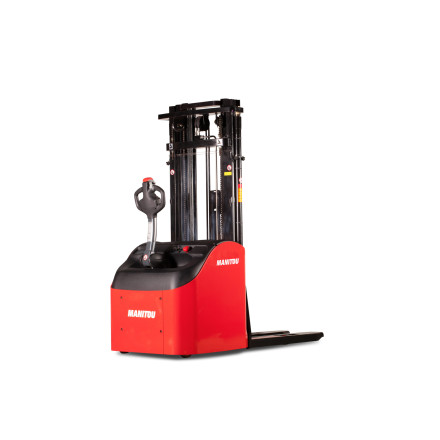

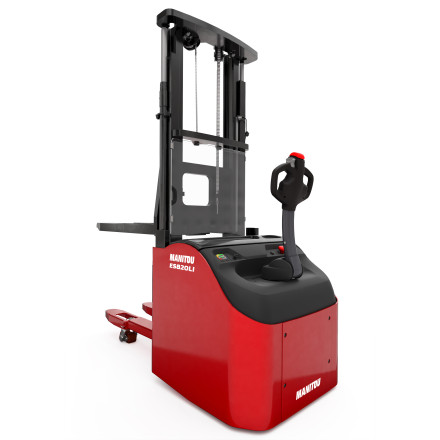

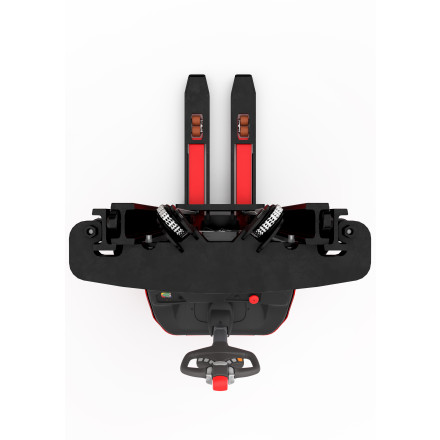

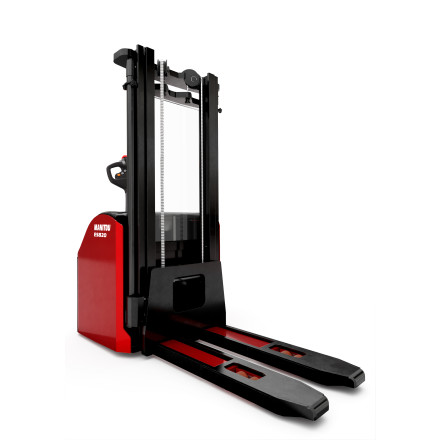

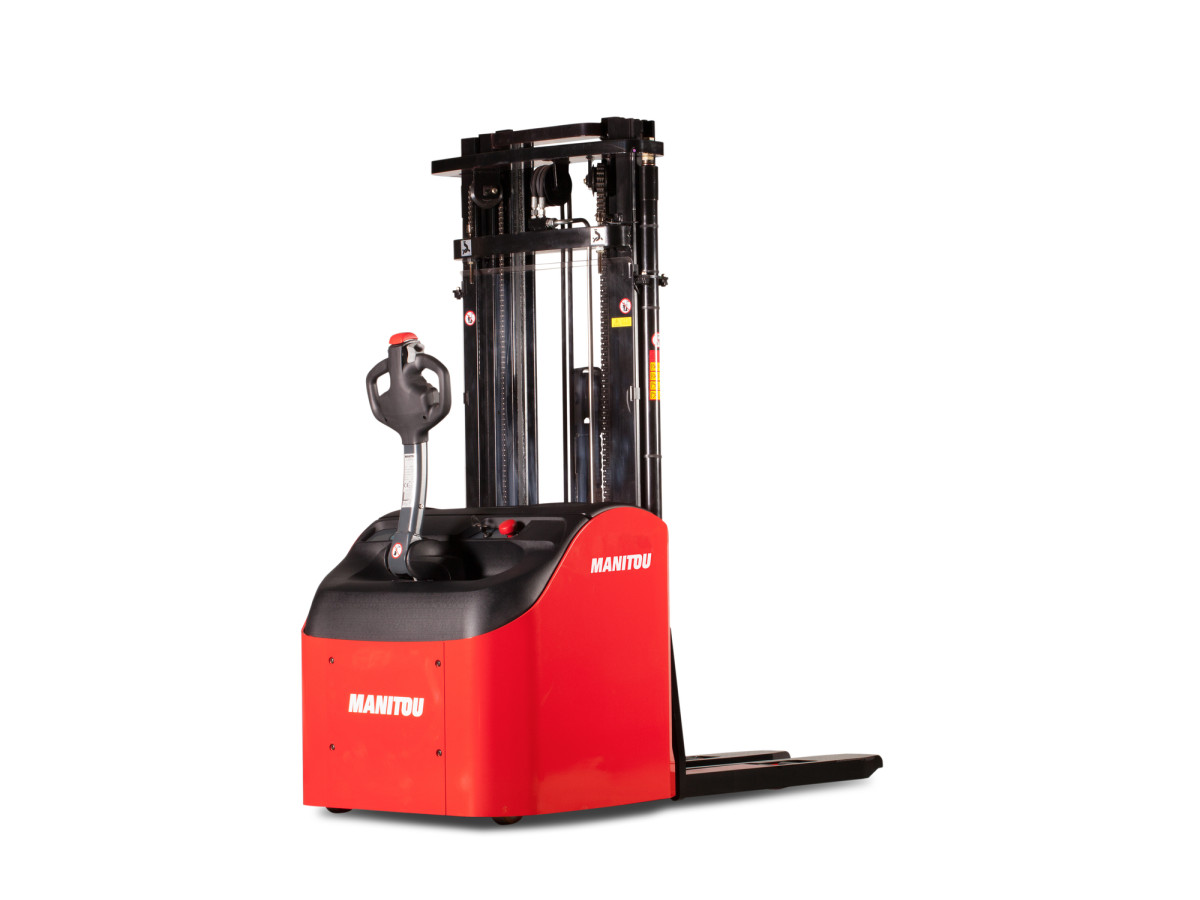

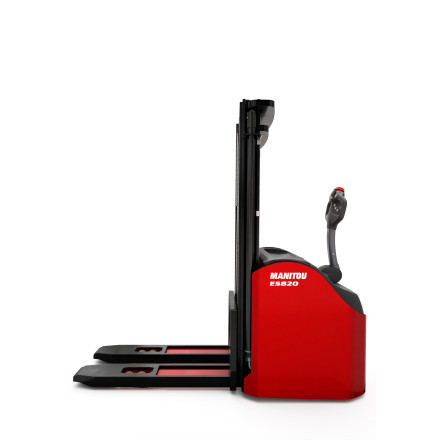

Media Gallery
