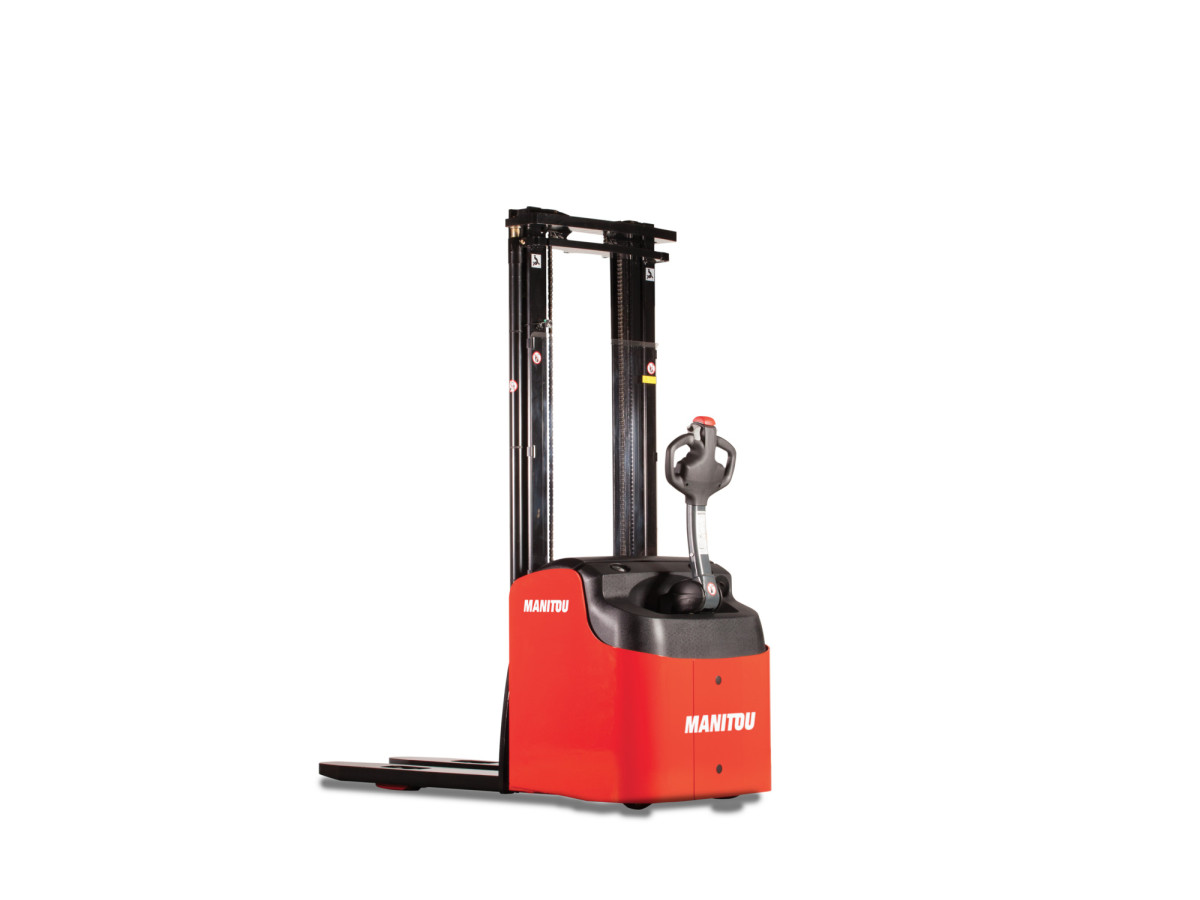

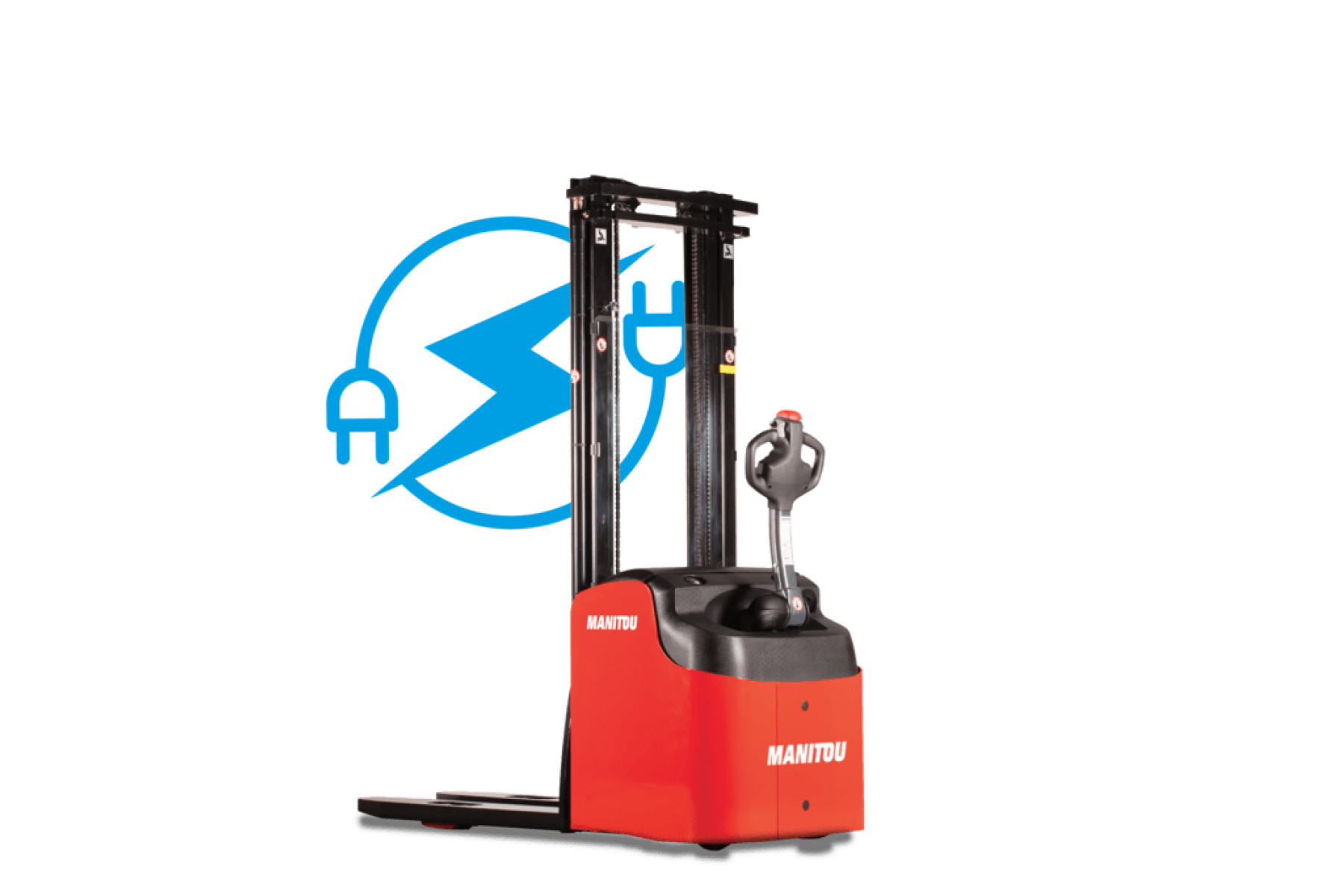

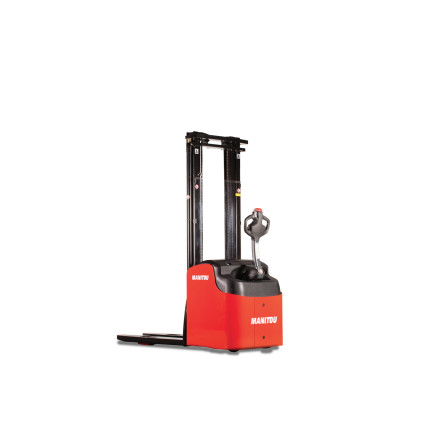

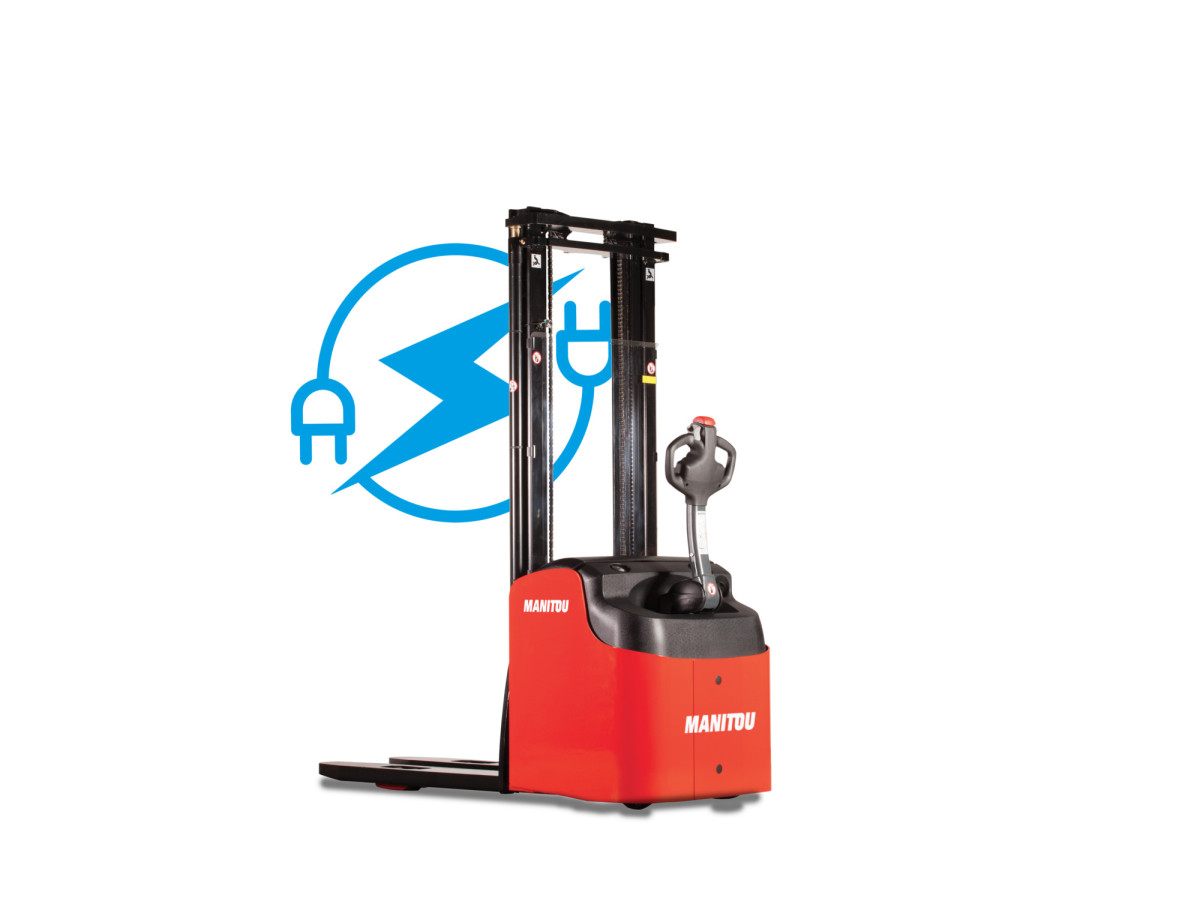

Warehousing ES 614
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
1 252 mm
Distance from Load backrest to center of rear axle
687 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for ES 614
- TECHNICAL CHARACTERISTICS
- Model NameES 614
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity600 mm
- Wheelbase1 252 mm
- Distance from Load backrest to center of rear axle687 mm
- Max. capacity1 400 kg
- WEIGHT
- Service weight1 092 kg
- Weight on front axle (laden)1 037 kg
- Weight on front axle (Unladen)855 kg
- Weight on rear axle (laden)1 455 kg
- Weight on rear axle (Unladen)240 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.750 mm
- Height tiller max.1 250 mm
- Fork height in low position85 mm
- Overall length1 910 mm
- Length to face of forks761 mm
- Overall width800 mm
- Forks section60 mm
- Forks width185 mm
- Forks length1 150 mm
- Fork carriage width700 mm
- Ground clearance at centre of wheelbase30 mm
- Aisle Width for pallets 1000 x 1200 crossways2 286 mm
- Aisle width for 800 x 1200 pallet lengthways2 325 mm
- Turning radius1 476 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels230x70
- Size of load wheels82x68
- Number of load wheels4
- Number of stabilizer wheels1
- Size of the stabilizer wheels120 x 54
- Number of front wheels2
- Number of rear wheels4
- Number of drive wheels1
- Front wheel gauge529 mm
- Rear wheel gauge380 mm
- MASTS
- Max. lifting height4 726 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,18 m/s
- Lifting speed (unladen)0,3 m/s
- Lowering speed (laden)0,27 m/s
- Lowering speed (unladen)0,22 m/s
- Max Gradeability (laden)7 %
- Max Gradeability (unladen)10 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min1,5 kW
- Lift motor rating at S3 15%3 kW
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05365 dB
- BATTERY
- Battery capacity250 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)220 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43535-B
