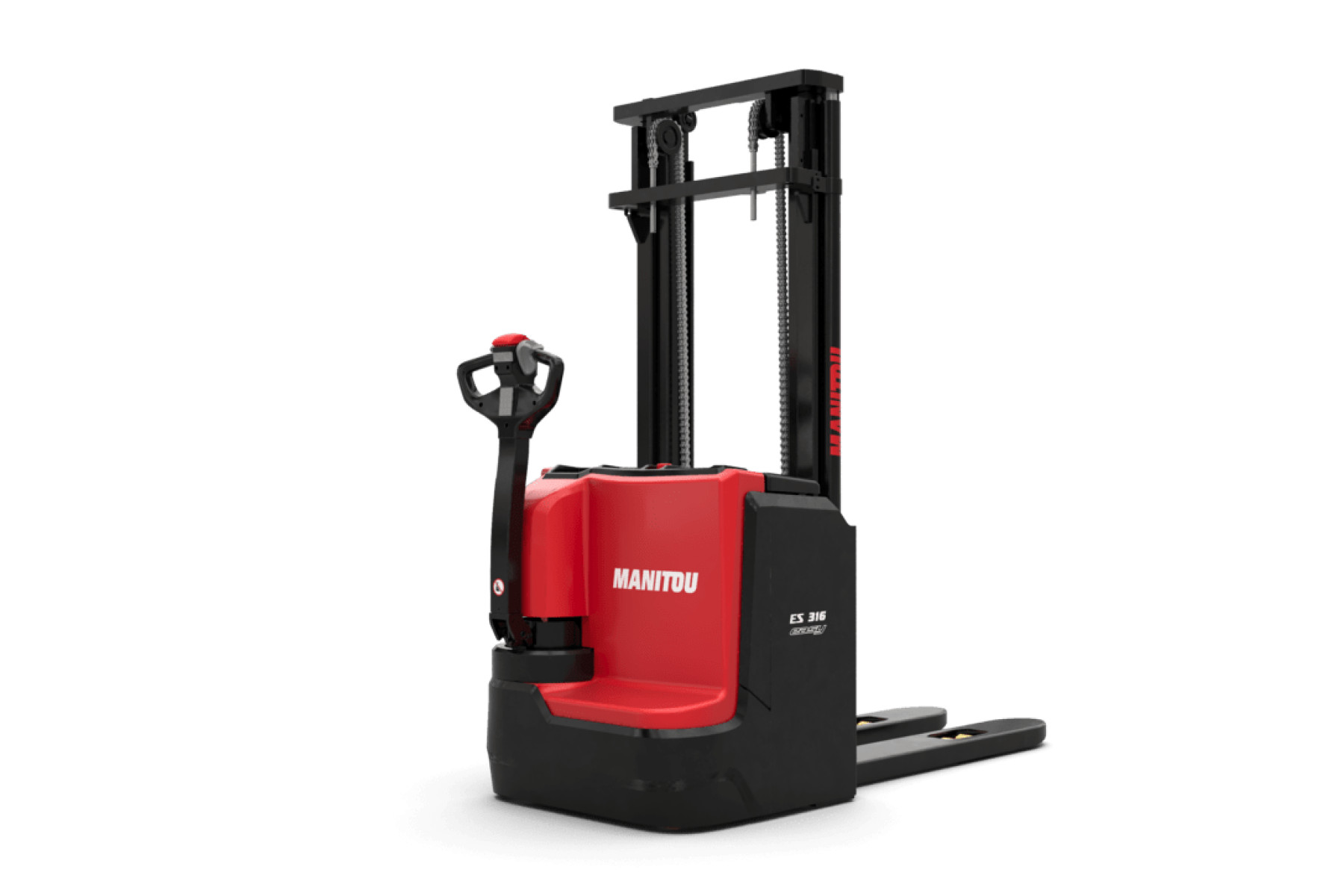

Warehousing ES 316 Easy
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
1 318 mm
Load distance, centre of drive axle to fork (low/raised) - Raised position
700 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)

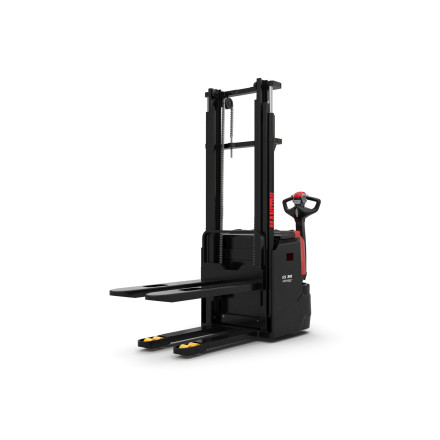

Product Specifications for ES 316 Easy
- TECHNICAL CHARACTERISTICS
- Model NameES 316 Easy
- Power sourceElectrical - Lithium
- Operator typeWalking alongside
- Load center of gravity600 mm
- Wheelbase1 318 mm
- Load distance, centre of drive axle to fork (low/raised) - Raised position700 mm
- Load distance, centre of drive axle to fork (low/raised) - Low position700 mm
- Max. capacity1 600 kg
- WEIGHT
- Standard mast reference of the machineFLT 42
- Service weight1 040 kg
- Weight on front axle (laden)740 kg
- Weight on front axle (Unladen)700 kg
- Weight on rear axle (laden)1 900 kg
- Weight on rear axle (Unladen)340 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.790 mm
- Height tiller max.1 205 mm
- Height of wheel arms80 mm
- Fork height in low position90 mm
- Overall length1 934 mm
- Length to face of forks784 mm
- Overall width800 mm
- Forks section60 mm
- Forks width185 mm
- Forks length150 mm
- Fork carriage width680 mm
- Forks spread570 mm
- Ground clearance at centre of wheelbase25 mm
- Aisle Width for pallets 1000 x 1200 crossways2 420 mm
- Aisle width for 800 x 1200 pallet lengthways2 390 mm
- Turning radius1 550 mm
- WHEELS
- Tires typePolyurethane cushion
- Dimensions of front wheels250X80
- Size of drive wheels250x80
- Size of load wheels83x80
- Number of load wheels4
- Dimensions of rear wheels82X80
- Number of stabilizer wheels1
- Size of the stabilizer wheels140x55
- Number of front wheels2
- Number of rear wheels4
- Number of drive wheels1
- Front wheel gauge510 mm
- Rear wheel gauge385 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,18 m/s
- Lifting speed (unladen)0,4 m/s
- Lowering speed (laden)0,45 m/s
- Lowering speed (unladen)0,4 m/s
- Max Gradeability (laden)6 %
- Max Gradeability (unladen)16 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min2,2 kW
- Lift motor rating at S3 15%4,2 kW
- BATTERY
- Battery capacity105 Ah
- Battery voltage48 V
- Battery weight (+/- 5%)65 kg

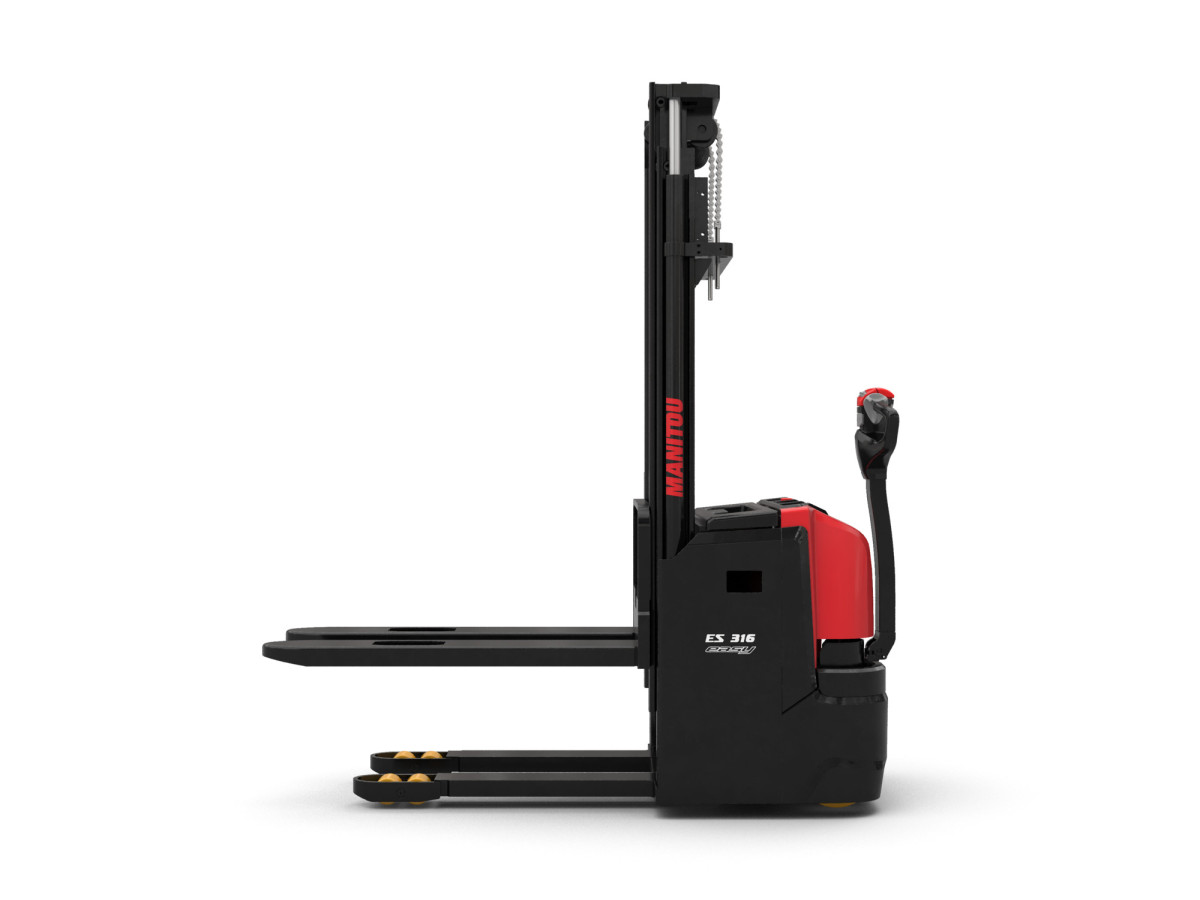

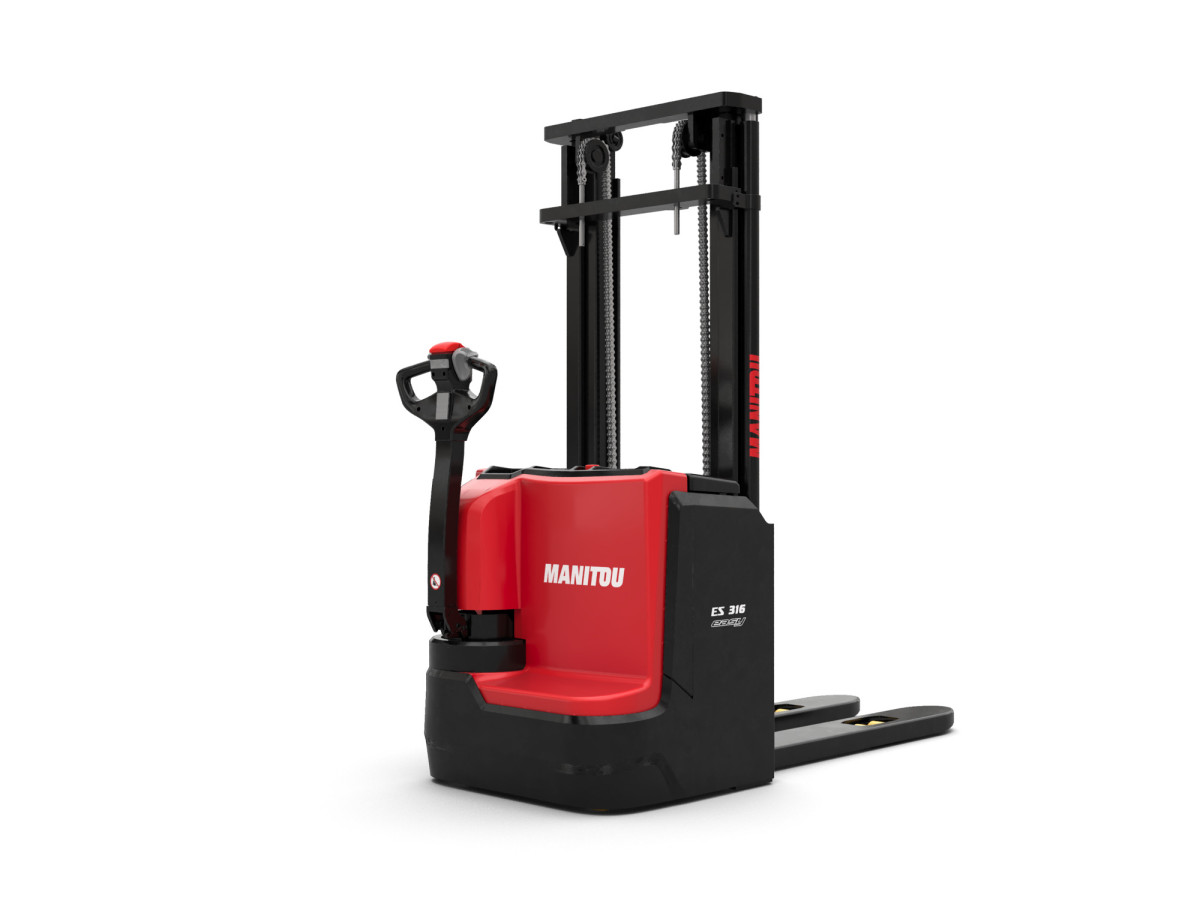

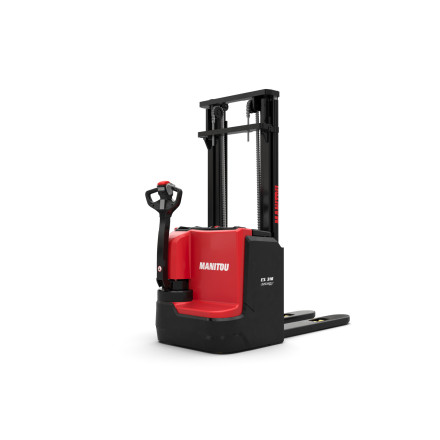

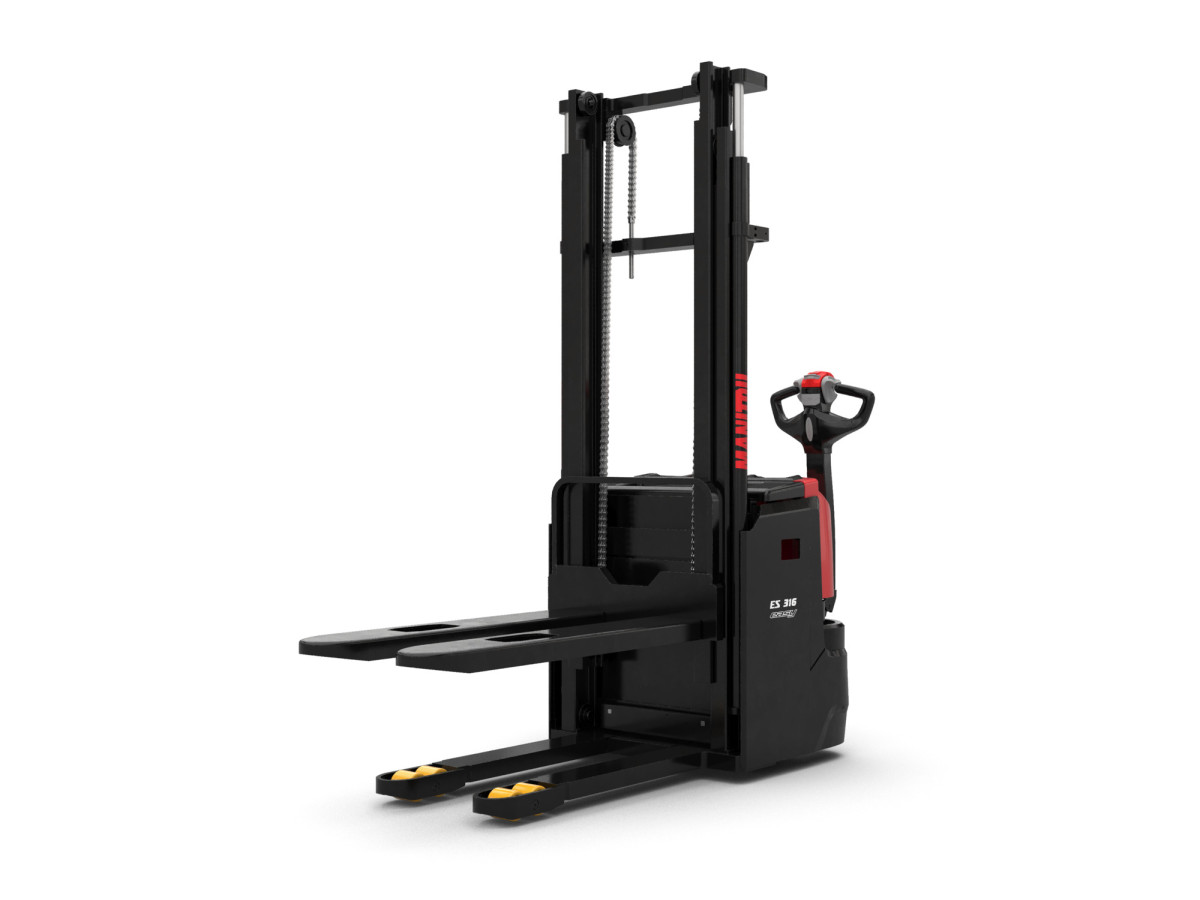

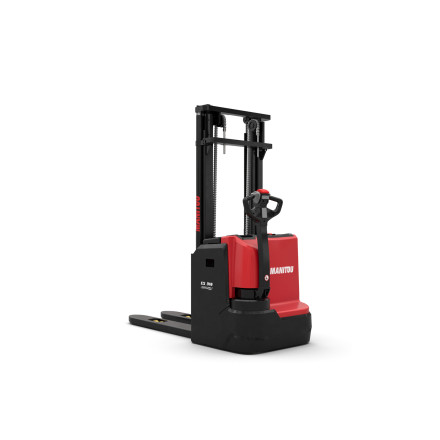

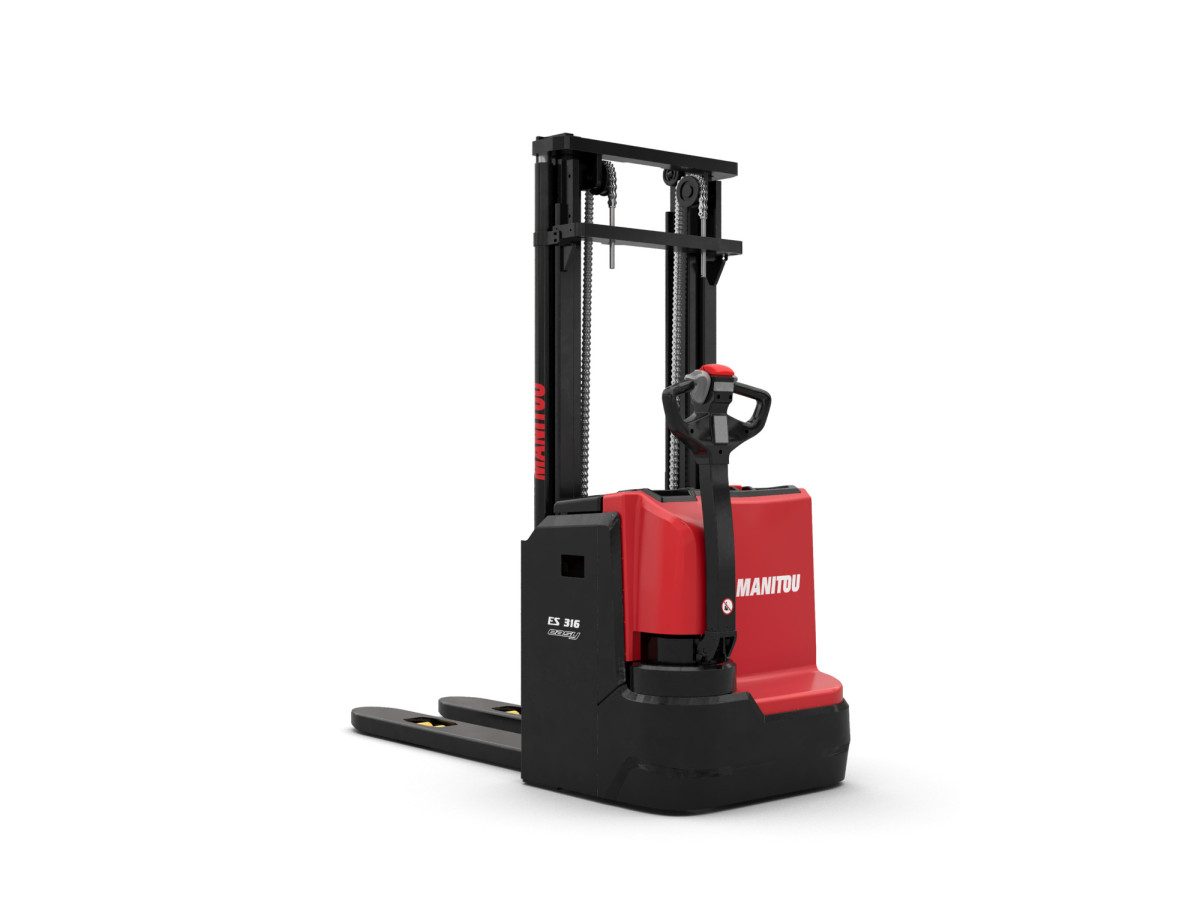

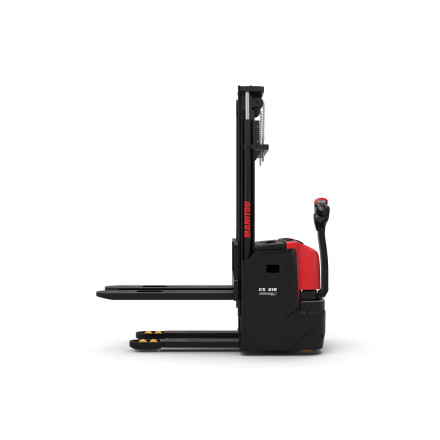

Media Gallery
