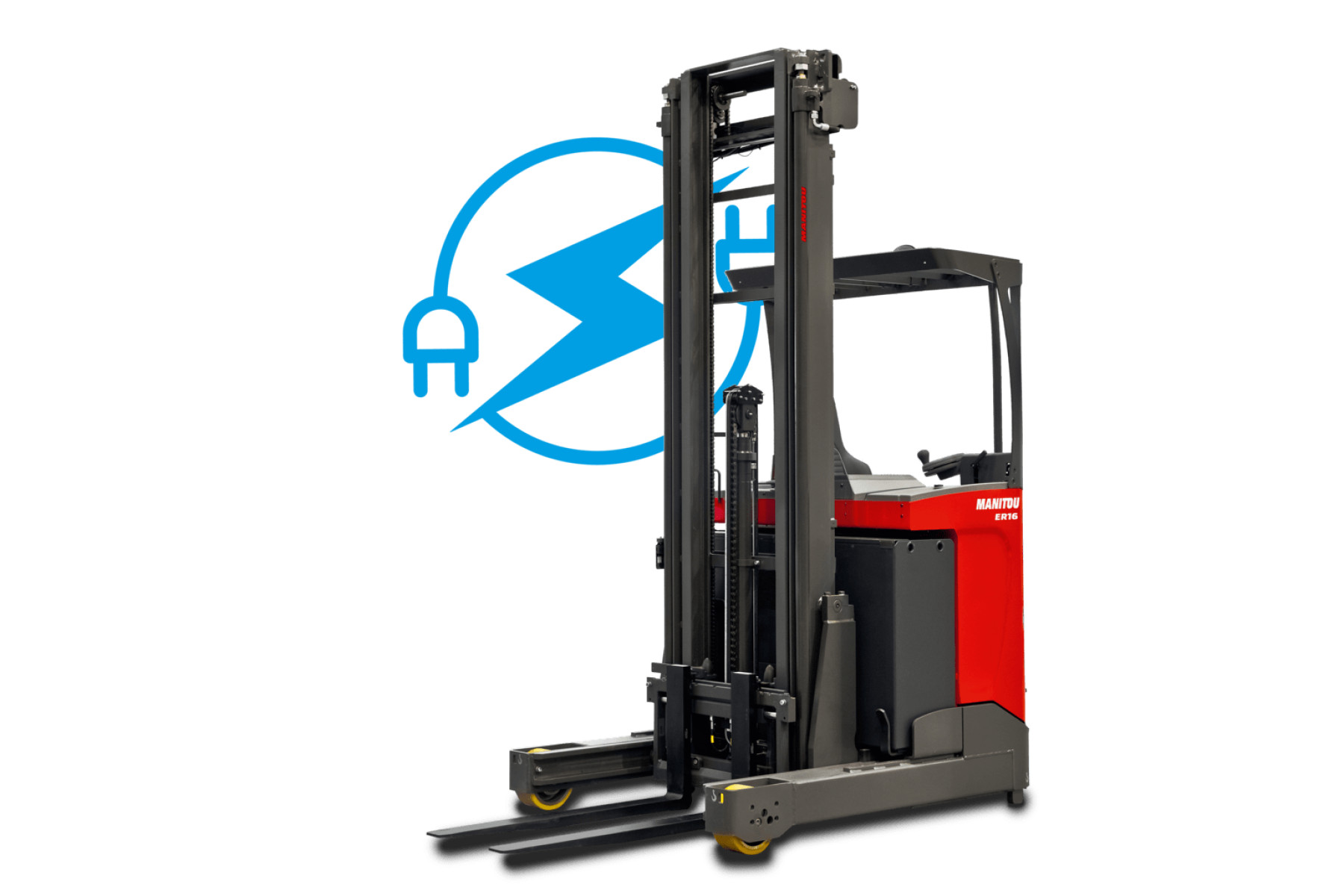

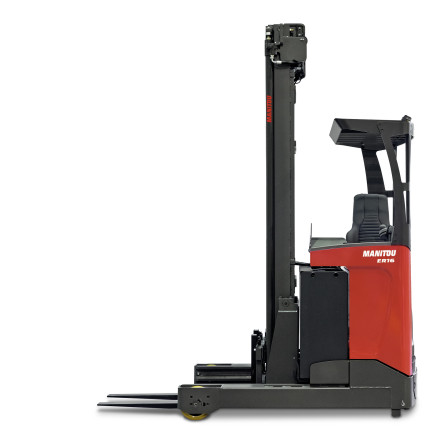

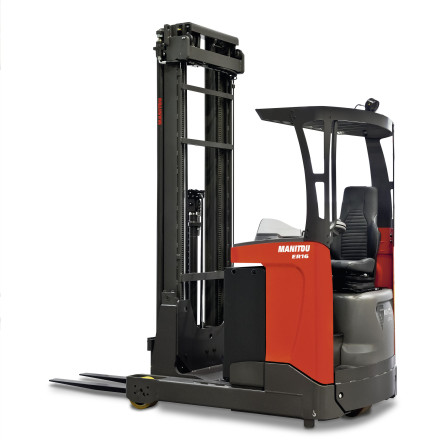

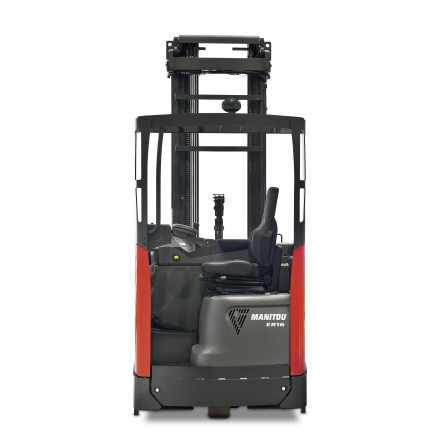

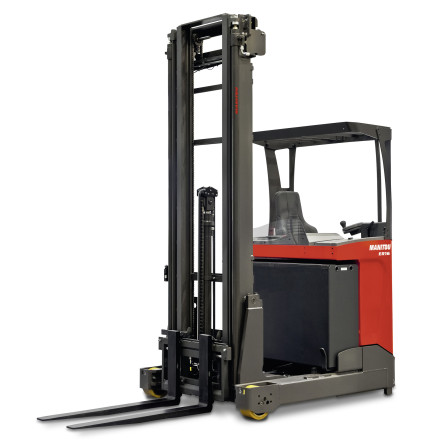

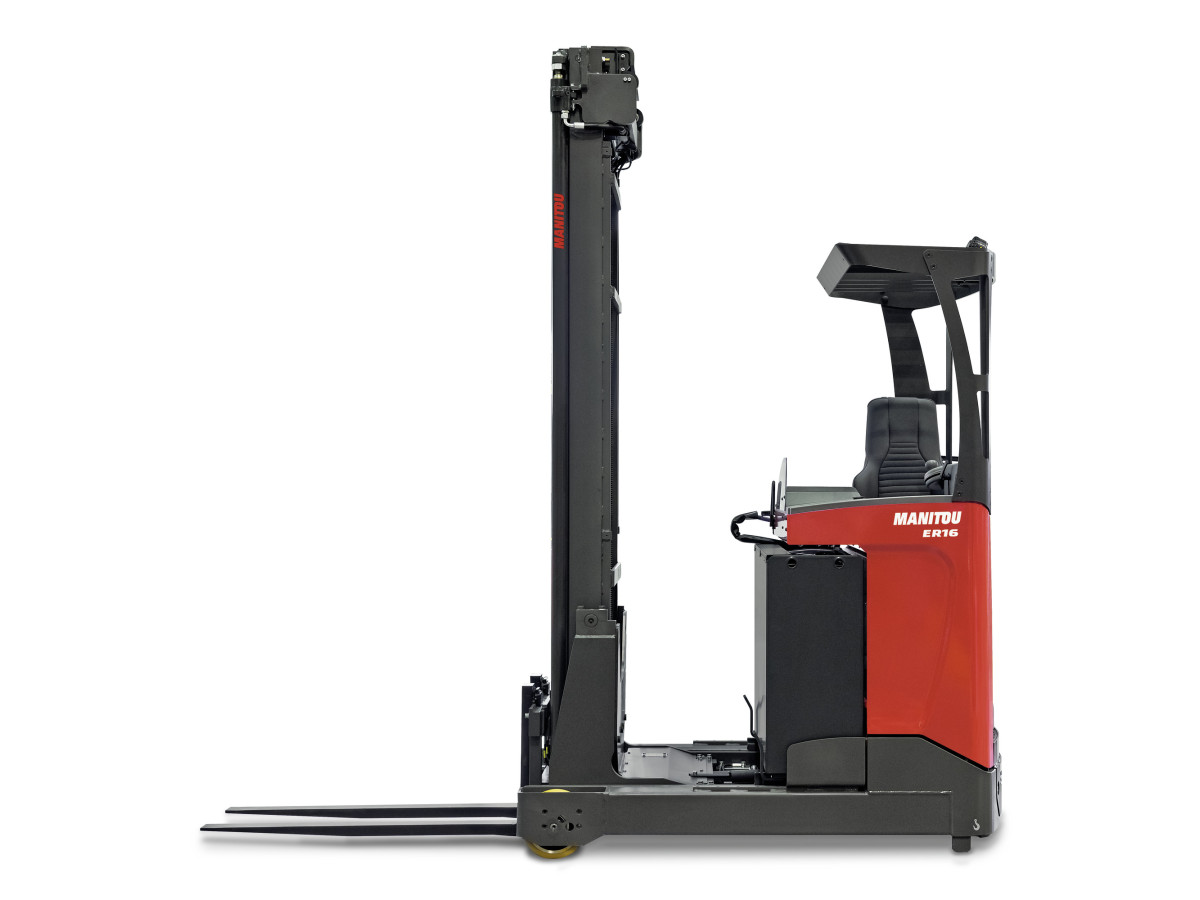

Product Specifications for ER 20
- TECHNICAL CHARACTERISTICS
- Model NameER 20
- Power sourceElectrical - Lead
- Operator typeSeated
- Load center of gravity600 mm
- Wheelbase1 530 mm
- Load distance, centre of drive axle to fork441 mm
- Max. capacity2 000 kg
- WEIGHT
- Service weight3 740 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 205 mm
- Seat height/stand height1 077 mm
- Height of wheel arms235 mm
- Overall length2 460 mm
- Length to face of forks1 310 mm
- Overall width1 270 mm
- Forks section40 mm
- Forks width100 mm
- Forks length1 150 mm
- Fork carriage ISO 2328 (class/form) A/B2A
- Width over forks min.316 mm
- Width over forks max.697 mm
- Distance between wheel arms/loading surfaces903 mm
- Ground clearance below mast71 mm
- Ground clearance at centre of wheelbase70 mm
- Aisle width for 1000 x 1200 pallet lengthways2 770 mm
- Aisle width for 800 x 1200 pallet lengthways2 808 mm
- Turning radius1 750 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels355 x 155
- Size of load wheels285 x 105
- Number of load wheels2
- Number of front wheels1
- Number of rear wheels2
- Number of drive wheels1
- Front wheel gauge0 mm
- Rear wheel gauge1 128 mm
- MASTS
- Max. lifting height8 950 mm
- PERFORMANCES
- Axle loading fork outreached laden (front)550 kg
- Axle loading fork outreached laden (rear)5 190 kg
- Axle loading fork retracted laden (rear)2 040 kg
- Axle loading fork retracted laden (front)3 700 kg
- Travel speed (laden)14,3 km/h
- Travel speed (unladen)14,5 km/h
- Lifting speed (laden)0,37 m/s
- Lifting speed (unladen)0,63 m/s
- Lowering speed (laden)0,55 m/s
- Lowering speed (unladen)0,43 m/s
- Reach speed (with load)0,2 m/s
- Reach speed (without load)0,2 m/s
- Gradeability (laden)6,9 %
- Gradeability (unladen)10,2 %
- Service brakeElectric
- Energy consumption according to VDI cycle (kWh/h)5,3 kWh/h
- ENGINE
- Drive motor rating S2 60 min7,2 kW
- Lift motor rating at S3 15%15 kW
- HYDRAULICS
- Oil flow rate for attachments25 l/min
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05360,8 dB
- BATTERY
- Battery capacity620 Ah
- Battery voltage48 V
- Battery weight (+/- 5%)920 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43531 C

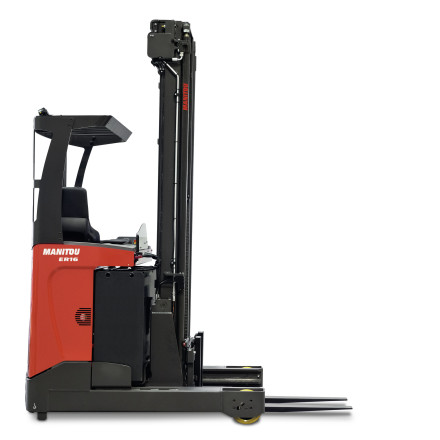

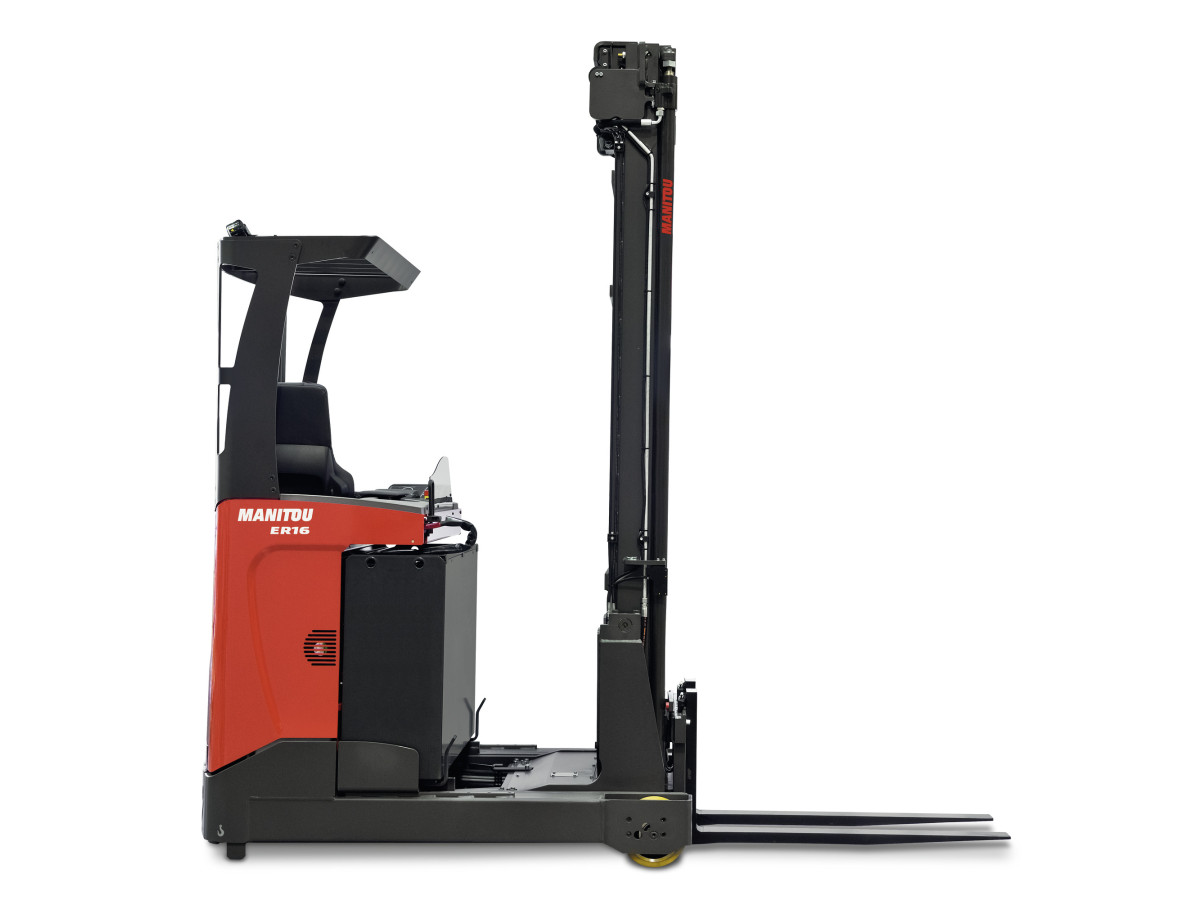

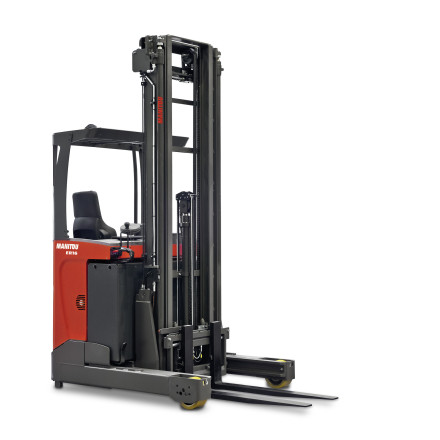

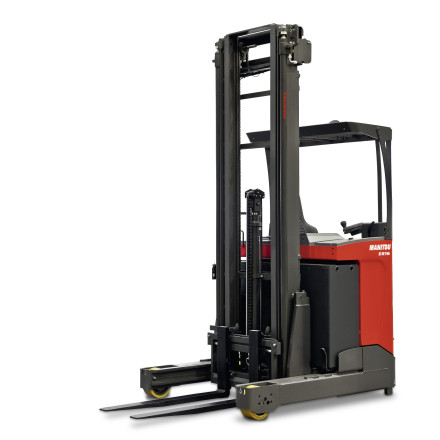

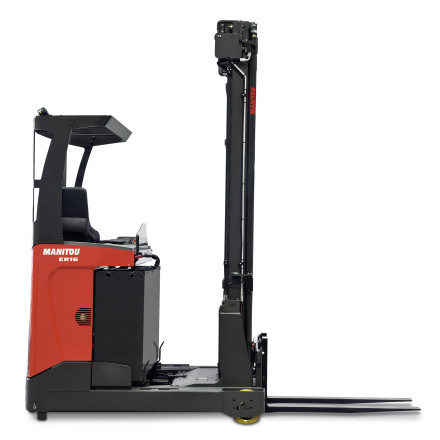

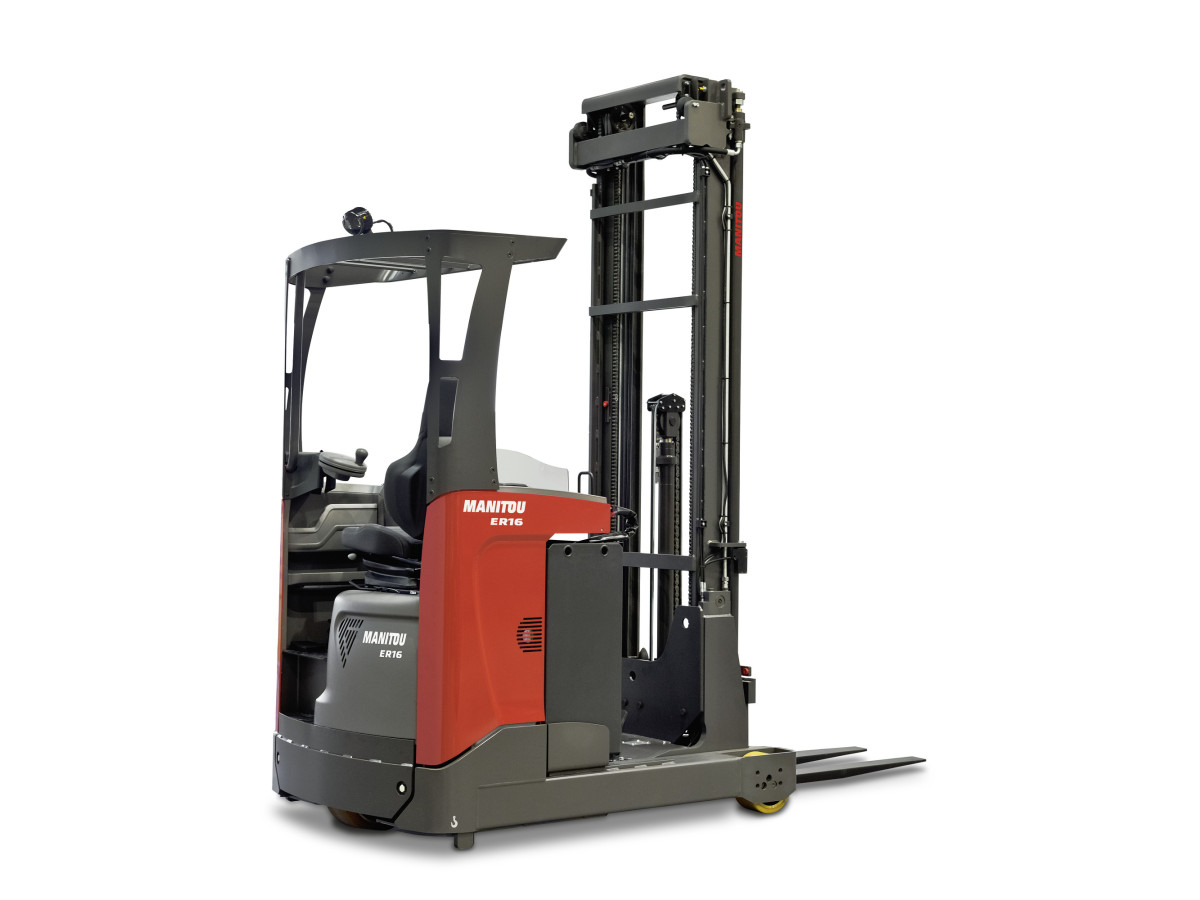

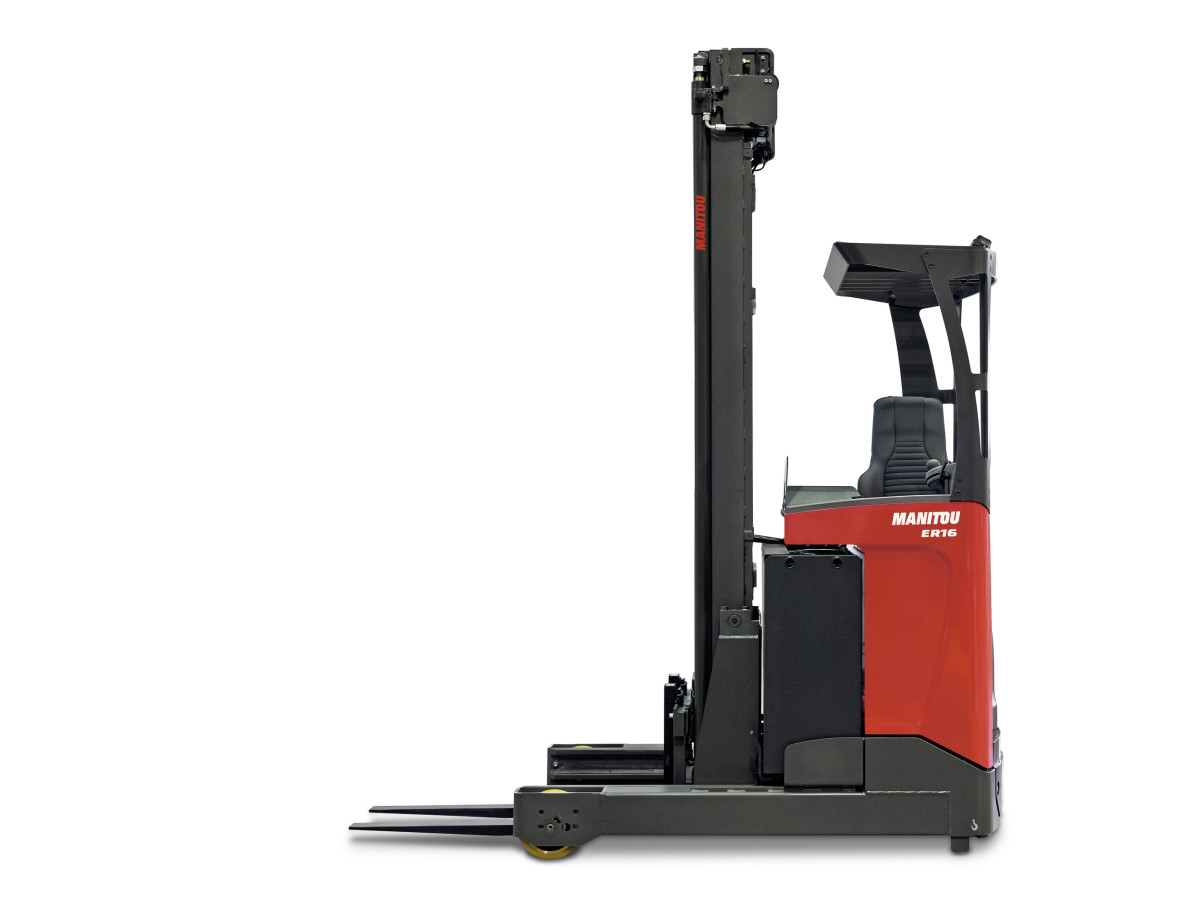

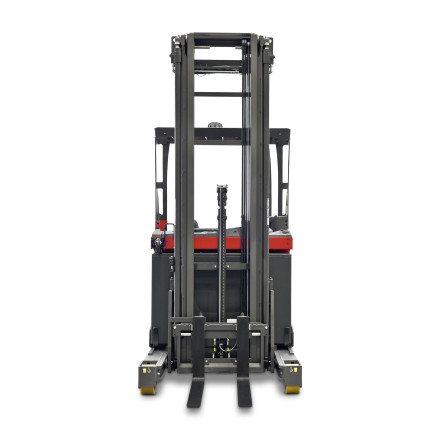

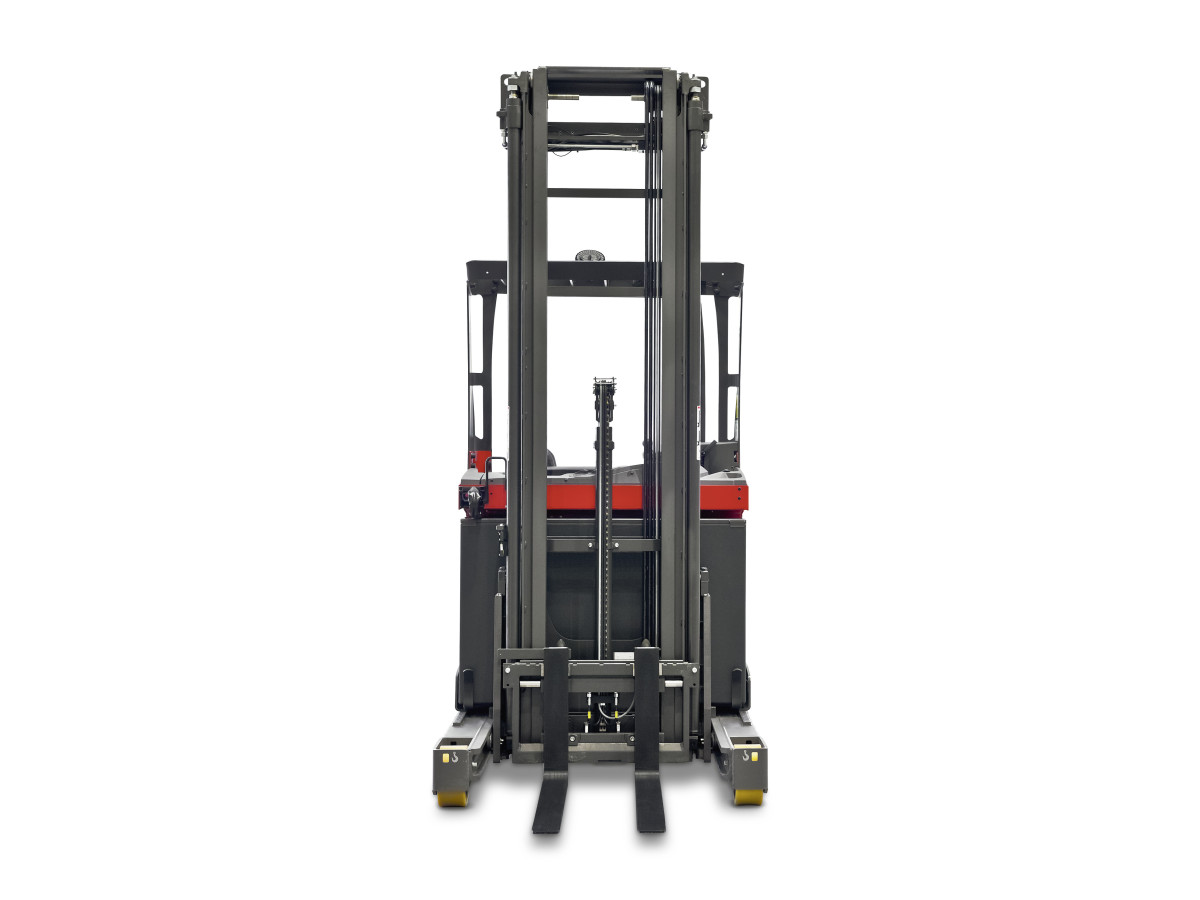

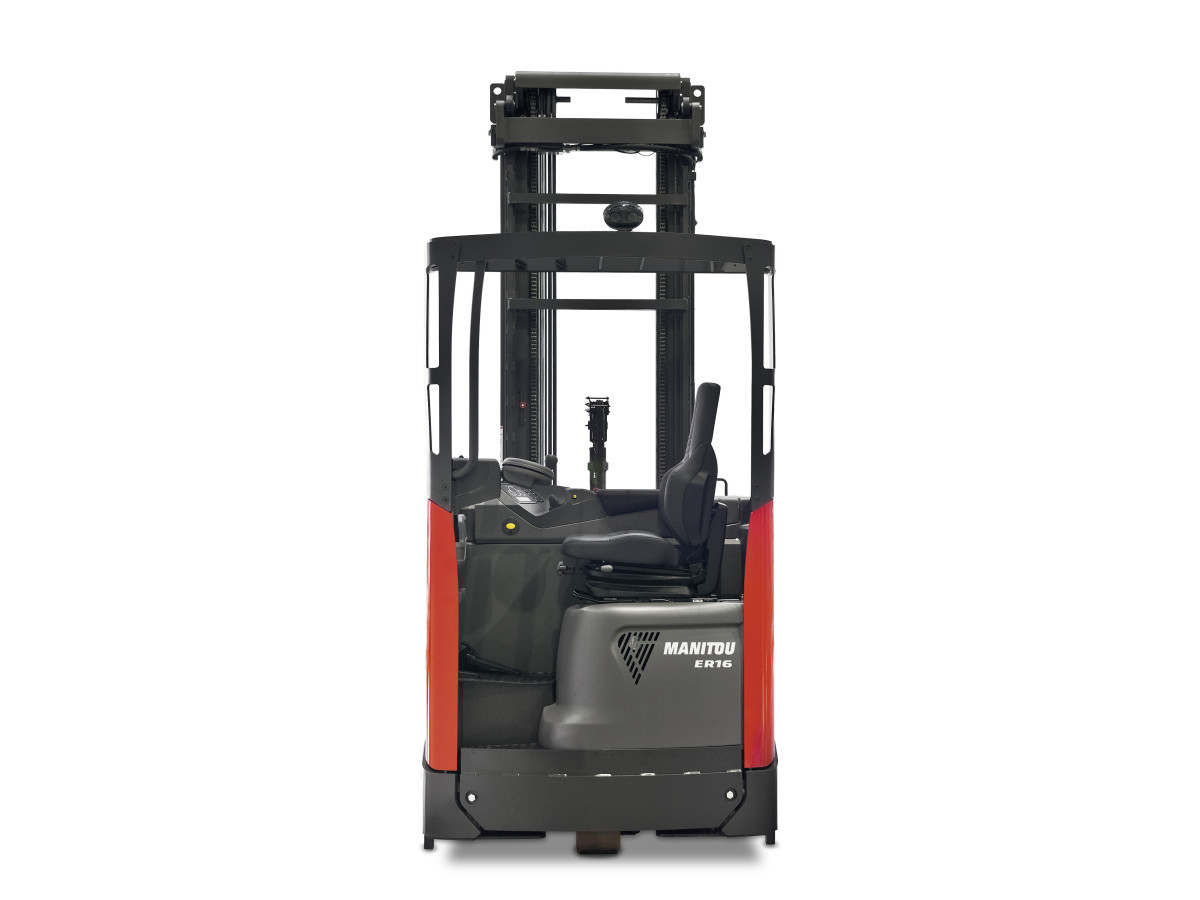

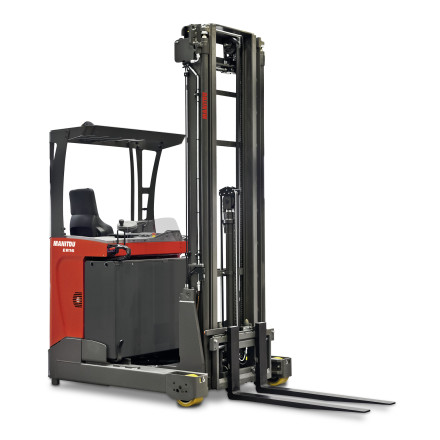

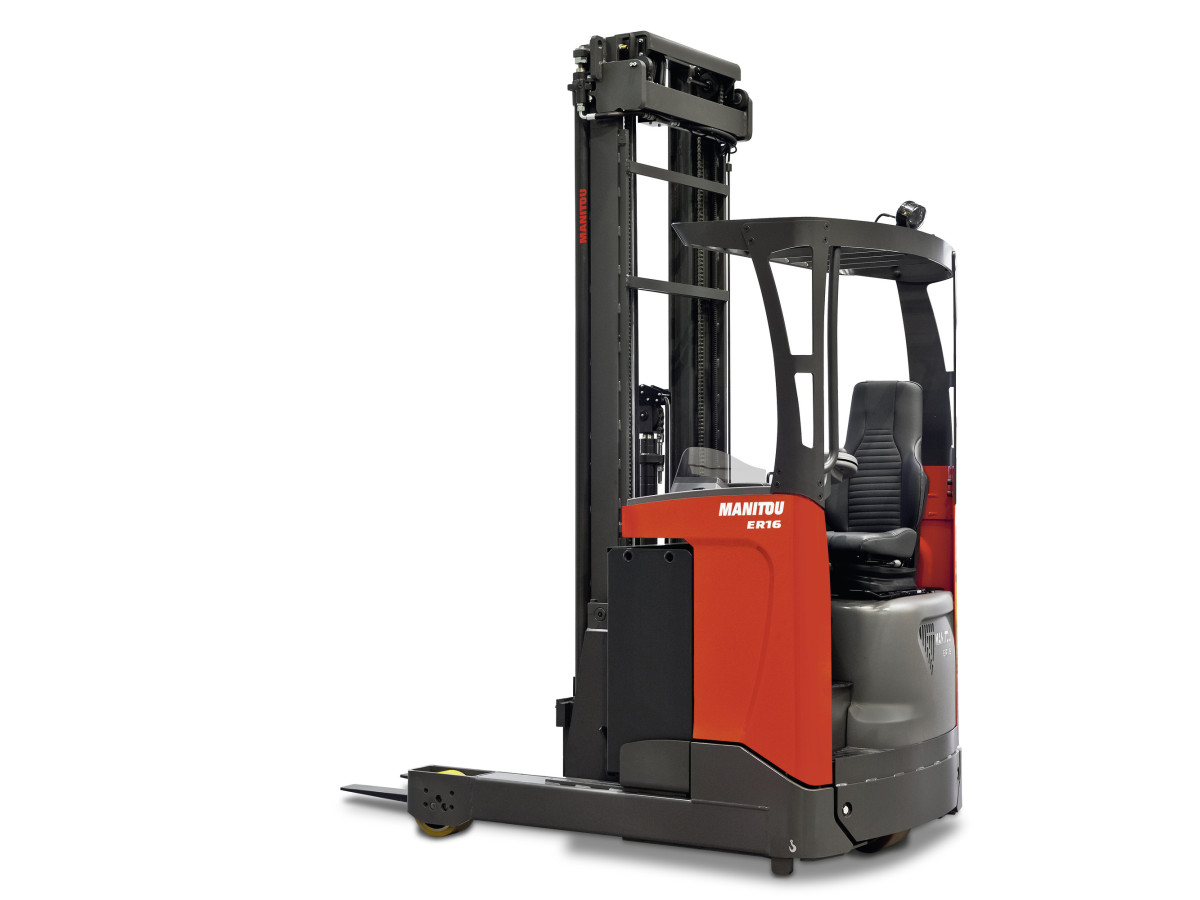

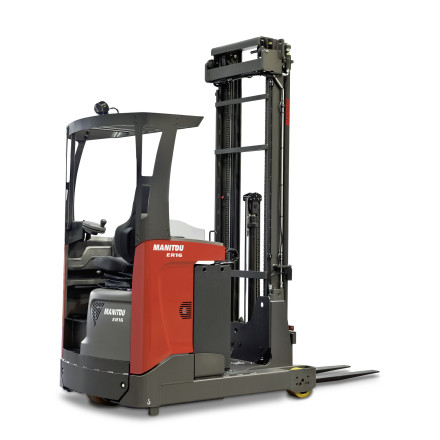

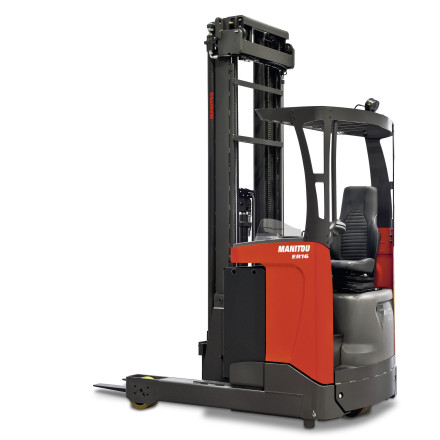

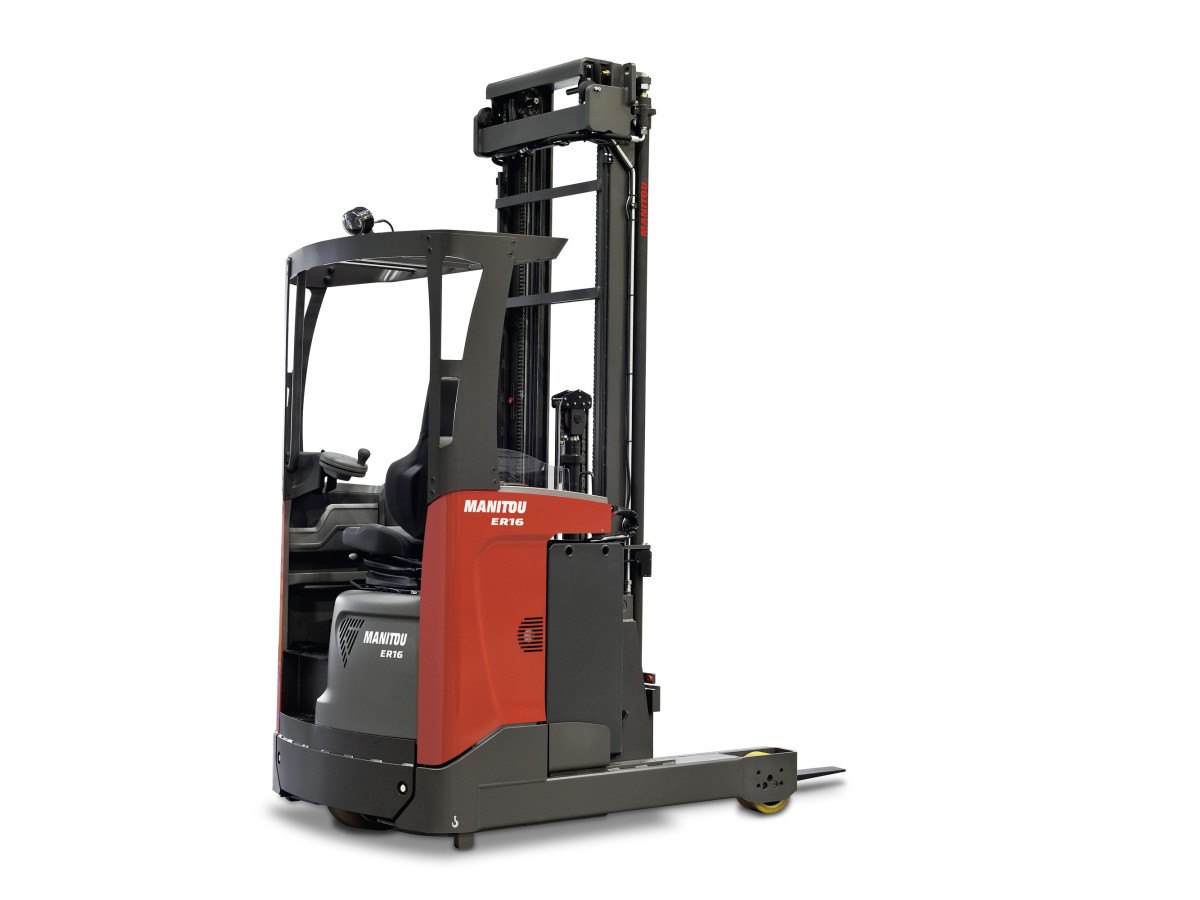

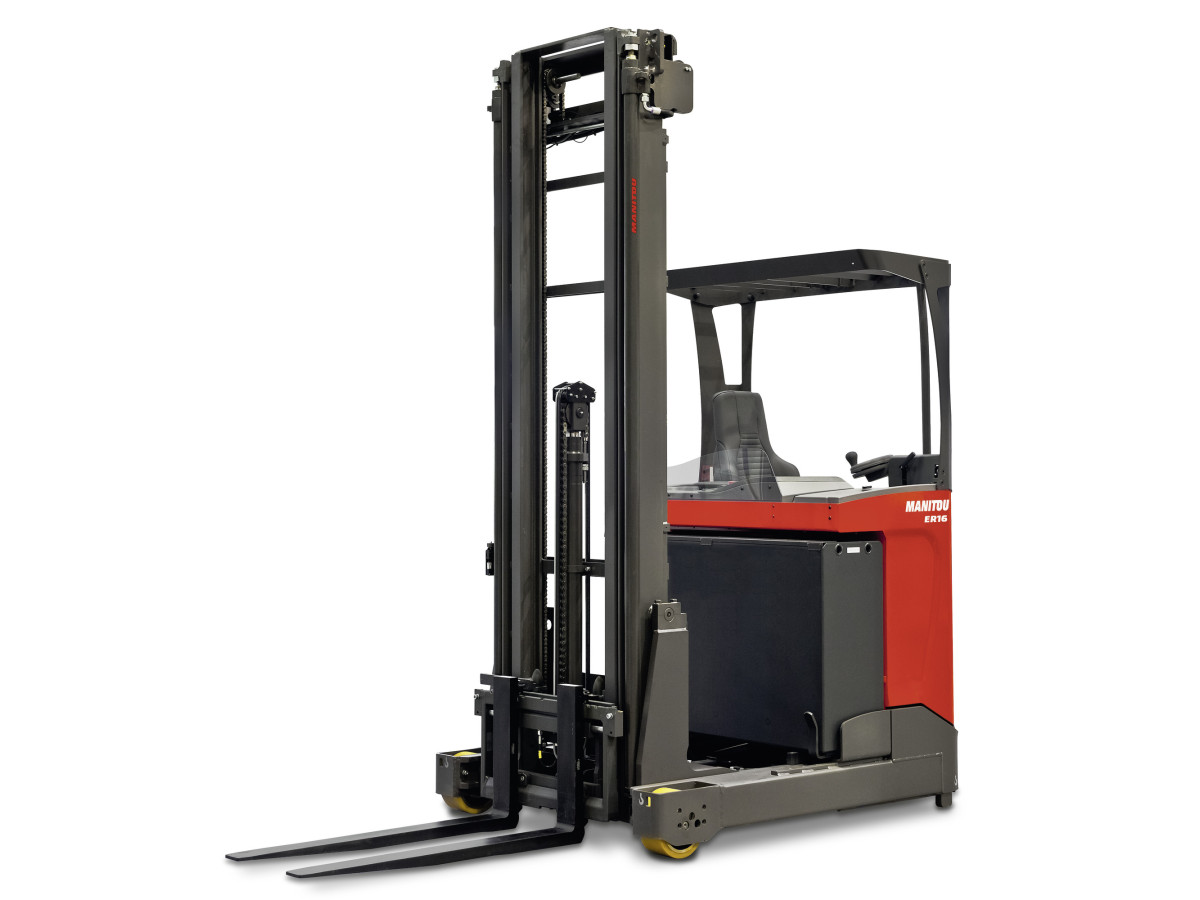

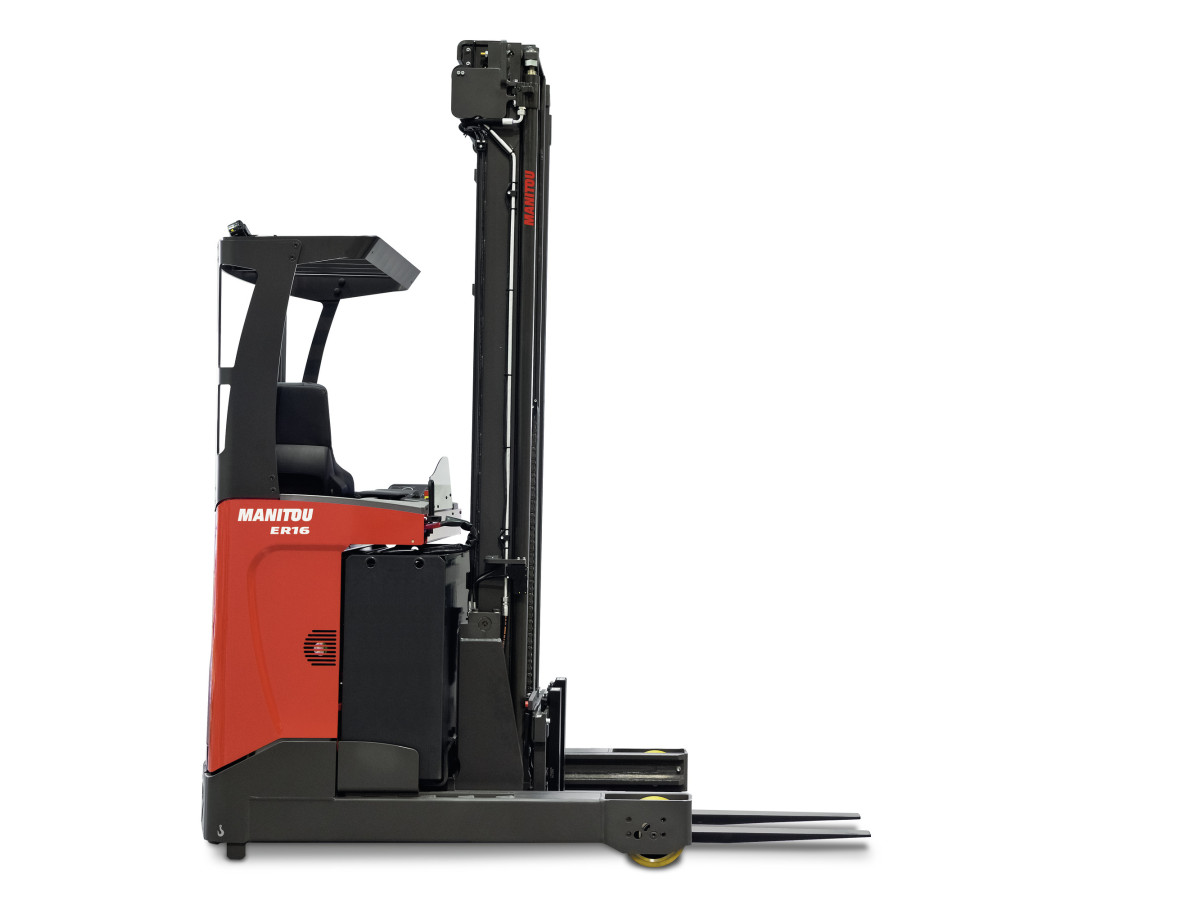

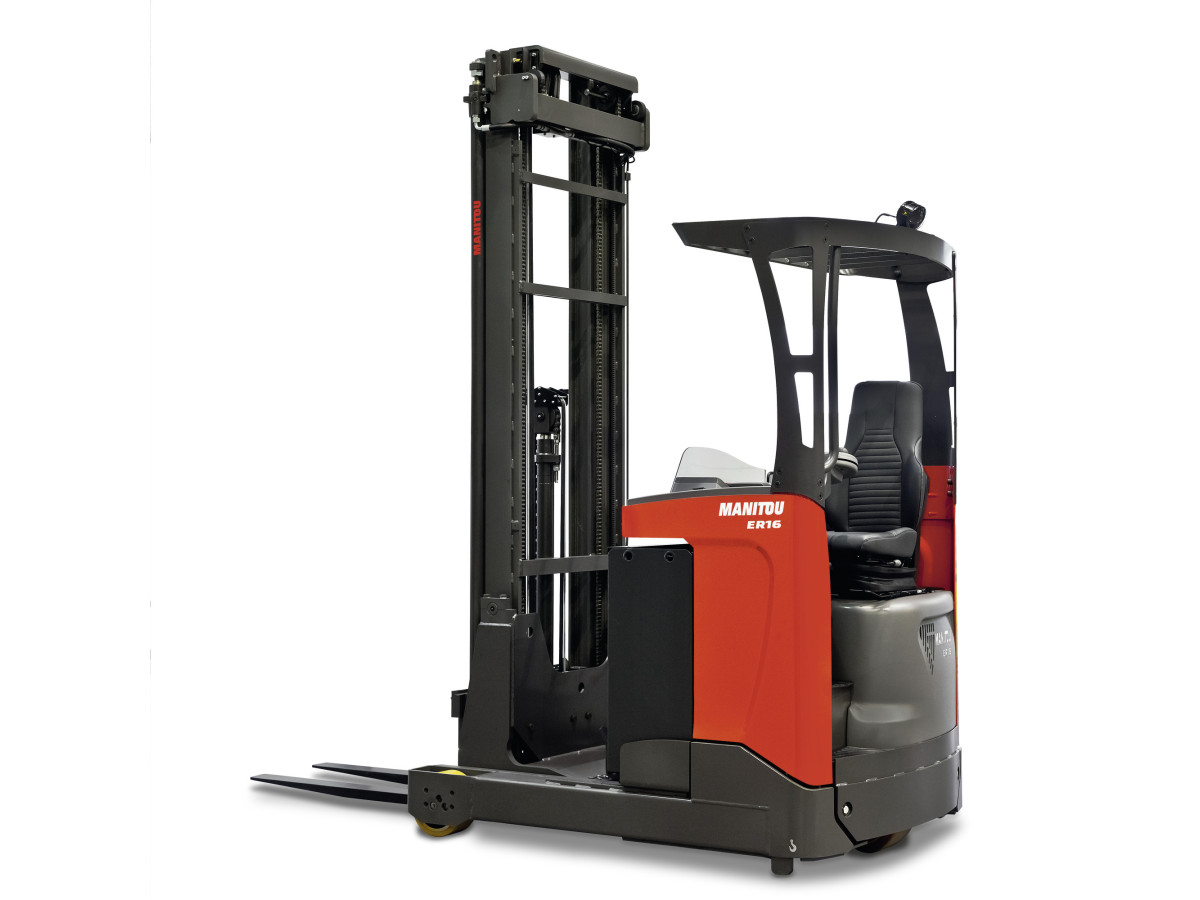

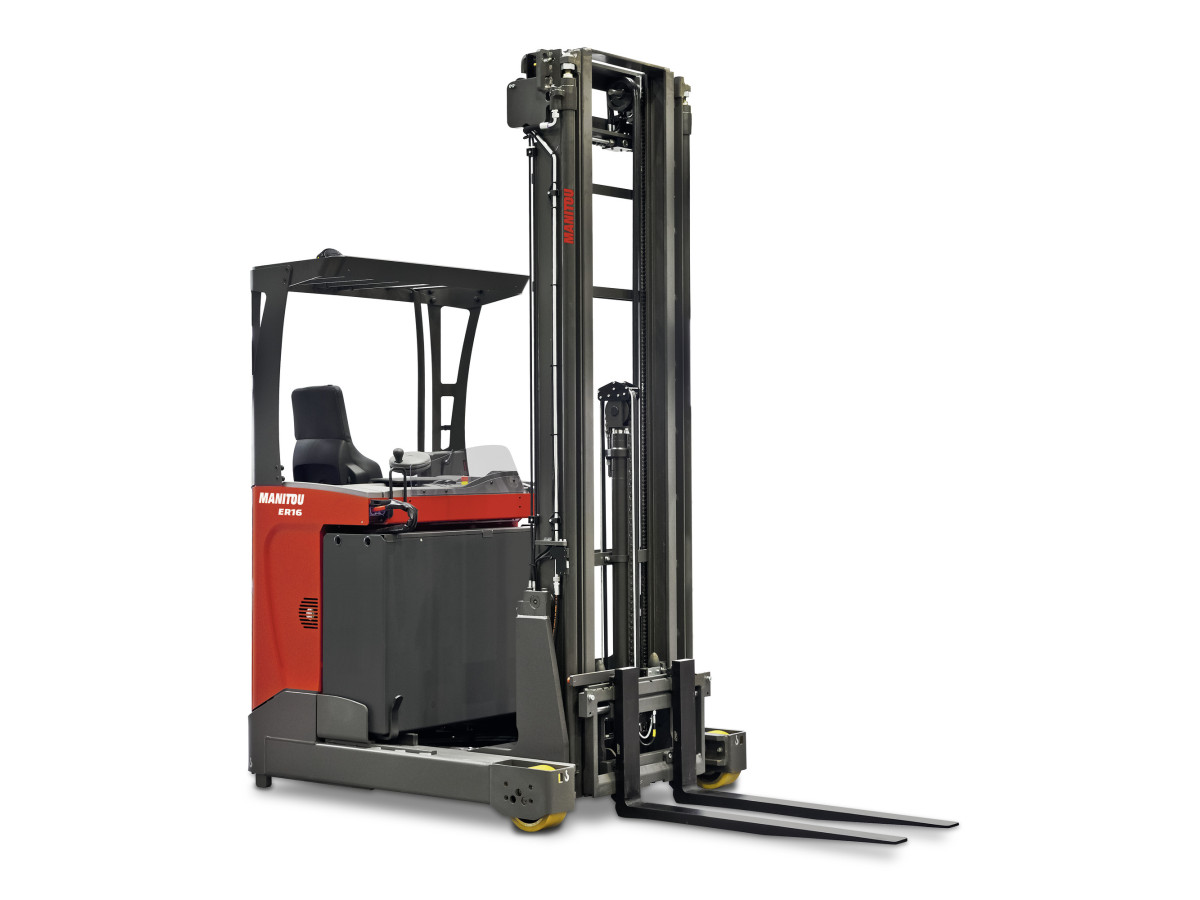

Media Gallery
