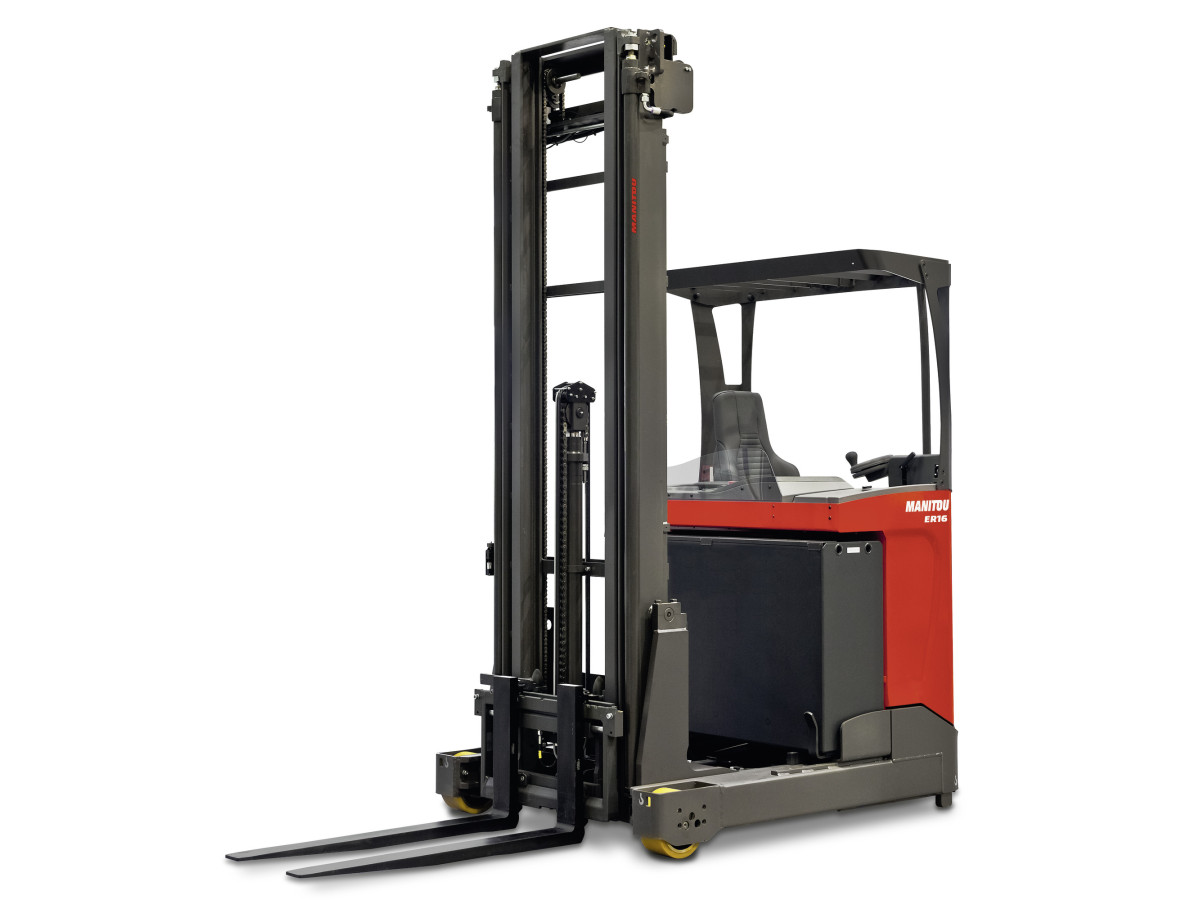

Warehousing ER 12
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
1 378 mm
Load distance, centre of drive axle to fork
335 mm
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)

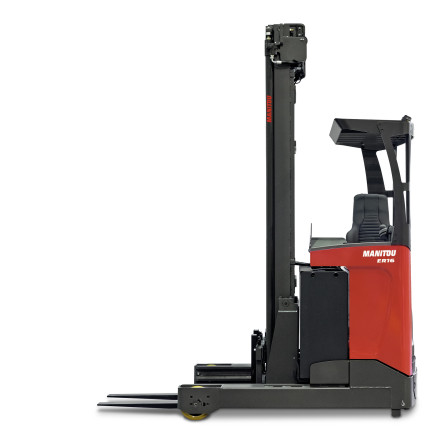

Product Specifications for ER 12
- TECHNICAL CHARACTERISTICS
- Model NameER 12
- Power sourceElectrical - Lead
- Operator typeSeated
- Load center of gravity600 mm
- Wheelbase1 378 mm
- Load distance, centre of drive axle to fork335 mm
- Max. capacity1 200 kg
- WEIGHT
- Service weight2 580 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 205 mm
- Seat height/stand height1 077 mm
- Height of wheel arms235 mm
- Overall length2 413 mm
- Length to face of forks1 263 mm
- Overall width1 120 mm
- Forks section40 mm
- Forks width100 mm
- Forks length1 150 mm
- Fork carriage ISO 2328 (class/form) A/B2A
- Width over forks min.316 mm
- Width over forks max.697 mm
- Distance between wheel arms/loading surfaces900 mm
- Ground clearance below mast70 mm
- Ground clearance at centre of wheelbase70 mm
- Aisle width for 1000 x 1200 pallet lengthways2 694 mm
- Aisle width for 800 x 1200 pallet lengthways2 751 mm
- Turning radius1 598 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels355 x 155
- Size of load wheels220 x 85
- Number of load wheels2
- Number of front wheels1
- Number of rear wheels2
- Number of drive wheels1
- Front wheel gauge0 mm
- Rear wheel gauge995 mm
- MASTS
- Max. lifting height6 800 mm
- PERFORMANCES
- Axle loading fork outreached laden (front)696 kg
- Axle loading fork outreached laden (rear)3 041 kg
- Axle loading fork retracted laden (rear)1 395 kg
- Axle loading fork retracted laden (front)2 315 kg
- Travel speed (laden)12,3 km/h
- Travel speed (unladen)12,5 km/h
- Lifting speed (laden)0,5 m/s
- Lifting speed (unladen)0,65 m/s
- Lowering speed (laden)0,58 m/s
- Lowering speed (unladen)0,55 m/s
- Reach speed (with load)0,2 m/s
- Reach speed (without load)0,2 m/s
- Gradeability (laden)7,5 %
- Gradeability (unladen)11,1 %
- Service brakeElectric
- Energy consumption according to VDI cycle (kWh/h)5,1 kWh/h
- ENGINE
- Drive motor rating S2 60 min5,9 kW
- Lift motor rating at S3 15%11 kW
- HYDRAULICS
- Oil flow rate for attachments25 l/min
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05357,4 dB
- BATTERY
- Battery capacity310 Ah
- Battery voltage48 V
- Battery weight (+/- 5%)730 kg
- Battery according to DIN 43531/35/36 A, B, CDIN43531 B

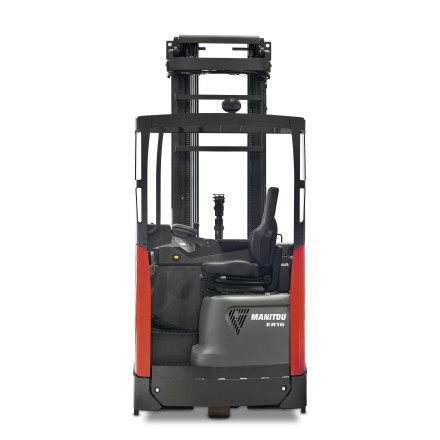

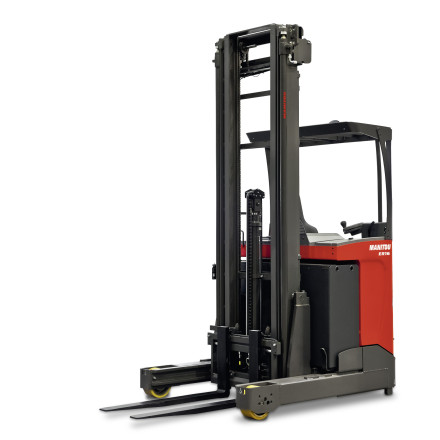

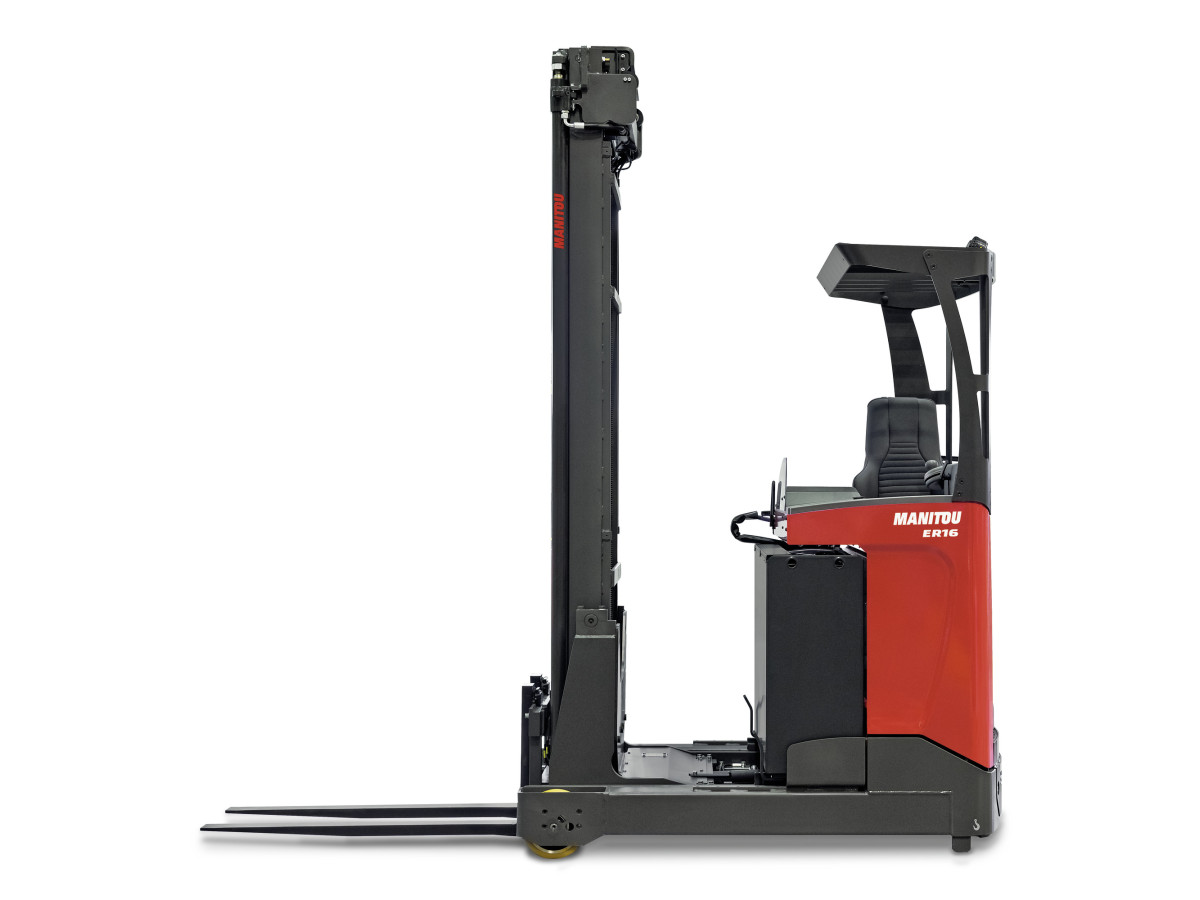

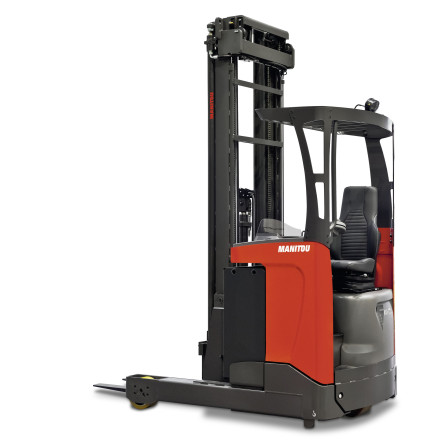

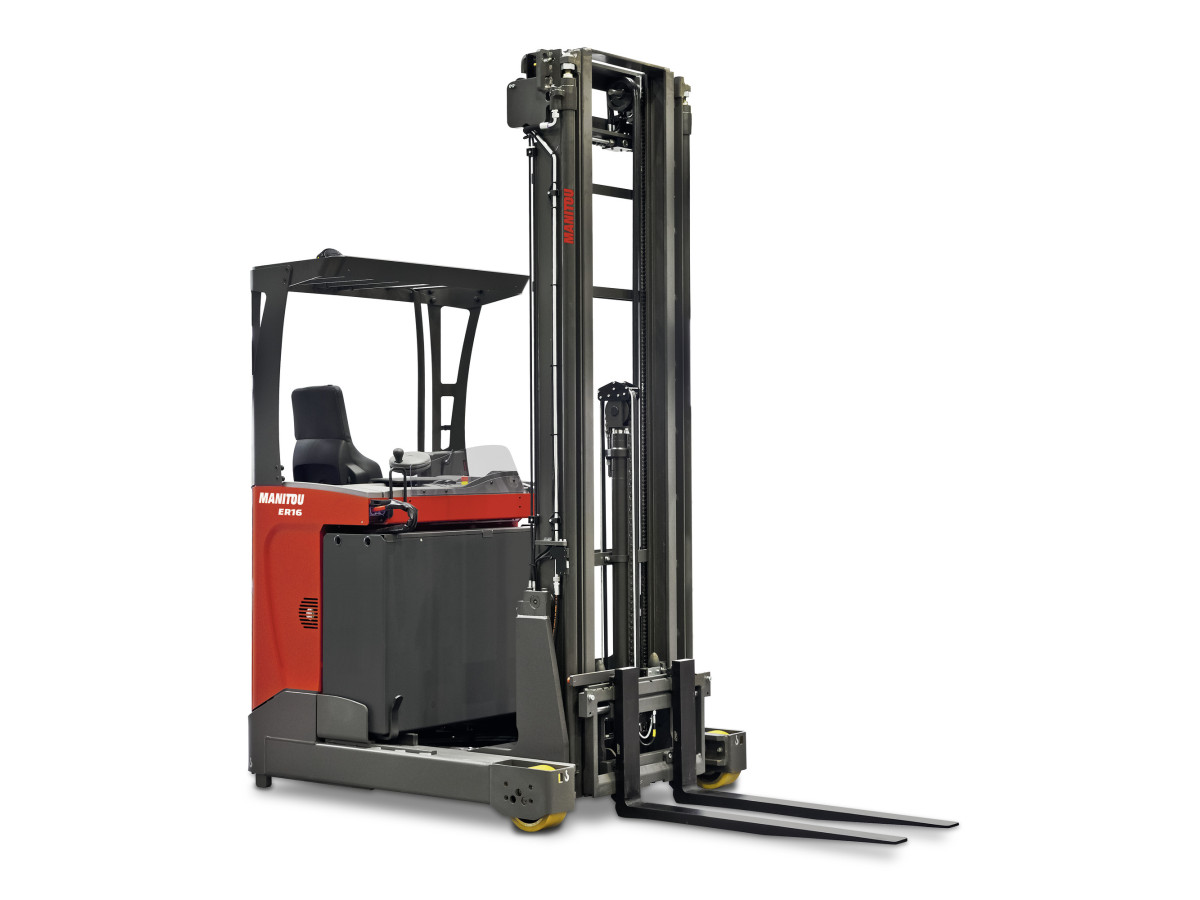

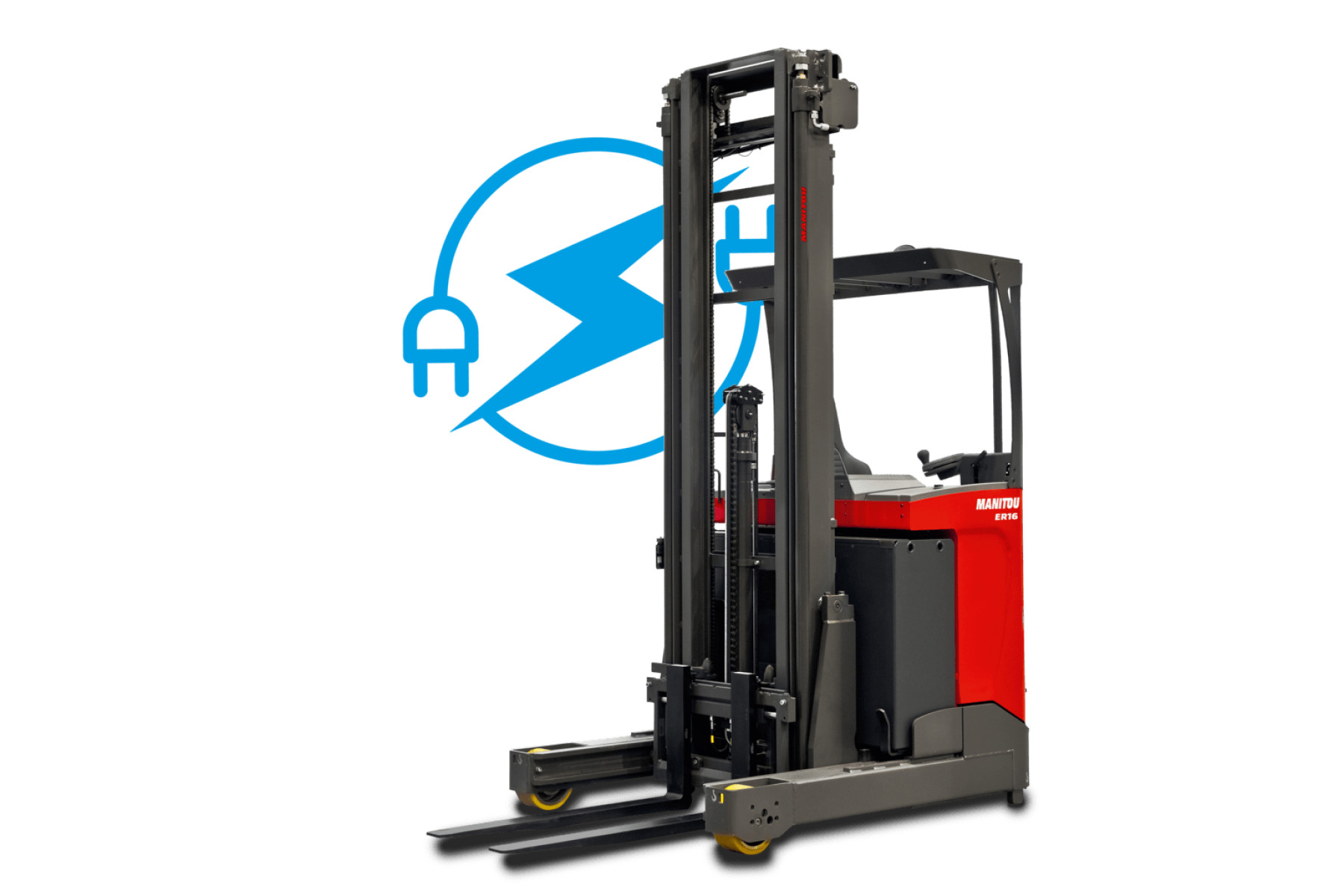

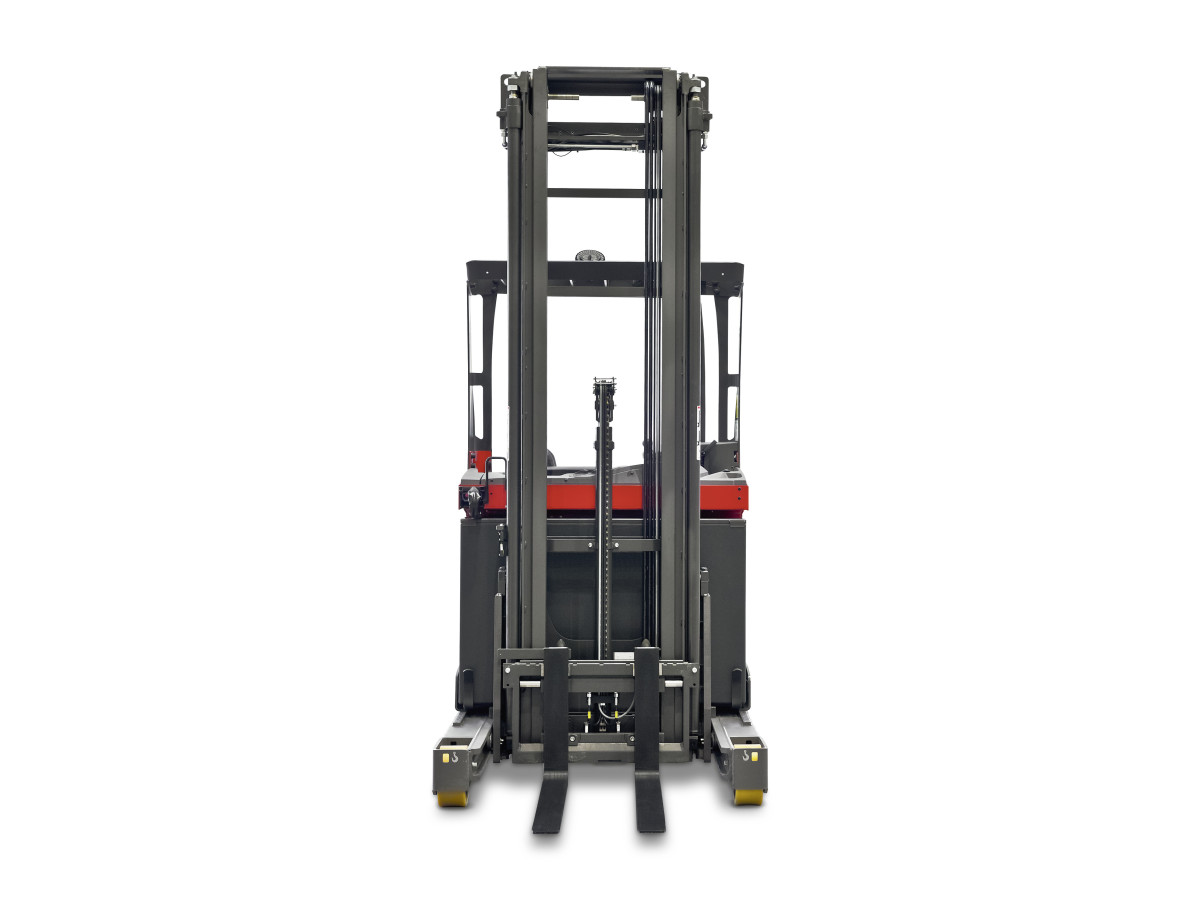

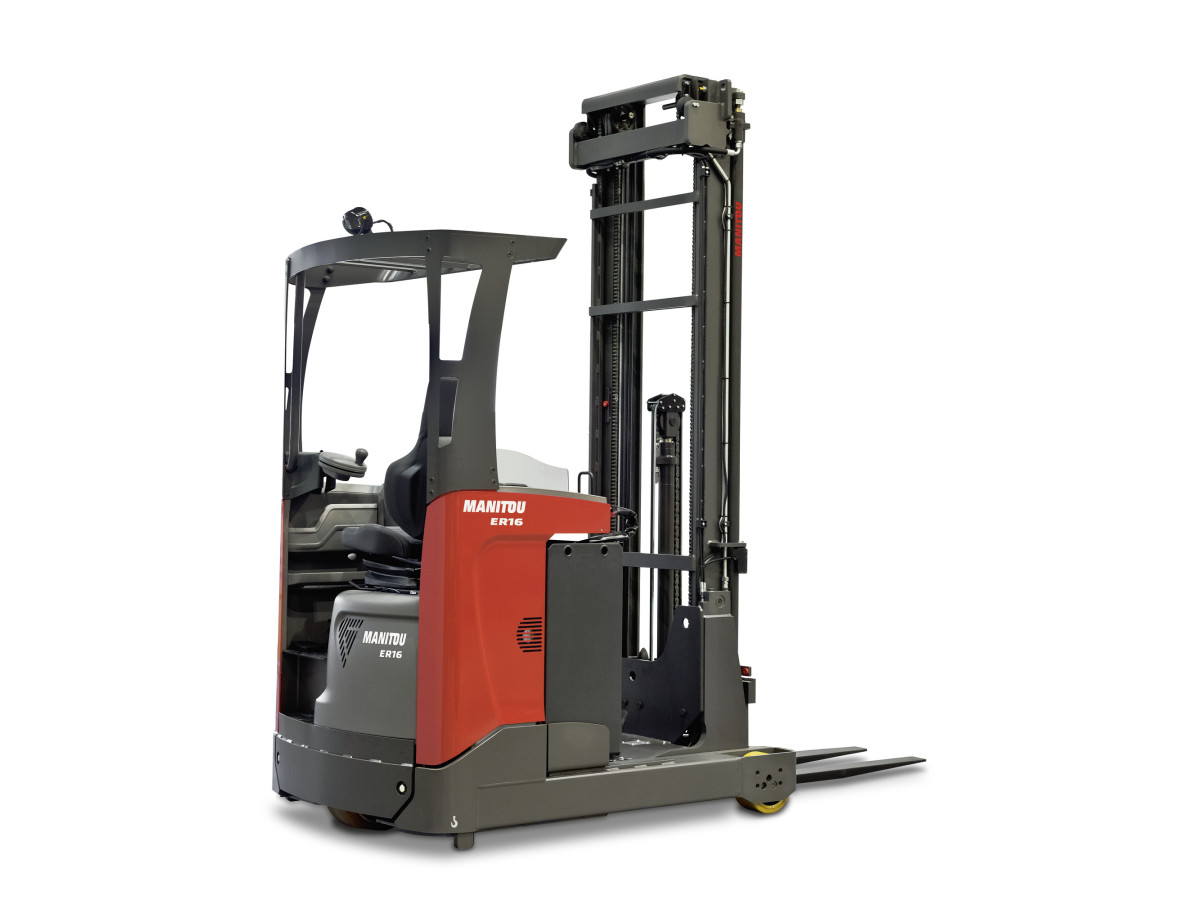

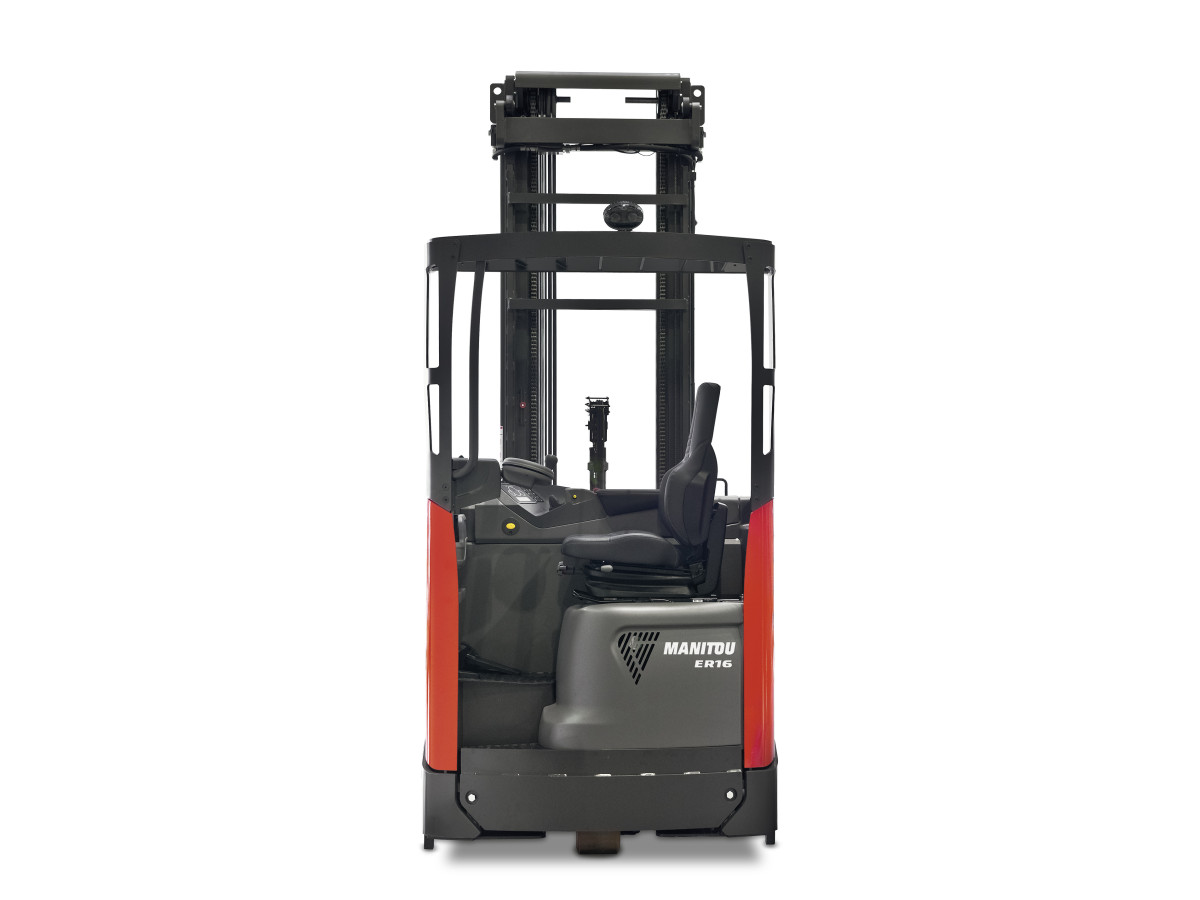

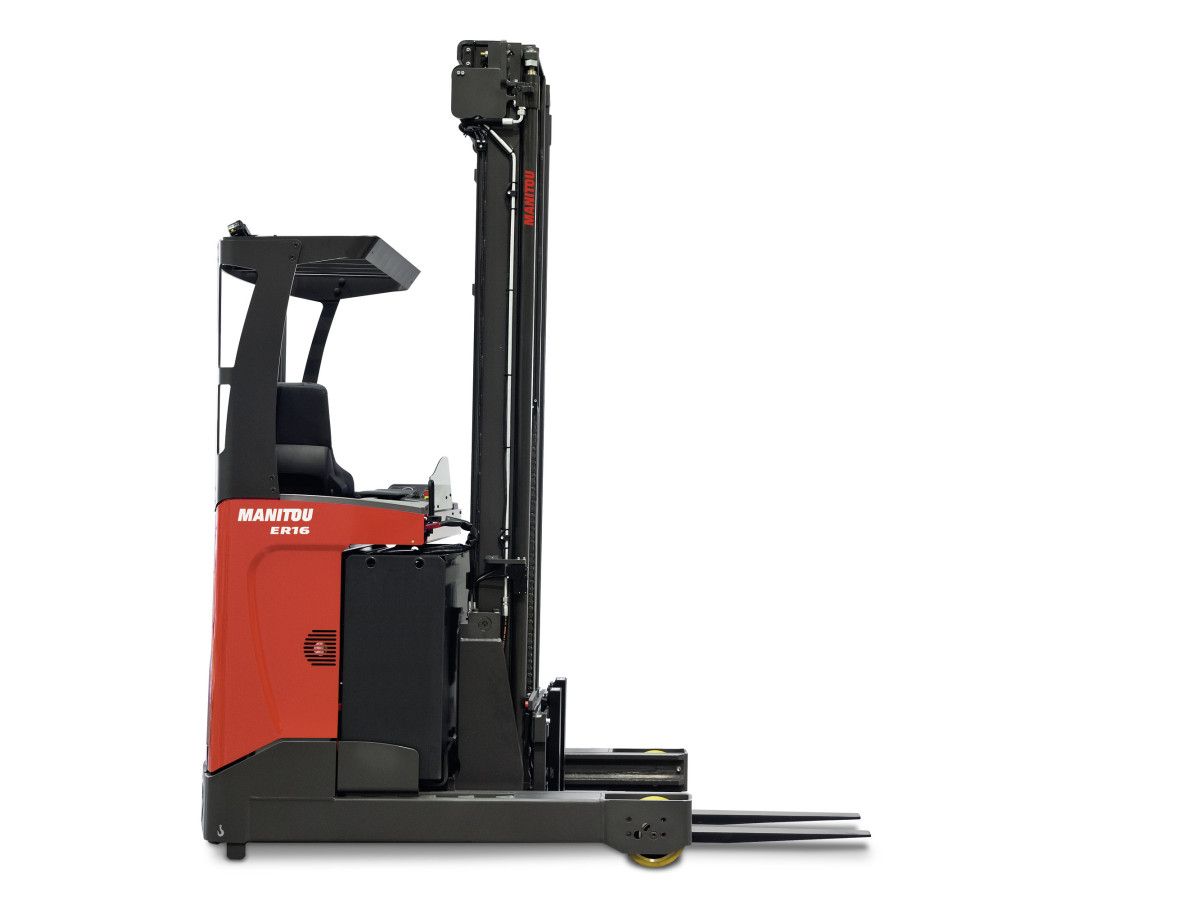

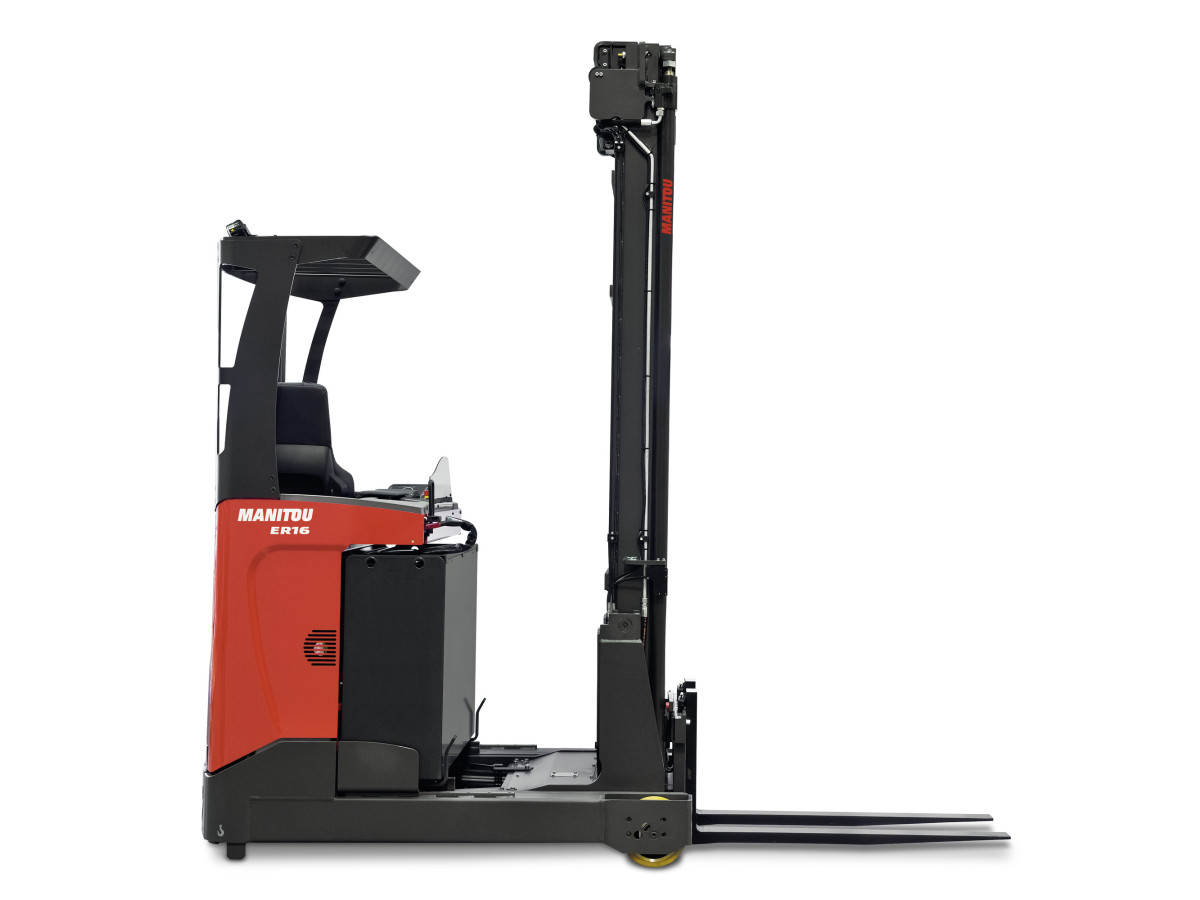

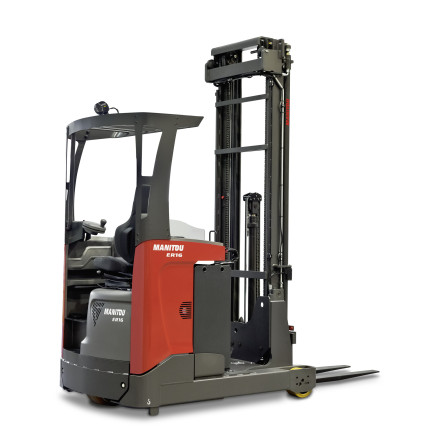

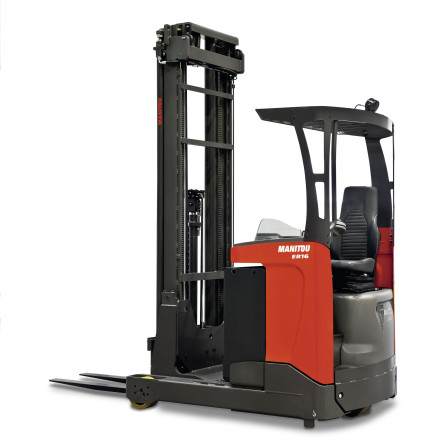

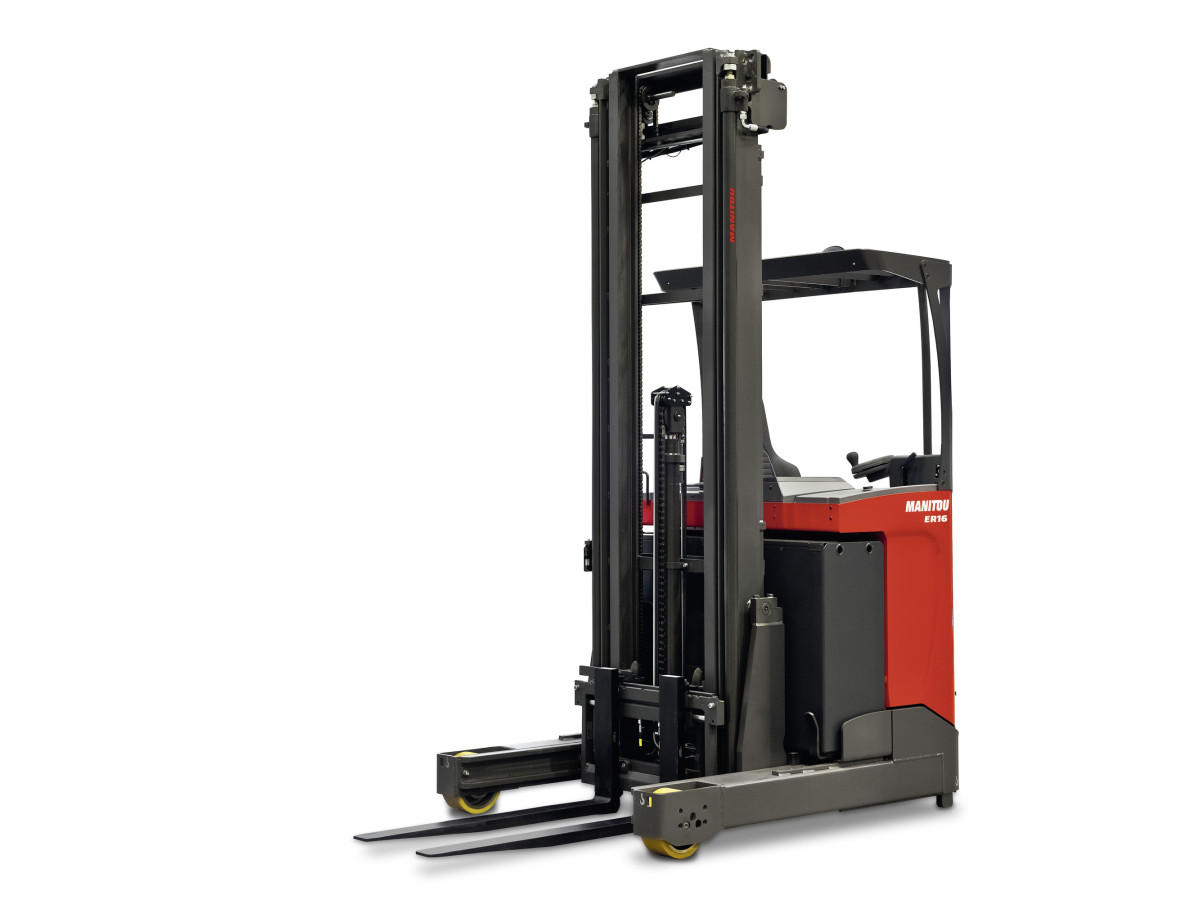

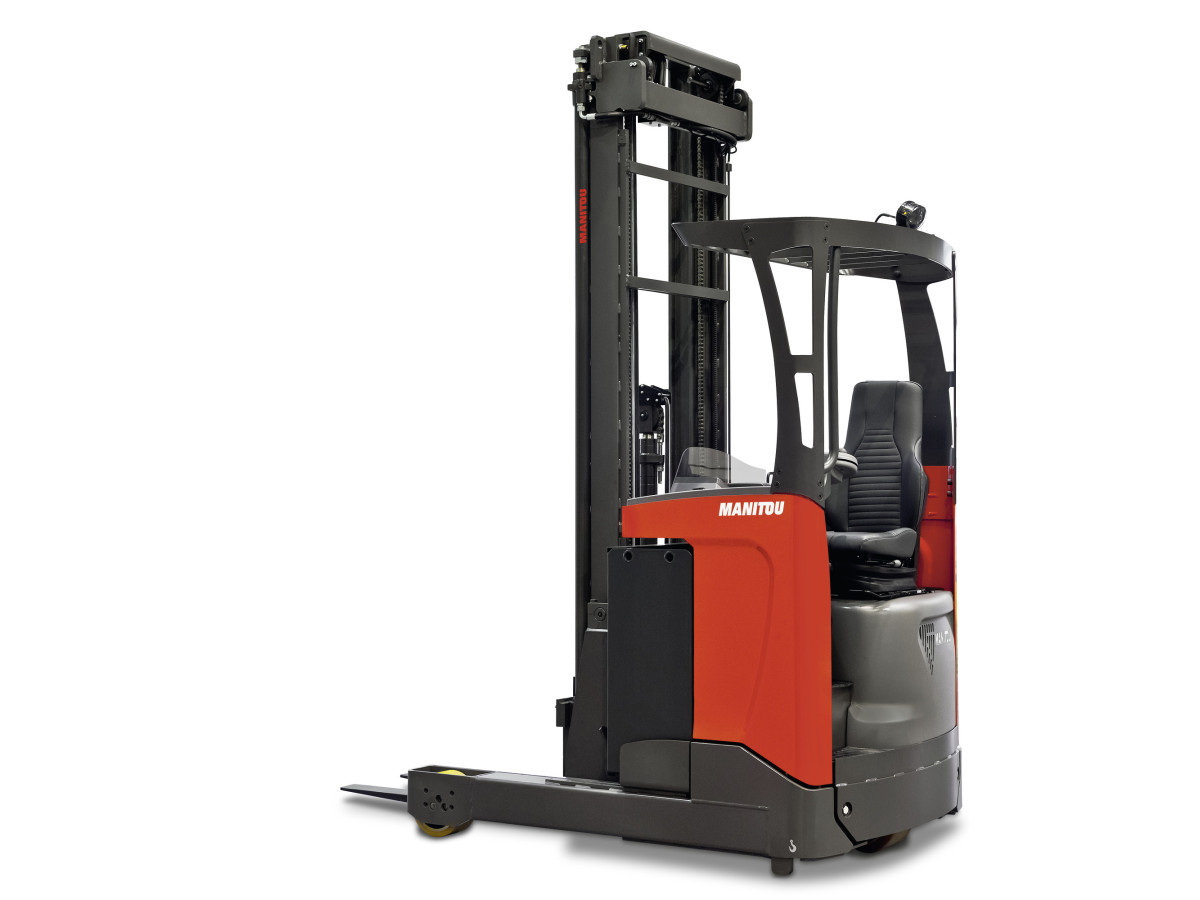

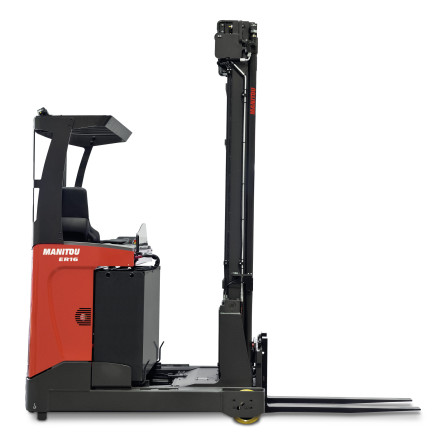

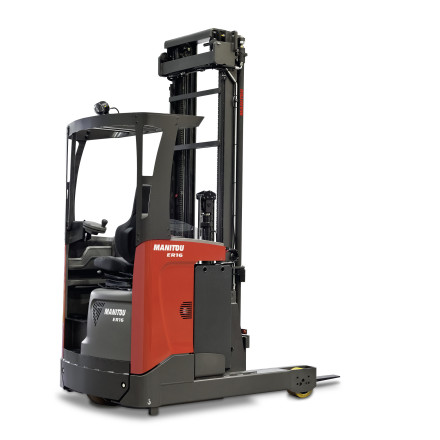

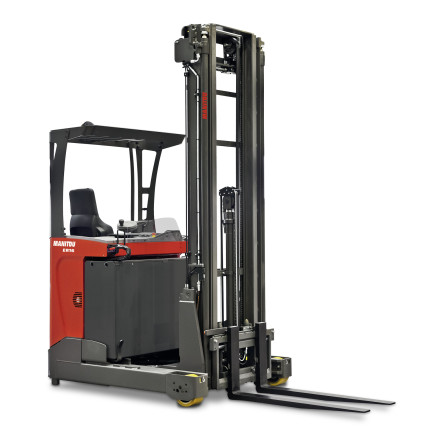

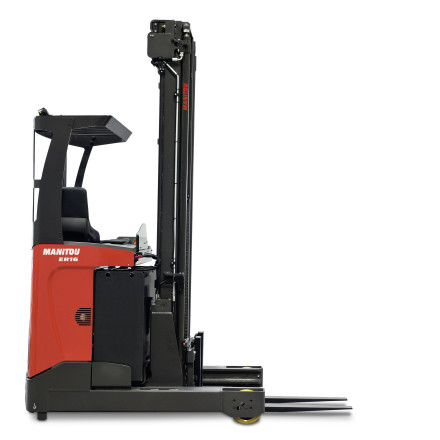

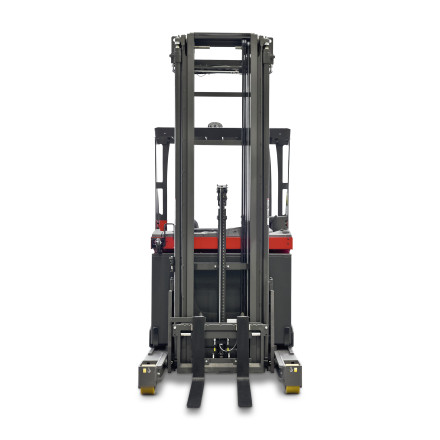

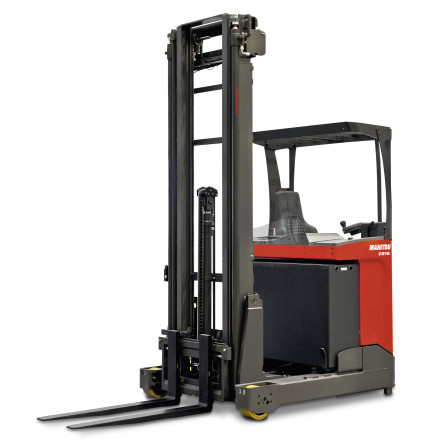

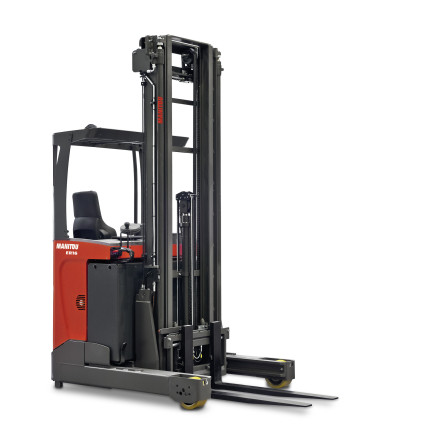

Media Gallery
