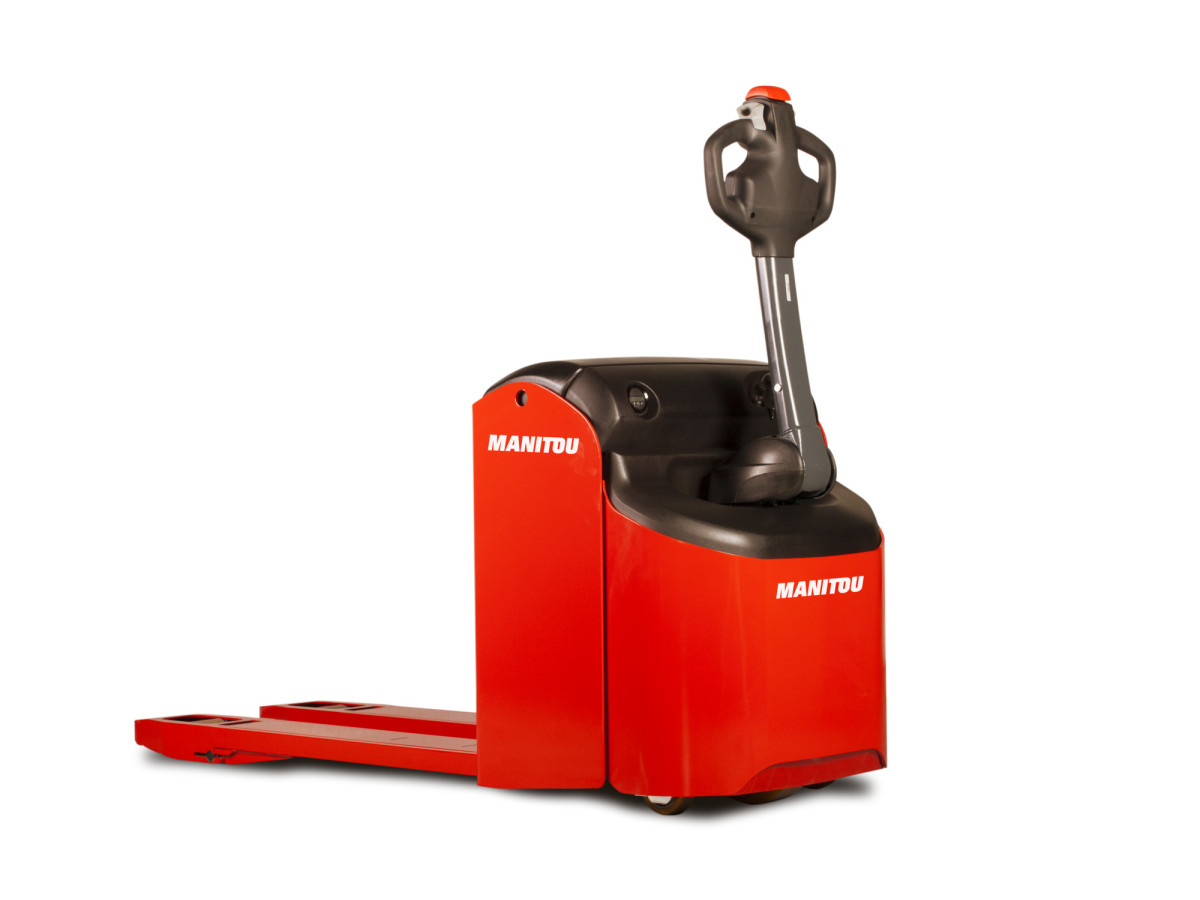

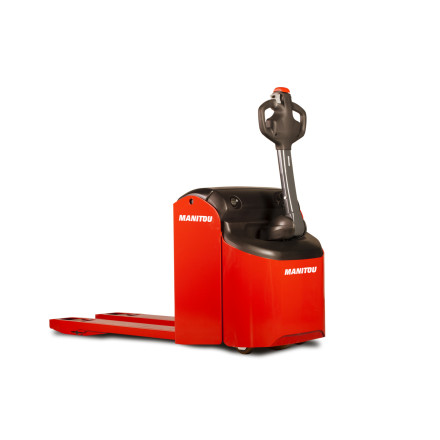

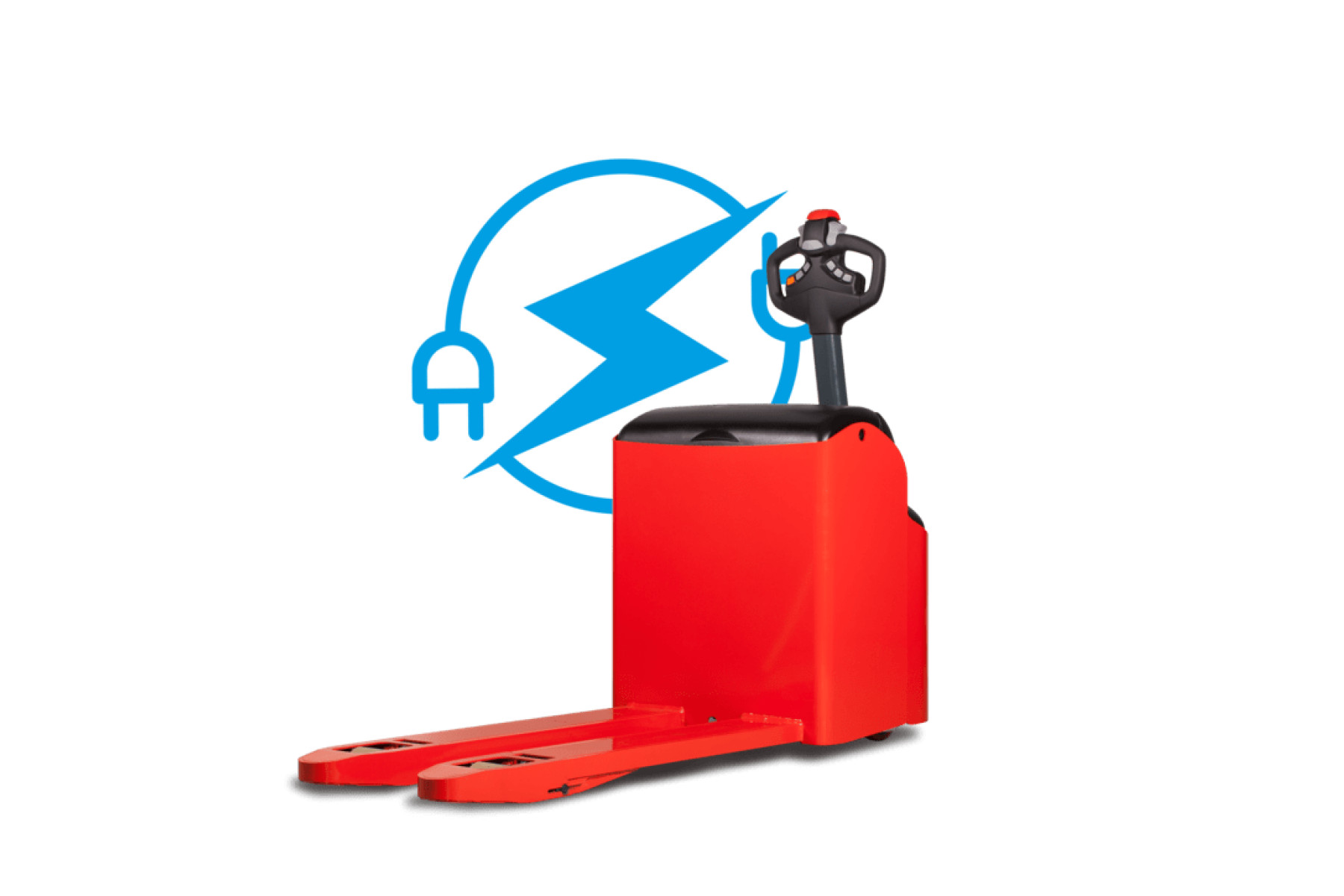

Product Specifications for EP 18
- TECHNICAL CHARACTERISTICS
- Model NameEP 18
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity600 mm
- Wheelbase1 372 mm
- Load distance, centre of drive axle to fork953 mm
- Max. capacity1 800 kg
- WEIGHT
- Service weight480 kg
- Weight on front axle (laden)1 002 kg
- Weight on front axle (Unladen)336 kg
- Weight on rear axle (laden)1 278 kg
- Weight on rear axle (Unladen)144 kg
- WEIGHT AND DIMENSIONS
- Height tiller max.1 336 mm
- Fork height in low position85 mm
- Overall length1 739 mm
- Length to face of forks589 mm
- Overall width680 mm
- Overall width - Single wheels680 mm
- Forks section45 mm
- Forks width175 mm
- Forks length1 150 mm
- Distance between support arms540 mm
- Forks spread540 mm
- Ground clearance at centre of wheelbase35 mm
- Aisle width for 800 x 1200 pallet lengthways1 939 mm
- Turning radius1 544 mm
- WHEELS
- Tires typePolyurethane cushion
- Dimensions of front wheels230 x 75
- Dimensions of rear wheels2 x (82 x 100)
- Number of front wheels2
- Number of rear wheels2
- Number of drive wheels1
- Front wheel gauge435 mm
- Rear wheel gauge366 mm
- MASTS
- Mast lifting height125 mm
- Max. lifting height210 mm
- PERFORMANCES
- Travel speed (laden)5,8 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,03 m/s
- Lifting speed (unladen)0,04 m/s
- Lowering speed (laden)0,05 m/s
- Lowering speed (unladen)0,03 m/s
- Gradeability (laden)10 %
- Gradeability (unladen)25 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min1,2 kW
- Lift motor rating at S3 15%1 kW
- TRANSMISSION
- Parking brakeHandle Release
- NOISE AND VIBRATION
- Measured/guaranteed mean noise level at the ear of the operator70 dB
- BATTERY
- Battery capacity180 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)180 kg
- Battery according to DIN 43531/35/36 A, B, CTraction
