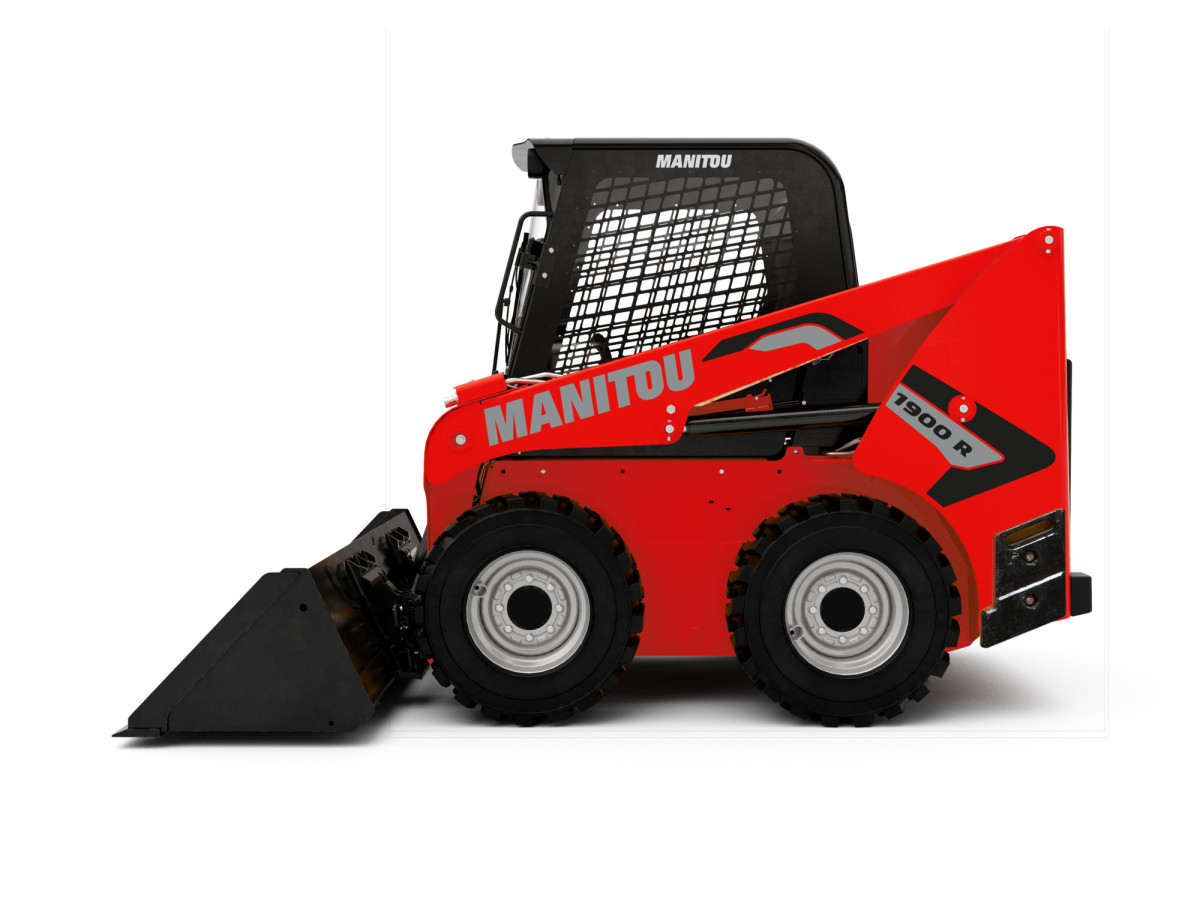

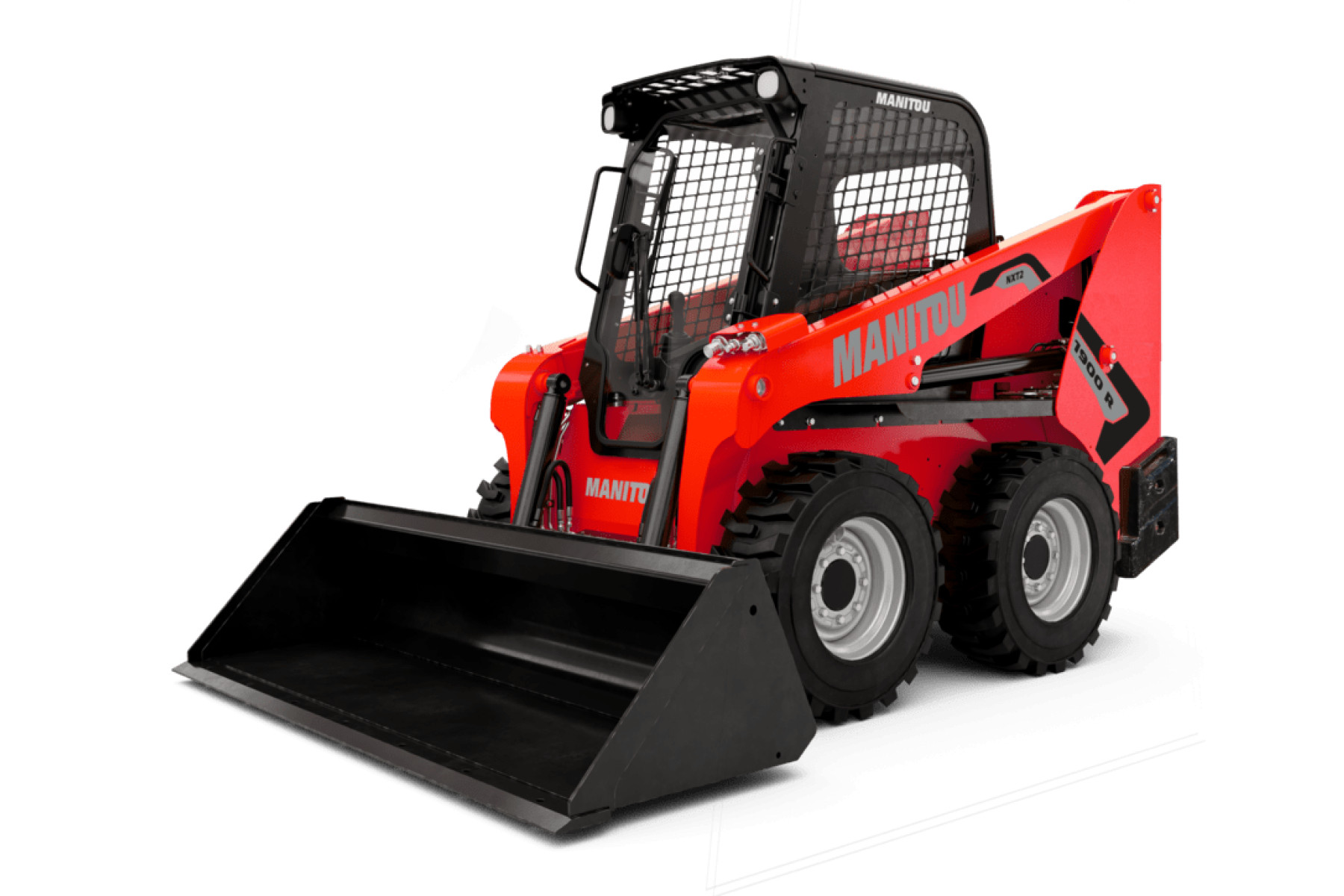

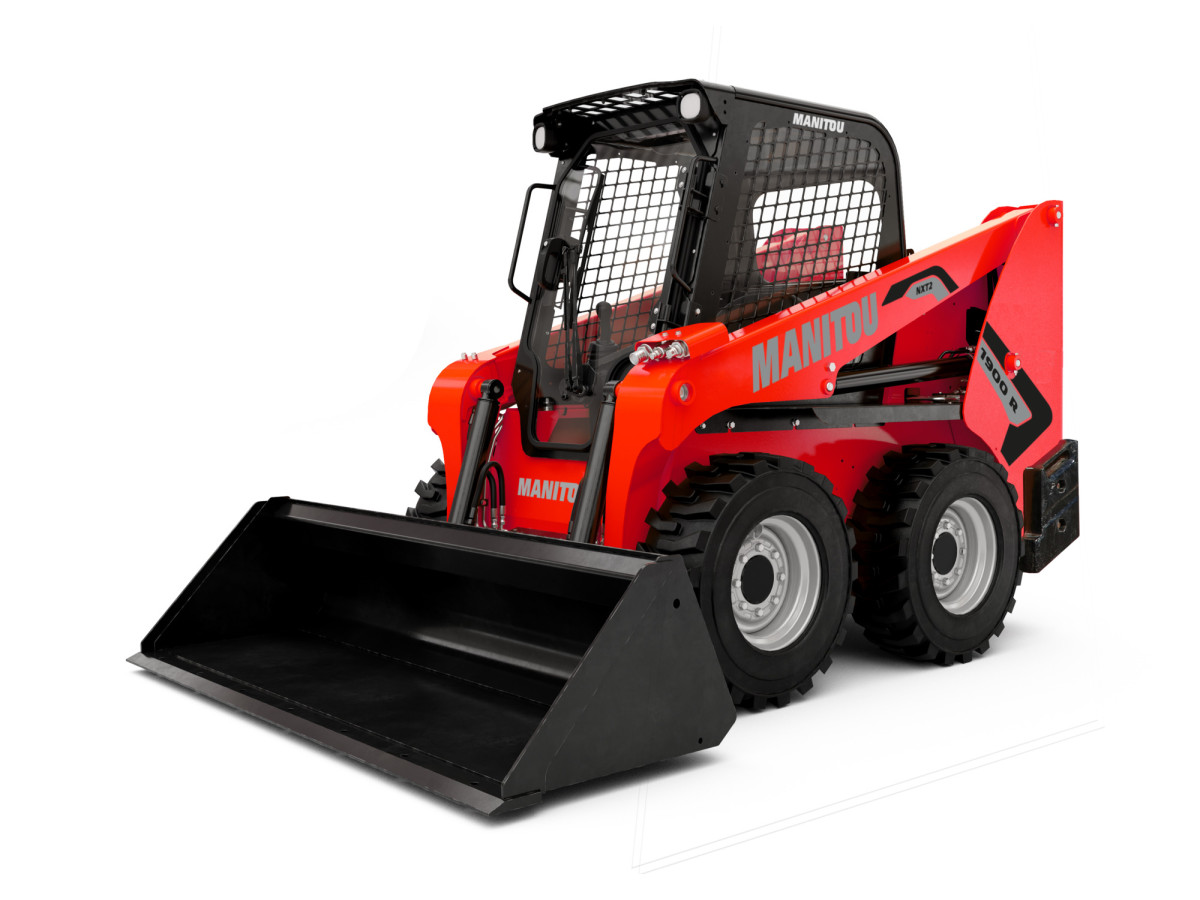

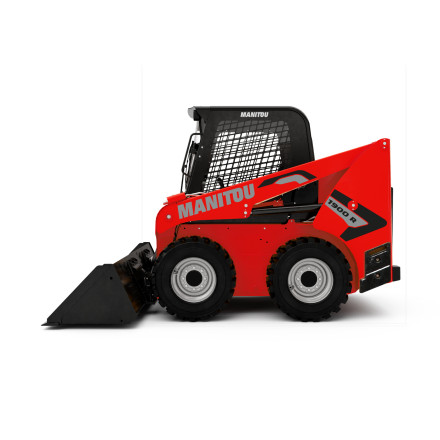

Compact Loaders 1900R NXT2
Request a Quote Download BrochureKey Information
Wheelbase
1 066,8 mm
Operating Capacity At 50% Tipping Load
861,83 kg
Operating Weight
3 172,88 kg
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for 1900R NXT2
- TECHNICAL CHARACTERISTICS
- Power sourceDiesel
- Wheelbase1 066,8 mm
- Operating Capacity At 50% Tipping Load861,83 kg
- Operating Weight3 172,88 kg
- WEIGHT AND DIMENSIONS
- Ground clearance160,02 mm
- Height to Hinge Pin - Fully Raised3 022,6 mm
- Bucket Width1 676,4 mm
- Overall Operating Height - Fully Raised3 886,2 mm
- Overall length with bucket3 251,2 mm
- Dump height2 387,6 mm
- Dump reach - Full height584,2 mm
- Seat to ground height904,24 mm
- Overall width less bucket1 574,8 mm
- Overall length - Less Bucket2 446,02 mm
- Clearance Radius - Front with Bucket2 032 mm
- Dump angle at full height38 °
- Rollback Angle at Full Height99 °
- Rear departure angle21 °
- WHEELS
- Standard tires10 x 16.5
- PERFORMANCES
- Travel Speed with Two-Speed Option - Maximum19,47 km/h
- Travel speed (unladen)12,55 km/h
- ENGINE
- Engine brandYanmar
- Engine model4TNV98C-NMS2V
- Engine normStage IIIA
- Engine power (Hp)69,3 Hp
- Engine power (kW)51 kW
- Max. torque241 Nm
- Engine rotation1 625 rpm
- Starter3 kW
- HYDRAULICS
- Auxiliary Hydraulic Pressure207 bar
- High-Flow Auxiliary Hydraulics Pressure - Option179 bar
- High-Flow Auxiliary Hydraulics - Option113,94 l/min
- Standard flow - Auxiliary hydraulics70,79 l/min
- TANK CAPACITIES
- Fuel58,67 l
- Hydraulic tank capacity35,96 l
- NOISE AND VIBRATION
- Vibration on hands/arms1,53 m/s²
- Noise to environment (LwA)100 dB
- Whole-Body Vibration (ISO 2631-1)0,96 m/s²
- BATTERY
- Battery voltage12 V
