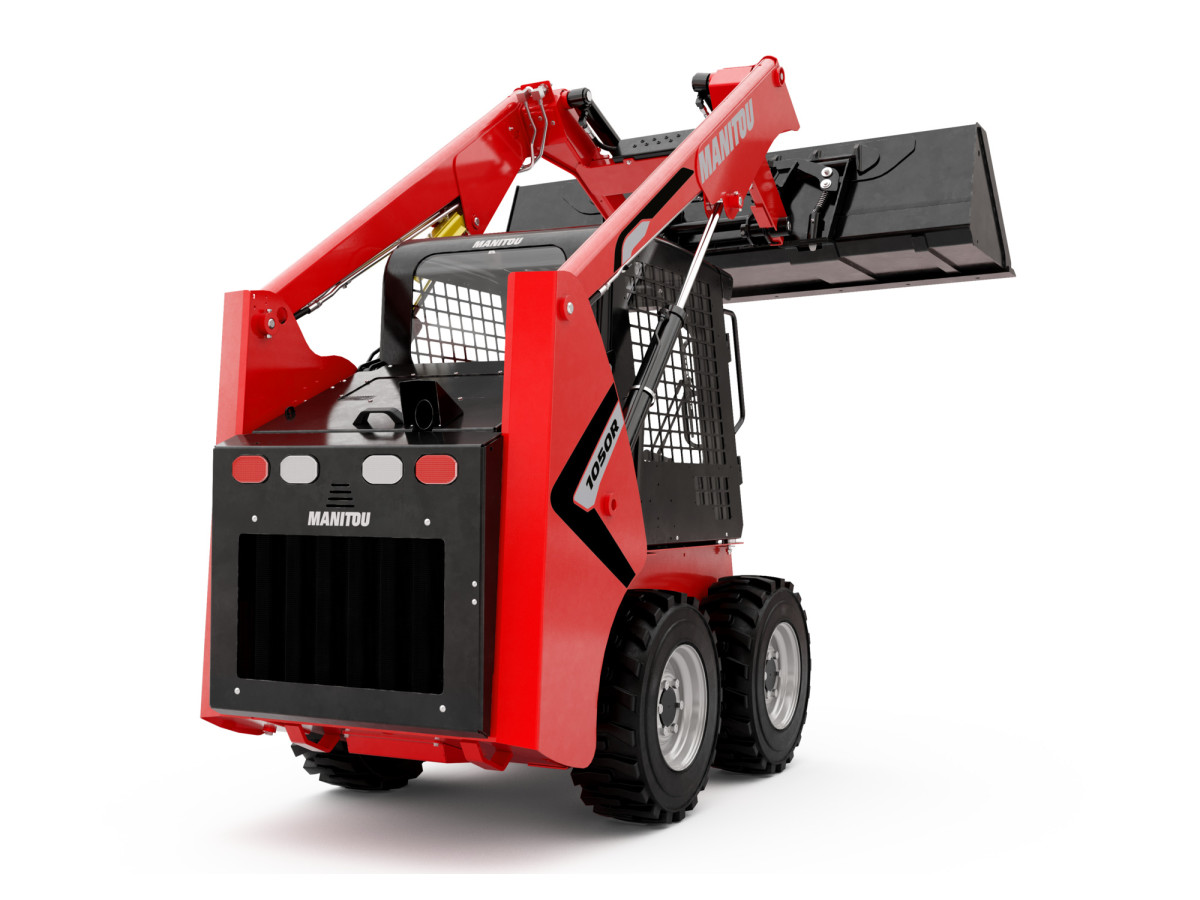

Compact Loaders 1050R
Request a Quote Download BrochureKey Information
Wheelbase
876 mm
Rated Operating Capacity
476 kg
Rated Operating Capacity with Optional Counterweight
533 kg
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for 1050R
- TECHNICAL CHARACTERISTICS
- Power sourceDiesel
- Wheelbase876 mm
- Rated Operating Capacity476 kg
- Rated Operating Capacity with Optional Counterweight533 kg
- WEIGHT
- Unladen weight1 905 kg
- DIMENSIONS
- Departure angle26 °
- WEIGHT AND DIMENSIONS
- Ground clearance152 mm
- Height to Hinge Pin - Fully Raised2 746 mm
- Bucket Width1 404 mm
- Overall Operating Height - Fully Raised3 546 mm
- Overall length with bucket2 896 mm
- Dump height2 146 mm
- Dump reach - Full height579 mm
- Seat to ground height828 mm
- Overall width less bucket1 229 mm
- Overall length - Less Bucket2 258 mm
- Clearance Radius - Front with Bucket1 763 mm
- Dump angle at full height42 °
- WHEELS
- Standard tires27 x 8.5 x 15 HD
- PERFORMANCES
- Travel speed (unladen)9,5 km/h
- ENGINE
- Engine brandYanmar
- Engine model3TNV88C-KMS
- Engine normStage IIIB, Tier 4
- Engine power (Hp)34,2 Hp
- Engine power (kW)24,7 kW
- Displacement1,6 l
- Max. torque108 Nm
- Engine rotation2 800 rpm
- Alternator40 kW
- Starter2,3 kW
- HYDRAULICS
- Auxiliary Hydraulic Pressure189,6 bar
- Standard flow - Auxiliary hydraulics55,1 l/min
- TANK CAPACITIES
- Fuel39,4 l
- Hydraulic tank capacity30,3 l
- NOISE AND VIBRATION
- Vibration on hands/arms0,93 m/s²
- Noise to environment (LwA)101 dB
- Whole-Body Vibration (ISO 2631-1)0,81 m/s²
- Noise at driving position (LpA)80 dB
- BATTERY
- Battery voltage12 V

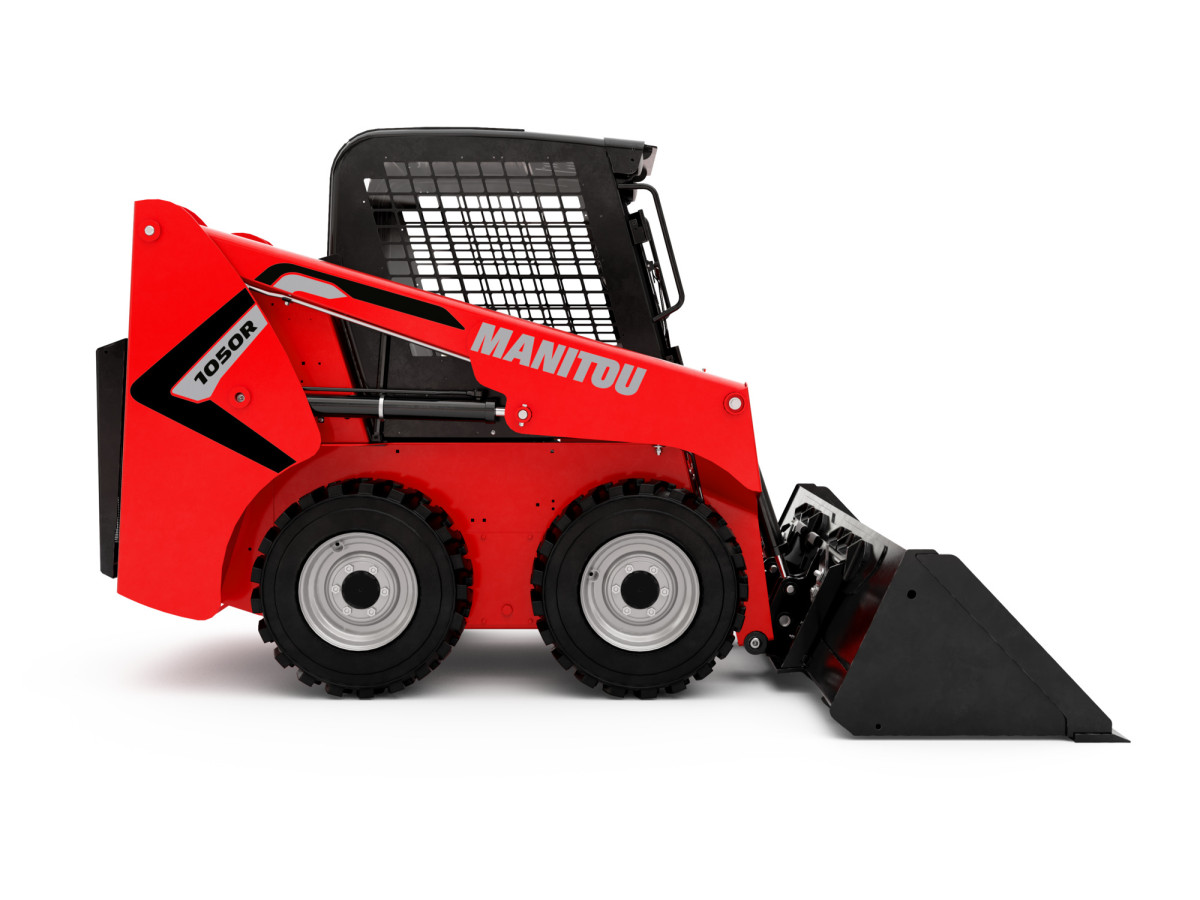

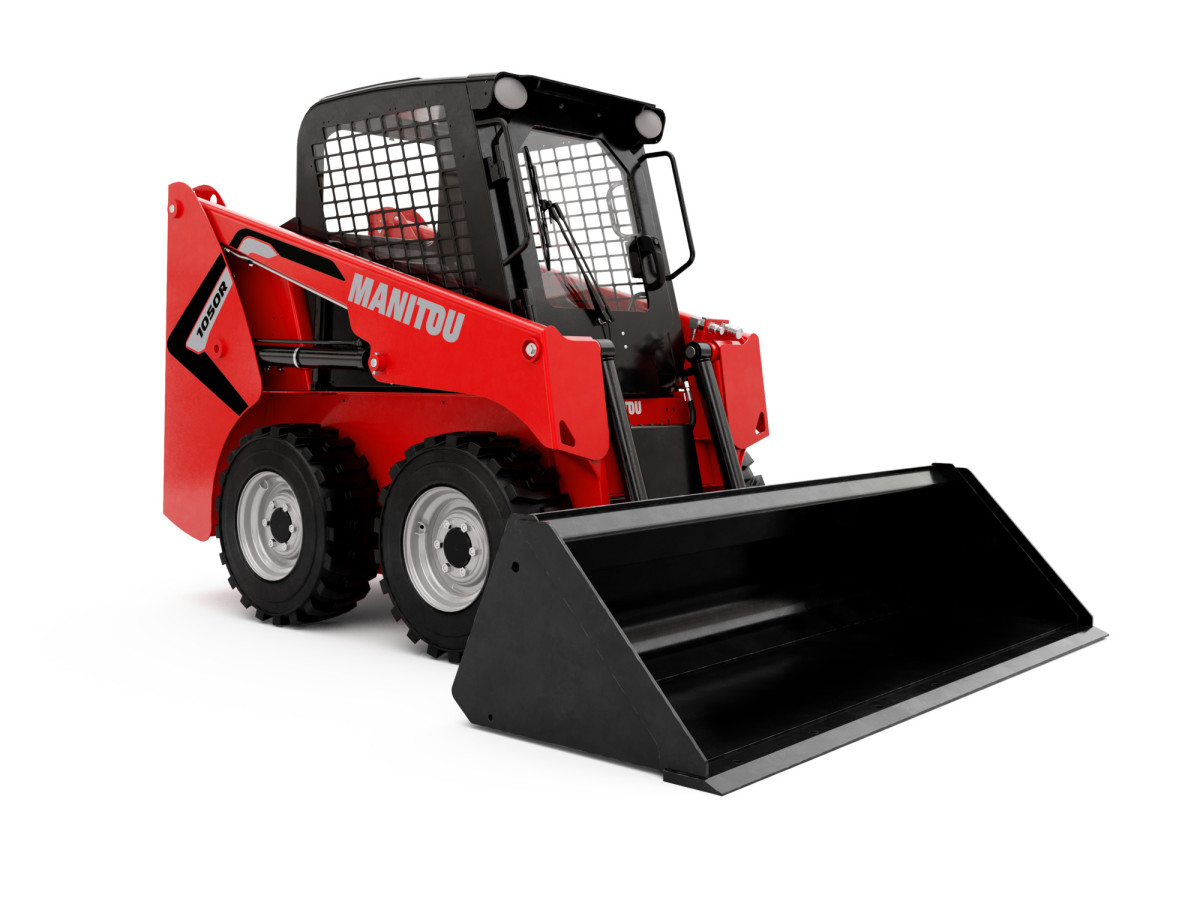

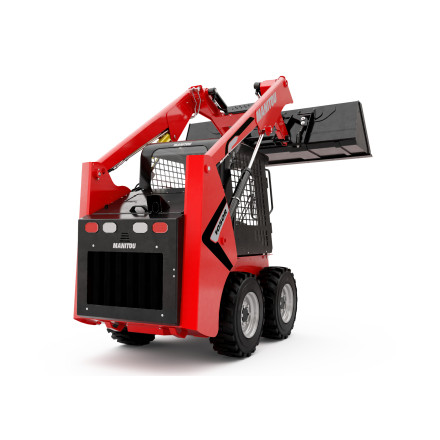

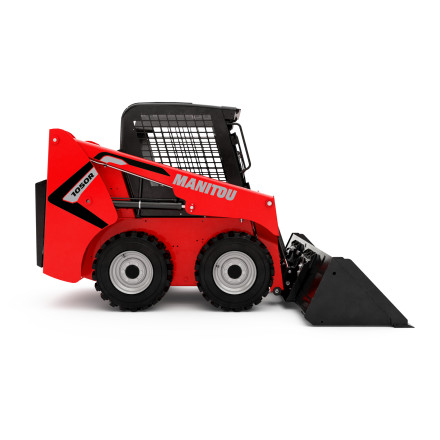

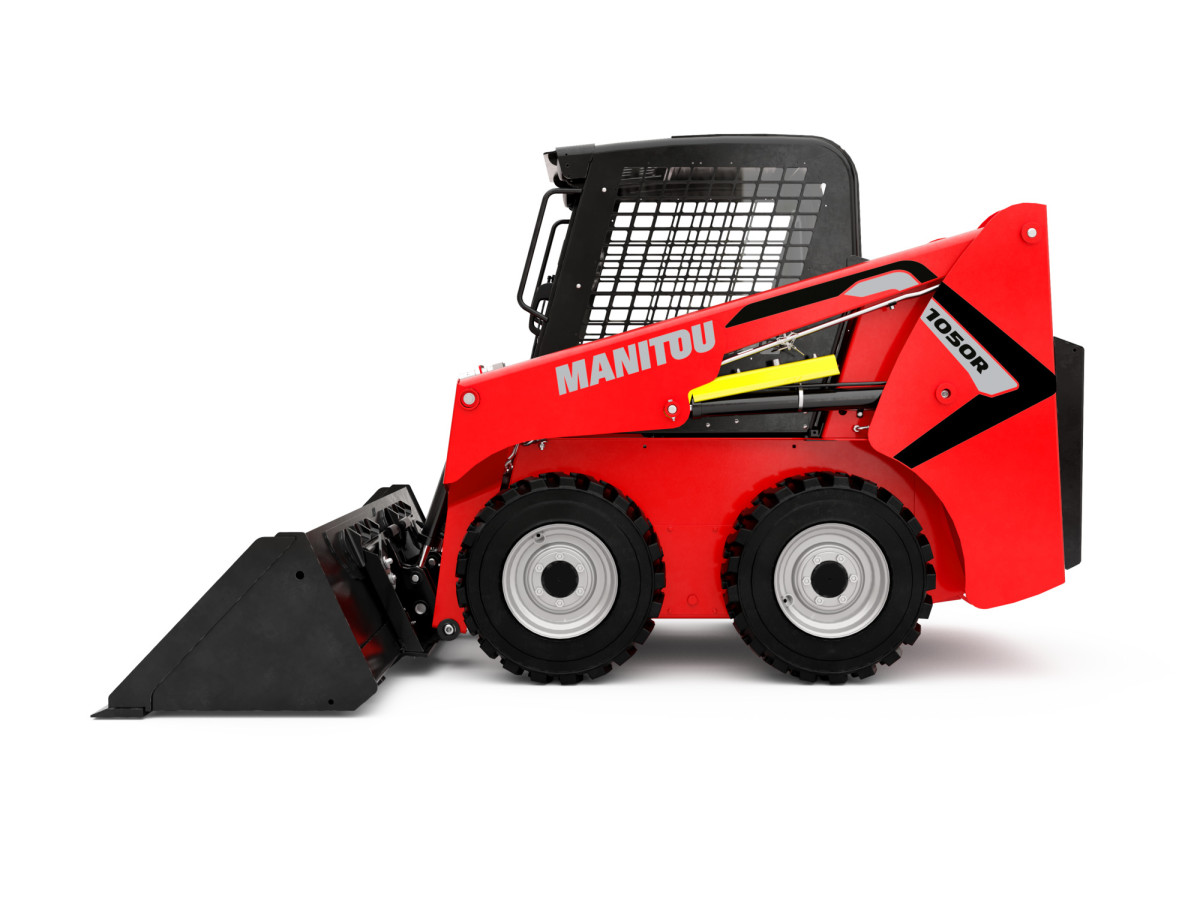

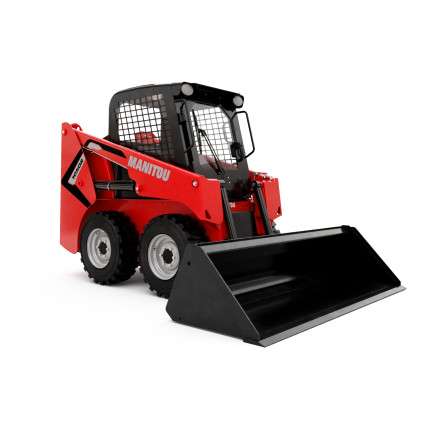

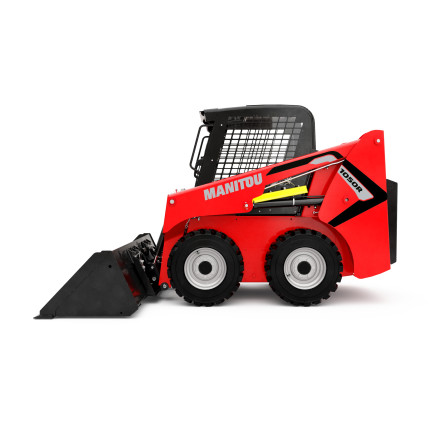

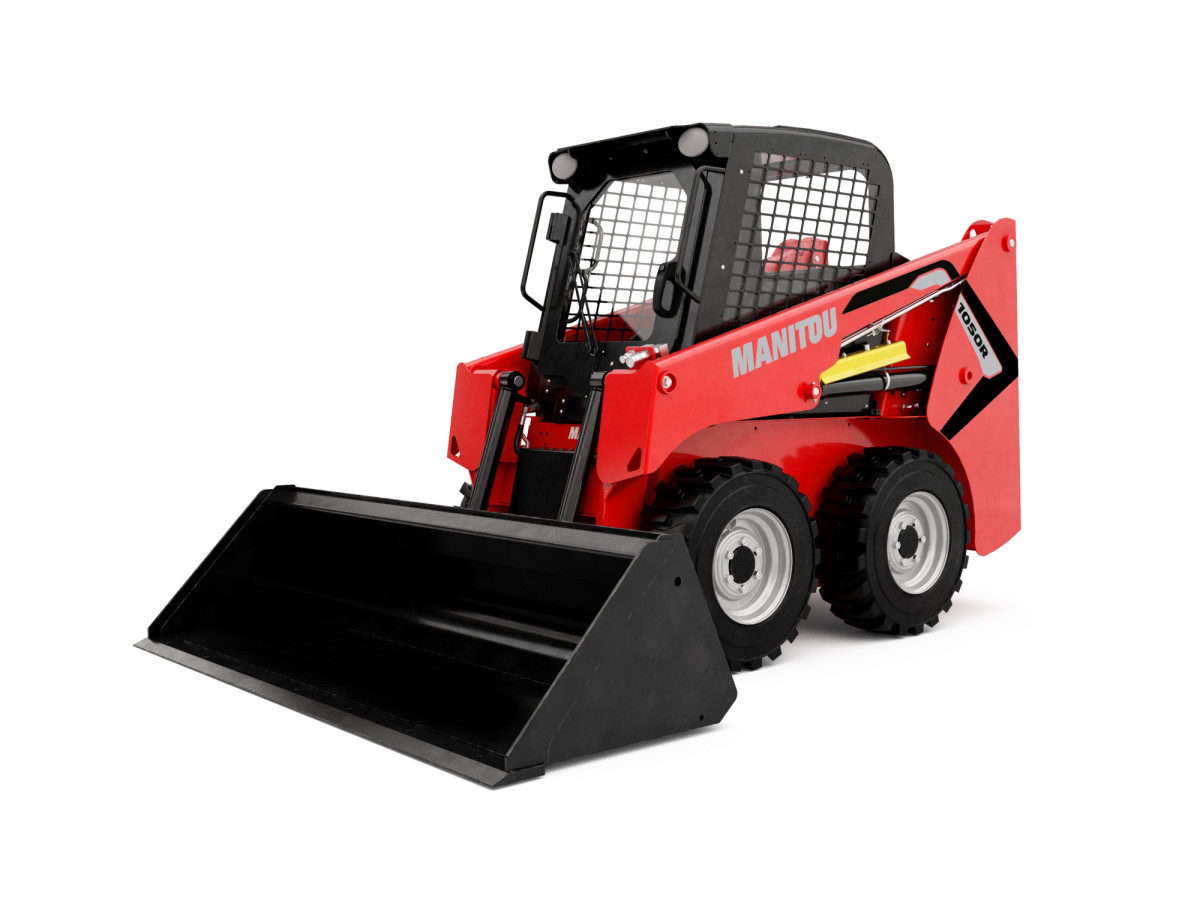

Media Gallery
