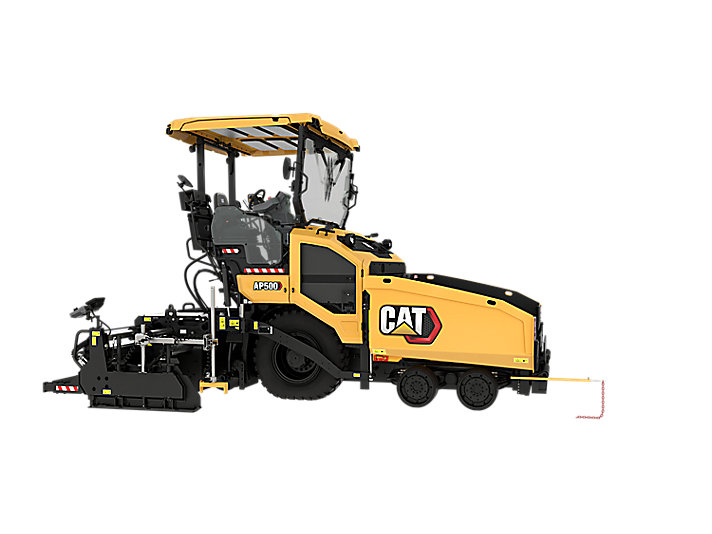

Asphalt pavers AP500
Request a QuoteKey Information
Laying Range with SE47 VT
2.4 m - 6.0 m
Operating weight with SE47 VT
15,351 kg
Maximum flow
1,000 tons/h
Overview
Adapted Sizes
The CAT® AP500 Paver is designed for urban streets, parking lots, country roads, and many other small to medium-sized applications. This paver offers high performance capacity, as well as strong versatility in terms of application, simple adjustments, and a wide range of pavement laying.
AdvantagesIncreased Performance
The superior power capacity and feeding system provide better performance.
Easy to Use
The unique sliding station, easy access display, and unobstructed visibility of the hopper combine to simplify operation.
More Versatility
The wide laying functionality, repairable components, and excellent traction provided by the front wheel assist and all-wheel drive options offer general contractors excellent flexibility.
Key Features
- More performance and flexibility
- Simplified transportation
- Exceptional mobility
- Fluid material flow
- More Comfort
- Low operating costs
- Product Link™ Elite
- Maintenance and repair kits
More performance and flexibility
The powerful C4.4 Engine supports the increased capacity of the feeding system as well as hopper inserts, to provide continuous pavement laying. The tight 90° steering capability allows the paver to pivot and cover its tracks during a return pass. The standard paving range with a SE47 VT table extends from 2.4 m to 4.7 m (8 ft to 15 ft 6 in), with a maximum width of 6.0 m (19 ft 8 in). The standard paving range with a SE50 V table extends from 2.55 m to 5.0 m (8 ft - 15 ft 6 in), with a maximum width of 6.77 m (22 ft 3 in). Paving depths up to 300 mm (12 in) allow for aggregate paving applications.
Simplified transportation
The weight of the machine, finisher, and table, less than 14.5 mt (32,000 lb), facilitates transportation on different trailers. The length of less than 5.7 m (18 ft 9 in) and a width of 2.55 m (8 ft 4 in) when equipped with the SE47 VT table allows for transportation of the machine without a special permit. The length of less than 6.0 m (19 ft 6 in) and a width of 2.55 m (8 ft 4 in) when equipped with the SE50 VT table and foldable end valves allows for transportation of the machine without a special permit. The 17° front loading angle and the high front bumper clearance reduce the need for additional support when loading onto various types of trailers. Attachment points located at the front, rear, and center of the machine facilitate securing the load during fast movements to the next site.
Exceptional mobility
The wheeled undercarriage offers incredible mobility and high travel speeds, as well as unmatched maneuverability on the construction site. Excellent traction thanks to the 17.5 R25 radial carcass tires. The front wheel assist option provides power to the rear series of bogie wheels for excellent performance in difficult conditions. The all-terrain driving option uses a flow coupler, allowing power to be supplied to both series of bogie wheels and thus providing additional traction power. The high ground clearance of 197 mm (7.8") allows for avoiding rainwater collectors, curbs, and other obstacles. """
Fluid material flow
An optimized hopper design with lowered input height into the vehicle and a shorter front apron improves material flow while facilitating cleaning. The improved feeding system, with 355 mm (14") diameter feeding screws, allows for a steady material flow along the table, providing efficient flow for both narrow and wide coating widths. The enclosed feeding screw chamber keeps the material moving and prevents the accumulation of debris. Independent control of each material feeding sensor when using a cutting pad, simply turn off the sensor for proportional feeding system control. """
More Comfort
The optional ventilation system draws fumes from the feed screw chamber away from the driver. This allows the driver to have a more comfortable working environment. The unique sliding console allows operation from both sides of the machine, providing optimal visibility on edges, edges, and cross joints. The two independent seats can rotate 40° beyond the platform for good visibility of edges and obstacles. Optimized height and integrated exhaust provide unobstructed visibility around the machine. Umbrellas attached to the table and optional finisher provide protection against sunlight. The heated seat option provides great comfort in cool weather conditions. The high visibility 76 mm (3") seat belt allows for compliant safety for the team."""
Low operating costs
The Cat C4.4 Engine provides a power of 110 kW (148 HP) with variants compliant with Tier 4 Final EPA emissions standards for the United States and Stage V for the European Union. The Cat C4.4 Engine also complies with MAR-1 emissions standards for Brazil and UN ECE R96 Stage IIIA, equivalent to Tier 3 EPA standards for the United States and Stage IIIA for the European Union, and provides a power of 106 kW (142 HP). The exclusive Eco mode, as well as automatic engine speed control, reduce fuel consumption and decrease noise levels for better comfort and smoother communication. The conveyor base plates and chain cases are designed to minimize repairs and offer low-cost replacement. Maintenance-free high-torque engines reduce maintenance requirements for feed screw and conveyor drive systems.
Product Link™ Elite
Make optimal decisions at the right time, based on facts to increase productivity while reducing operating costs. Easily access real-time location, operating hours, fuel consumption, and downtime. Diagnostic codes are available online through web applications. Remote flashing to facilitate software updates. Scheduled maintenance notifications and periodic oil sampling. Remote engine shutdown for added safety.
Maintenance and repair kits
The maintenance and repair kits for finishers and smoothing plates include all the necessary parts to perform specific repairs. Cat original parts are manufactured according to precise technical specifications and designed to offer optimal performance and maximum availability. Repair kits are identified by a unique part number to facilitate ordering. Some components are available in kit form through the dealer, for over-the-counter purchase or through the dealer's maintenance workshop.
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for AP500
- DIMENSIONS
- Paving Range with SE47 VT2.4 m - 6.0 m (7 ft 10 in - 19 ft 8 in)
- Paving Range with SE50 VT2.55 m - 6.77 m (8' 4" - 22' 3")
- Dump Truck Entry Height537 mm
- Overall Length in Operating Position5.9 m
- Overall Width in Operating Position3.3 m
- Overall Height3.9 m
- Transport Length5.7 m
- Transport Width2.5 m
- Transport Height2.9 m
- ENGINE
- Engine Model (1)C4.4 Cat (Tier 4 Final - USA, Stage V - EU)
- Engine Power (1)110 kW
- Engine Model (2)C4.4 Cat (UNECE R96 Stage IIIA, equivalent to EPA Tier 3 for USA and Stage IIIA for EU)
- Engine Power (2)106 kW
- OPERATING CHARACTERISTICS
- Maximum Throughput1000 tonnes/hr
- Maximum Travel Speed16 km/h
- Maximum Paving Speed with Screed25 m/min
- WEIGHT
- Operating Weight with SE47 VT15,351 kg
- Operating Weight with SE50 VT15,430 kg
- Shipping Weight, Paver Only12,026 kg
- MAINTENANCE CAPACITIES
- Fuel Tank200 l
- DEF Tank19 l
- Cooling System, Total24 l
- Hydraulic Oil Tank121 l
- Washdown Spray Tank32 l
Standard Equipment for AP500
-
DRIVER'S COMPARTMENT
- Single Sliding Console
- Steering Guide
-
TECHNOLOGY
- Product Link™ Elite 643 (Cellular)
-
POWERTRAIN
- C4.4 CAT®, Four-Cylinder
- Variable-Speed Cooling Fan
- Radial Tires
-
ELECTRICAL SYSTEM
- 1,400 CCA Maintenance-Free Battery
- 150A Alternator
- 12V Power Supply Circuit
- Automotive-Type Fuse System
- Automatic Reset Circuit Breaker for Material Sensors
- CAT® ET Electronic Tool
-
MATERIAL DELIVERY
- Material Feed Screw Extension, 0.15m (6")
- Contact Material Feed Sensors
- Adjustable Push Roller
-
MAINTENANCE AND SERVICE
- Hydraulic Oil, Cat HYDO™ Advanced
- Remote Drain Access
- Remote Updates
- Maintenance and Repair Kits
- Periodic Oil Sampling Ports
- Coolant and Hydraulic Oil Level Gauges
-
SAFETY
- Reverse Alarm
- Horn, Warning (Front and Rear)
- LED Lights
- Mirror Set
Available Options for AP500
-
DRIVER'S COMPARTMENT
- Roof, Manual Hydraulic Lift
- Roof, Motorized Hydraulic Lift
- Decelerator Pedal
- Twin Steering Consoles
- Heated Seat
- Side Protection Screens
- Sunshade/Umbrella
- Ventilation System
- Windshield
-
TECHNOLOGY
- CAT® Grade Control
- Basic Leveling Control
- Product Link™ Elite 683 Cellular/Satellite
-
POWERTRAIN
- All-Wheel Drive
- Front Weight Ballast
- Front Wheel Assist
-
MATERIAL DELIVERY
- Feed Screw Extension, 0.46m (1.5')
- Main Frame Extensions, Feed
- Main Frame Extensions, Manual
- Ultrasonic Material Feed Sensors
- Push Bars System
- Wash Pump and Reel
- Push Bars System
-
SAFETY
- LED Front Headlights
- Beacon Light
