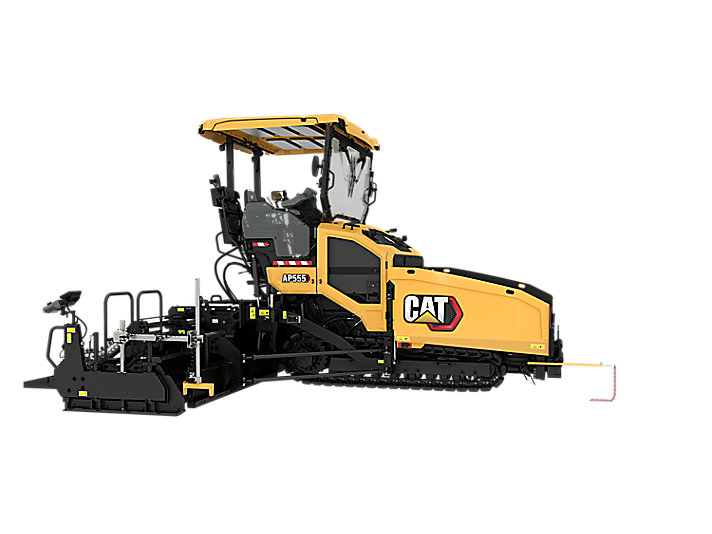

Asphalt pavers AP555F steel track
Request a QuoteKey Information
Laying Range with SE47 VT
2.4 m - 6.0 m
Operating weight with SE47 VT
16,217 kg
Maximum flow
1,000 tons/h
Overview
More Versatility
The size of the CAT® AP555 Steel Track Asphalt Paver is suitable for both urban and rural applications. It offers excellent traction and mobility, as well as easy adjustment and a wide range of paving widths, making it the ideal tool for urban pavements, parking lots, country roads, and many other small to medium-sized paving applications.
AdvantagesMore Performance
The superior power capacity and feeding system provide better performance.
Easy to Use
The unique sliding console, easy screen viewing, and clear visibility of the hopper are all elements that simplify use.
More Versatility
The steel track undercarriage provides excellent traction and stability, while the various paving widths offer flexibility.
Key Features
- More performance and flexibility
- Simplified transportation
- Exceptional mobility
- Fluid material flow
- More Comfort
- Low operating costs
- Product Link™ Elite
- Maintenance and repair kits
More performance and flexibility
The powerful C4.4 Engine supports the increased capacity of the feeding system as well as hopper inserts, to provide continuous pavement laying. The tight 90° turning capability allows the paver to pivot and cover tracks during a return pass. The standard paving range using the SE47 VT table is from 2.4 m to 4.7 m (7 ft 10 in to 15 ft 4 in), with a maximum width of 6 m (19 ft 8 in). The standard paving range with an SE50 V table extends from 2.55 m to 5.0 m (8 ft 4 in - 16 ft 4 in), with a maximum width of 7.64 m (25 ft). Paving depths of up to 300 mm (12 in) allow for aggregate paving applications.
Simplified transportation
The combined weight of the paver and the 16.3 tm (35,926 lb) table facilitates transportation on various types of trailers. The length of less than 5.72 m (18 ft 9 in) and the width of 2.55 m (8 ft 4 in) when equipped with the SE47 VT table allow for transportation of the machine without a special permit. The length of less than 6.0 m (19 ft 6 in) and the width of 2.55 m (8 ft 4 in) when equipped with the SE50 VT table and foldable end gates allow for transportation of the machine without a special permit. The 15° front loading angle and the high clearance of the front bumper reduce the need for additional support when loading onto various types of trailers. Attachment points located at the front, rear, and center of the machine facilitate securing the load during fast movements to the next job site.
Exceptional mobility
The steel track chain system provides incredible traction, fast travel speeds, and unmatched maneuverability on the construction site. The reverse rotation chains offer excellent maneuverability in tight spaces. The automatic chain tensioning system, double upper rollers, and chain guide plates ensure perfect chain alignment and correct tensioning for smooth movement. The triple-edged chain shoes with profiled polyurethane shoes guarantee durability and long lifespan, allowing for smooth movement and minimal marks on uneven surfaces. The efficient design of the rock guard keeps material away from the chains and eliminates density variations caused by chain compression.
Fluid material flow
The low entry height of the dump truck and the small front apron improve material flow while facilitating cleaning. The design of the feeding system, with a 355 mm (14") diameter feeding screw, allows for a steady flow of material along the table, providing efficient flow for both narrow and wide coating widths. The enclosed feeding screw chamber keeps the material moving and prevents the accumulation of pieces. Each material feeding sensor can be independently controlled when using a cutting pad, simply by turning off the sensor for proportional feeding system control. """
More Comfort
The optional ventilation system draws fumes from the feed screw chamber away from the driver. This allows the driver to have a more comfortable working environment. The unique sliding console allows operation from both sides of the machine, providing optimal visibility on edges, edges, and cross joints. The two independent seats can rotate 40° beyond the platform for good visibility of edges and obstacles. The optimized height and integrated evacuation system provide unparalleled visibility around the machine. Umbrellas attached to the table and the optional finisher provide protection against sunlight. The option of a heated seat provides great comfort in cool weather conditions. The high visibility 76 mm (3") seat belt allows for the implementation of compliant safety for the team."""
Low operating costs
The Cat C4.4 Engine provides a power of 110 kW (148 HP) with variants compliant with Tier 4 Final EPA emissions standards for the United States and Stage V for the European Union. The Cat C4.4 Engine also complies with MAR-1 emissions standards for Brazil and UN ECE R96 Stage IIIA, equivalent to Tier 3 EPA standards for the United States and Stage IIIA for the European Union, and provides a power of 106 kW (142 HP). The exclusive Eco mode, as well as automatic engine speed control, reduce fuel consumption and decrease noise levels for better comfort and smoother communication. The conveyor base plates and chain cases are designed to minimize repairs and offer low-cost replacement. Maintenance-free high-torque engines reduce maintenance requirements for feed screw and conveyor drive systems.
Product Link™ Elite
Make optimal decisions at the right time, based on facts to increase productivity while reducing operating costs. Easily access real-time location, operating hours, fuel consumption, and downtime. Diagnostic codes are available online through web applications. Remote flashing to facilitate software updates. Scheduled maintenance notifications and periodic oil sampling. Remote engine shutdown for added safety.
Maintenance and repair kits
The powerful C4.4 Engine supports the increased capacity of the feeding system as well as hopper inserts, to provide continuous pavement laying. The tight 90° turning capability allows the paver to pivot and cover tracks during a return pass. The standard paving range using the SE47 VT table is from 2.4 m to 4.7 m (7 ft 10 in to 15 ft 4 in), with a maximum width of 6 m (19 ft 8 in). The standard paving range with an SE50 V table extends from 2.55 m to 5.0 m (8 ft 4 in - 16 ft 4 in), with a maximum width of 7.64 m (25 ft). Paving depths of up to 300 mm (12 in) allow for aggregate paving applications.
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for AP555F steel track
- DIMENSIONS
- Paving Range with SE47 VT2.4 m - 6 m (7' 10" - 19' 8")
- Paving Range with SE50 VT2.55 m - 7.64 m (8' 4" - 25')
- Dump Height567 mm
- Operating Length5.9 m
- Operating Width3.3 m
- Overall Height3.8 m
- Transport Length5.7 m
- Transport Width2.55 m
- Transport Height2.9 m
- ENGINE
- Engine Model (1)C4.4 CAT® (Tier 4 Final United States, Stage V EU)
- Engine Power (1)110 kW
- Engine Model (2)C4.4 Cat (MAR-1 for Brazil, UN ECE R96 Stage IIIA, equivalent to EPA Tier 3 standards for United States and Stage IIIA for European Union)
- Engine Power (2)106 kW
- OPERATING CHARACTERISTICS
- Maximum Throughput1000 tonnes/hr
- Maximum Paving Speed, with Tamper Bar Screed25 m/min
- Maximum Travel Speed6 km/h
- WEIGHT
- Operating Weight with SE47 VT16,217 kg
- Operating Weight with SE50 VT16,296 kg
- Shipping Weight, Screed Only12,892 kg
- MAINTENANCE CAPACITIES
- Fuel Tank200 l
- DEF Tank19 l
- Cooling System, Total24 l
- Hydraulic Oil Tank121 l
- Washdown Spray Tank32 l
Standard Equipment for AP555F steel track
-
DRIVER'S COMPARTMENT
- Single Sliding Console
- Directional Guide
-
TECHNOLOGY
- Product Link Elite 643 (Cellular)
-
POWERTRAIN
- C4.4 CAT®, Four-Cylinder
- Variable-Speed Cooling Fan
-
ELECTRICAL CIRCUIT
- Maintenance-Free 1400 CCA Battery
- 150 A Alternator
- 12 V Power Supply Circuit
- Automotive-Type Fuse System
- Automatic Reset Circuit Breaker for Material Sensors
- CAT® ET Electronic Device
-
MATERIAL DELIVERY
- Feed Screw Extension, 0.15 m (6")
- Contact Material Feed Sensors
- Adjustable Push Roller
- Screed Bar System
-
MAINTENANCE AND SERVICE
- Hydraulic Oil, Cat HYDO™ Advanced
- Remote Access for Drain Points
- Remote Updates
- Maintenance and Repair Kits
- Periodic Oil Sampling Ports
- Coolant and Hydraulic Oil Level Gauges
-
SAFETY
- Reverse Warning
- Horn, Warning (Front and Rear)
- LED Work Lights
- Set of Mirrors
Available Options for AP555F steel track
-
DRIVER'S COMPARTMENT
- Roof, Manual Hydraulic Lift
- Roof, Hydraulic Power Lift
- Deceleration Pedal
- Dual Control Stations
- Heated Seat
- Sunshade/Umbrella
- Ventilation System
- Side Protection Screens
- Windshield
-
TECHNOLOGY
- CAT® Grade Control
- Basic Leveling Control
- Product Link™ Elite 683 Cellular/Satellite
-
POWERTRAIN
- Front Weight Ballast
-
MATERIAL DELIVERY
- Feed Screw Extension, 0.46m (1.5')
- Mainframe Extensions, Feed
- Mainframe Extensions, Manual
- Ultrasonic Material Feed Sensors
- Wash Pump and Reel
-
SAFETY
- LED Front Lights
- Beacon Light
