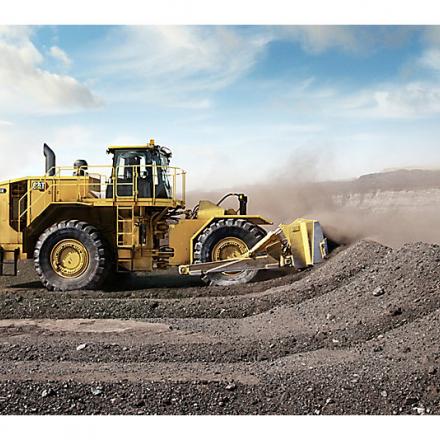

Dozers 834K
Request a QuoteKey Information
Engine Model
C18 CAT®
Operating weight
47,750 kg
Blade capacities
7.9 - 22.2 m³
Overview
Mobile. Maneuverable. Versatile.
Cat wheel loaders are designed to provide maximum durability and ensure optimal availability over multiple lifecycles. With their optimized performance and simplified maintenance, our machines provide efficient and secure assistance on the job site while reducing operating costs. Introduced to the market in the mid-1960s, the 834 Series has been the industry benchmark for nearly 50 years. Motivated by the satisfaction and success of our customers, we constantly strive to improve each new series. The 834K continues to meet our criteria for reliability, performance, safety, user comfort, ease of maintenance, and efficiency.
Advantages
Increased Performance
Fully integrated electronic engine controls provide exceptional responsiveness and maximize machine efficiency
Improved Efficiency
With improved efficiency, the operator benefits from more precise control thanks to the rotor clutch
More Productivity.
More efficient accelerations and reduced travel times result in increased productivity
Key Features
- Move more while consuming less fuel
- Value and long-term longevity
- Designed to be efficient
- Best Working Comfort
- Integrated CAT® Technologies
- Safety first
- Reduced environmental impact
- Specialized Cat Accessories
Move more while consuming less fuel

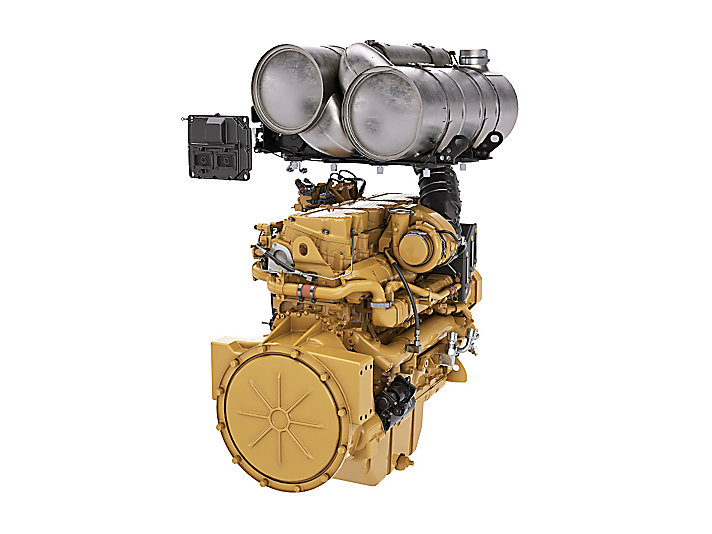

C18 Cat Engine The Cat C18 engine has been designed and tested to meet your most demanding applications. Three options for the C18 engine are available on this machine: American EPA Tier 4 Final/European Stage IV standard with aftertreatment, Tier 3 equivalent engine without aftertreatment, or Tier 2 equivalent engine without aftertreatment. The fully integrated electronic engine controls work in conjunction with the entire machine for increased fuel efficiency. The engine idle shutdown feature reduces fuel consumption at idle. The engine delayed shutdown feature ensures longer lifespan. Cat Planetary Powershift Transmission The all-new transmission controls with Advanced Productivity Electronic Control Shifting (APECS) provide extra boost on slopes and save fuel by pulsing during gear shifts. Impeller Clutch Torque Converter (ICTC) This device allows drivers to optimize efficiency by varying the effort at the machine rim while increasing hydraulic power. Reduced tire wear. Full throttle gear shifts for shorter cycle times. Smooth approach to the dumping area to limit spillage and ensure shorter cycle times. Cat Lock-Up Torque Converter Eliminates torque converter losses while reducing circuit temperature. Improves travel speeds. Reduces cycle times in loading and hauling applications. Improved Hydraulic Efficiency New flow distribution system and variable displacement, load-sensing piston pumps. Hydraulic flow now available on demand for better energy efficiency.
Value and long-term longevity
Robust Structures Boost your results with ultra-resistant structures capable of ensuring multiple lifecycles and supporting the most difficult conditions. The fully enclosed rear chassis resists both torsion forces and shocks. The extra-robust anchorages of the steering cylinders efficiently transmit the steering loads to the chassis. The axle assembly has been optimized for increased structural integrity. The lower articulation axis, frame plate, and bearing size have been increased for greater durability. Robust Structures The push bars are attached across the entire width of the chassis, not just on the side. In the corners of the discharge, the stresses are thus transmitted and absorbed by a larger part of the chassis.
Designed to be efficient
Integrated Steering and Transmission Control System (STIC™) Benefit from maximum responsiveness and control with the STIC system, which combines direction selection, gear selection, and steering into a single lever. A simple movement of the lever to the left or right allows for turning left or right, minimizing driver effort. Ultra-easy gear selection at the touch of a finger. Smoother, faster cycles and less fatigue for operators thanks to integrated controls that require minimal effort. Cat Planetary Powershift Transmission Your success depends on a superior transmission specifically designed for mining applications. Smooth and efficient gear shifting thanks to integrated electronic controls that use the Advanced Productivity Electronic Control Strategy (APECS). Longevity and reliability ensured by heat treatments and metallurgical processes on the gears. Four forward gears and three reverse gears to adapt to all your applications. Cat C18 Engine The long lifespan and exceptional efficiency of your 834K Wheel Loader come from its Cat C18 Engine. Its 6 four-stroke cylinders naturally provide optimal performance. Optimized performance and quick engine response thanks to an electronic control module. Reliable efficiency with perfect control of timing, duration, and injection pressure thanks to the electronically controlled mechanically actuated unit injector system (MEUI™). Increased engine lifespan and improved energy efficiency thanks to lower rated speed. Designed to meet EPA Tier 4 Final and European Stage IV emission standards, equivalent to Tier 3 or Tier 2 standards. Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS) Reduce operating costs by using advanced ICTC and RCS systems to control rim effort. Reduce tire slippage and wear by controlling rim effort from 100% to 25% using the left brake pedal. Once the position corresponding to a 25% reduction in rim effort is reached, the pedal is used for braking again. Decrease the risk of wheel slippage without reducing hydraulic efficiency thanks to RCS. Improve energy efficiency in certain applications with the lock-up torque converter, allowing for direct drive.
Best Working Comfort
More efficient and comfortable work for drivers thanks to a cabin inspired by our customers. Entry and Exit Easy access to the cabin thanks to its new ergonomic design. Foldable armrest/STIC steering. Reduced access ladder angles. Standard ladder lighting. Comfort Cat Series III Seat Improve driver comfort and reduce fatigue with the Comfort Cat Series III seat. Mid-height backrest and ultra-thick padded cushions. Pneumatic suspension system. Levers and seat controls within reach. Adjustable in 6 directions. Equipment control panel and STIC steering mounted on the seat and moving with it. 76 mm (3 in) wide retractable seat belt. Control Panel The ergonomic positioning of switches and information screens provides drivers with better comfort throughout the day, every day. Large backlit membrane switches have LED activation indicators. Switches have ISO symbols for quick function identification. A two-position toggle switch activates the electrohydraulic parking brake. Driving Station Improve your drivers' productivity with the clean and comfortable environment of our cabins. Enjoy the low level of vibrations achieved through cabin mounts and seat pneumatic suspension. Maintain the desired temperature inside the cabin with automatic temperature controls. Pressurized cabin with filtered air. Reduced noise level at 71 dB(A). Conveniently positioned storage tray/lunch basket at ground level.
Integrated CAT® Technologies

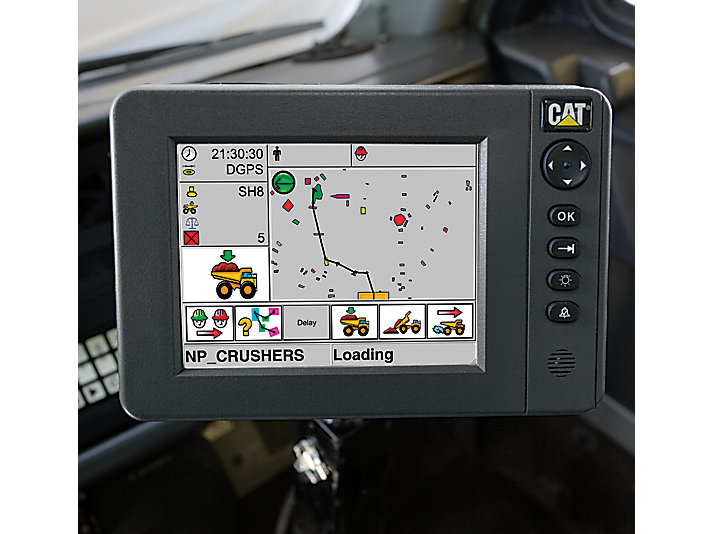

Technological Solutions The electronic circuits of the 834K have been fully integrated to function as a single machine. This integration creates an intelligent machine and allows the driver to be better informed for improved productivity. Product Link™ Cat Product Link Cat allows remote monitoring of equipment to improve overall fleet management efficiency. Incidents and diagnostic codes, as well as service hours, fuel consumption, downtime, and other information, are transmitted to a secure online application, VisionLink™. With its powerful tools, VisionLink provides drivers and dealers with information such as map data, operating and idle times, fuel level, and much more. Vims™ 3g We have worked tirelessly to help our customers and drivers optimize their performance through our Vital Information Management System (VIMS 3G). Highly visible, the graphical information display features a large touch screen interface. Intuitive operation and easy navigation thanks to our enhanced user interface. Drivers are kept informed at all times of any anomalies or system operation, for reduced maintenance times.
Safety first
Security We constantly equip our machines with new features to improve driver safety. Machine Access The stairs on the left and right sides, inclined at 45°, improve safety when the driver is climbing up or down the 834K. Continuous walkways with non-slip surfaces are integrated into maintenance areas. Three points of contact can be maintained at all times through maintenance areas accessible from the ground or a platform. Visibility Optional heated mirrors ensure optimal visibility for increased safety. Standard Cat Vision or optional Cat Detect with radar improves driver awareness of the machine's surroundings. Optional LED or xenon (HID) headlights provide excellent visibility of the work area. Optional LED beacons can be mounted on the cabin. Driving Position Reduced vibration levels for the driver thanks to cabin mounts and equipment and steering controls mounted on the seat. Low interior noise levels. Pressurized cabin with filtered air. 76 mm (3 in) seat belts installed as standard on the driver's seat.
Reduced environmental impact
Sustainable Development The concept of sustainable development is at the heart of the features of the 834K. The engine idle shutdown and automatic downshifting at idle functions help save fuel by avoiding unnecessary idling. Our maintenance-free batteries limit waste production. The 834K model is designed to have multiple lives. To help maximize the machine's lifespan, Caterpillar offers a number of options, such as the Reman and Certified Rebuild programs. Within these programs, reused or remanufactured parts allow for 40 to 70% savings, reducing your operating costs. Caterpillar offers upgrade packages to equip older models with new features, maximizing your resources. And if you choose the Cat Certified Rebuild program, these upgrades are included in the refurbishment process.
Specialized Cat Accessories
Cat Blades Cat blades are resistant, durable, and designed with excellent pushing and rolling characteristics. Capacities and widths are defined to ensure maximum productivity. The specific design allows for spreading cover materials and pushing heavier loads. Straight Blade The straight blade (7.9 m3/10.3 yd3) is designed for large-scale pushing of material piles and general earthmoving operations. Universal Blade The universal blade (11.1 m3/14.7 yd3) is designed for moving heavy loads over long distances in mining applications. Semi-Universal Blade The semi-universal blade (10.1 m3/13.3 yd3) combines the characteristics of straight and universal blades. Its capacity has been increased by adding short wings, which only have tips for pushing without sacrificing the characteristics of straight blades. Coal Blade The coal blade (22.2 m3/29 yd3) is designed for precise and productive pushing, ensuring excellent load retention with superior capacity for lighter materials. The wing angles help retain the load during pushing. This blade is available from Cat Work Tool and Services (CWTS). Assemblies Straight, semi-universal, and universal blades consist of the blade, push arms, hydraulic lifting device, tilt and dump cylinders, trunnion mount, stabilizer, and hydraulic line protection. Other Available Options Contact your Cat dealer to learn more about blade options such as the coal and wood bucket, available from CWTS and Custom Products services.
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for 834K
- ENGINE
- Engine ModelC18 CAT®
- Net Power370 kW
- Bore145 mm
- Stroke183 mm
- Displacement18.1 l
- Torque Rise52 %
- Rated Speed1900 RPM
- Net Power: SAE J1349370 kW
- Max Speed at Power1500 RPM
- Maximum Torque - 1300 RPM2836 Nm
- Gross Power: SAE J1349419 kW
- EmissionsTechnology meets U.S. EPA Tier 4 Final/EU Stage IV, equivalent to Tier 3 or Tier 2
- TRANSMISSION
- Direct Drive, Forward 212.4 km/h
- Direct Drive, Forward 322.1 km/h
- Direct Drive, Reverse 17.2 km/h
- Direct Drive, Reverse 213 km/h
- Direct Drive, Reverse 323 km/h
- Forward 320.3 km/h
- Direct Drive, Forward 1Lockout
- Transmission TypeCat Planetary Powershift
- Forward 211.6 km/h
- Forward 435.4 km/h
- Reverse 16.8 km/h
- Forward 16.8 km/h
- Reverse 212.2 km/h
- Reverse 321.4 km/h
- Direct Drive: Forward 438.5 km/h
- BRAKES
- BrakesISO 3450:2011
- AXLES
- FrontFixed
- RearOscillating
- Oscillation Angle±13°
- WEIGHT
- Operating Weight47,750 kg
- MAINTENANCE CAPACITIES
- Cooling System120 l
- Transmission120 l
- Fuel Tank793 l
- Crankcase60 l
- Differential - Reducer - Front186 l
- Differential - Reducer - Rear186 l
- Diesel Exhaust Fluid Tank33 l
- Hydraulic System - Tank Only140 l
- Factory Fill Hydraulic System240 l
- OPERATING CHARACTERISTICS
- Blade Capacities7.9 to 22.2 m3 (10.3 to 29.0 yd3)
- Operating Weight47,750 kg
- ACOUSTIC PERFORMANCE
- Sound Level Inside Cab: Standard72 dB(A)
- Sound Level Outside Cab: Standard111 dB(A)
- Sound Level Outside Cab: Sound Suppression109 dB(A)
- Sound Level Inside Cab: Sound Suppression71 dB(A)
- DIMENSIONS
- Length - Front Tire8715 mm
- Front Axle to Hitch Pin2275 mm
- Length - With Straight Blade on Ground9927 mm
- Wheelbase4550 m
- Ground Clearance531 mm
- Rear Axle to Bumper3187 mm
- Height - Top of Hood3334 mm
- Ground Clearance - Bumper933 mm
- Length - Universal Blade on Ground10470 mm
- Cab Height4184 mm
- Height - Top of Air Cleaner3895 mm
- BLADES
- Blade Capacities7.9 to 22.2 m3 (10.3 to 29.0 yd3)
- HYDRAULIC SYSTEM - LIFT/TILT
- Maximum Pilot System Flow52 l/min
- HYDRAULIC SYSTEM - LIFT/TILT
- Relief Valve Setting: Lift/Tilt32000 kPa
- Pilot Relief Valve Setting4000 kPa
- Lift/Tilt SystemVariable Displacement Piston Pump
- Pilot SystemVariable Displacement Piston Pump
- HYDRAULIC SYSTEM: LIFT/TILT
- Double-Acting Cylinders - Right and Left Tilt, Bore and Stroke140 mm × 230 mm (5.5 in × 9.1 in)
- Maximum Flow at 1900 RPM582 l/min
- Lift/Tilt System: CircuitLoad-Sensing Pilot Valve with Electro-Hydraulic Control
- Double-Acting Cylinders - Lift, Bore and Stroke139.75 mm × 1021 mm (5.5 in × 40.2 in)
- HYDRAULIC SYSTEM: STEERING
- Maximum Flow250 l/min
- Steering System: PumpPiston, Variable Displacement
- Steering Relief Valve Setting24100 kPa
- Steering Cycle Time - High Idle3.1 s
- Steering Cycle Time - Low Idle5.7 s
- Steering System: CircuitPilot, Load-Sensing
- Total Steering Angle86 °
Standard Equipment for 834K
-
ELECTRICAL EQUIPMENT
- Reverse Alarm
- Alternator (100 A)
- Maintenance-Free Batteries
- Deutsch Terminal Connectors
- Electrical Circuit (24 V)
- Lighting Circuit, Halogen Headlights (Front and Rear), Access Ladder
- Heavy-Duty Electric Starter
- Emergency Start Receptacle
-
DRIVER'S COMPARTMENT
- Air Conditioner
- Soundproof and Pressurized Cabin
- Four-Post Rollover Protective Structure (ROPS/FOPS), Radio Ready (Background Radio) with Antenna, Speakers, and Converter (12 V, 15 A), 12V Power Outlet, Tinted Glass
- Cigarette Lighter (12 V, 15 A) and Ashtray
- Clothes Hook
- Electrohydraulic Tilt/Tip Controls
- Heater and Defroster
- Electric Horn
- Cabin Lighting (Overhead Light)
- Lockout Clutch Neutralizer Switch
- Lunchbox and Cup Holder Mounts
- VIMS 3G Monitoring System
- Three-Level Warning System
-
Instruments, Indicators:
- Engine Coolant Temperature
- Fuel Level
- Hydraulic Oil Temperature
- Speedometer/Tachometer Display
- Transmission Oil Temperature
- Warning Lamps
- Axle/Brake Oil Temperature (Front/Rear)
- Brake Oil Pressure
- Electrical System, Low Voltage
- Engine Air/Combustion Air Temperature
- Engine Oil Pressure
- Engine Overspeed
- Fuel Pressure
- Hydraulic Oil Filter Status
- Parking Brake Status
- Transmission Filter Status
- Cat Vision (Rear Vision Camera) - External Mirrors
- Rim Pull Selection Switch
- Comfort Series Seat (Fabric Upholstery), Air Suspension
- Retractable 76 mm (3 in) Wide Seat Belt
- STIC Control System with Steering Lock
- Tilt and Lift Control Circuit Lock
- Transmission Gear Indicator
- Integrated Wiper/Washer Blades (Front and Rear)
- Intermittent Front Wiper
-
POWERTRAIN
- Oil-Bathed Disc Brakes, Fully Hydraulic, Enclosed in Housing
- Multi-Disc Maneuver Brakes
- Return Line Filters
- Variable-Speed Fan
- C18 MEUI Cat Engine, ATAAC, ADEM™ IV Controller
- Electric Fuel Priming Pump
- Parking Brake
- Engine Air Precleaner
- Next Generation Modular Radiator
- Modular Radiator (NGMR)
- Separate Cooling Circuit
- Automatic Ether Starting Aid
- Throttle Lock
- Torque Converter, Rotor Clutch with Lock-Up Control and Rim Pull Control (Switch and Dial in Cabin)
- Planetary Transmission, Autoshift (4F/3R)
-
OTHER STANDARD EQUIPMENT
- Service Access Doors (Lockable)
- Engine, Sump, 500-Hour Interval with CH-4 Oil
- Remote-Mounted Pressure Taps and Electronic Clutch Pressure Control
- Grouped Clutch Pressure Tap
- Hitch, Drawbar with Pin
- Metal Engine Enclosure with Lockable Service Doors
- Hydraulic Oil Cooler
- Muffler (Under Hood)
- Oil Sampling Taps
- Left-Side Ladder (Rear Access)
- Load Sensing Steering
- Vandalism Locks
- Venturi Stack
-
TIRES, WHEELS, AND RIMS
- Tire type must be selected in the Required Equipment section. Base machine price includes tires.
-
ANTIFREEZE
- Long-Life Premixed 50% Coolant, Freeze Protection Down to -34°C (-29°F)
Available Options for 834K
-
POWERTRAIN
- Antifreeze, -50°C (-58°F)
- High-Speed Engine Oil Drain System, Wiggins
- Engine Block Heater (120V or 240V)
- Engine Compression Brake
- Automatic Retarder Control (with Engine Compression Brake)
- Axle Oil Cooler
- Second Starter
- Undercarriage Guards
-
DRIVER'S COMPARTMENT
- Cabin Prefilter
- AM/FM/CD/MP3 Radio
- Sirius Satellite Radio with Bluetooth
- Warning Beacon
- CB Radio Readiness
- Retractable Sun Visor
- Soundproofing
- Sun Visor Package: Retractable Curtain in Cabin
- Cat Detect (Rear Object Detection)
-
MISCELLANEOUS EQUIPMENT
- Road Travel Front and Rear Mudguards
- Quick Fuel Fill System (Shaw-Aero)
- Cat Detect
- Halogen and High-Intensity Discharge (HID) Headlamps
