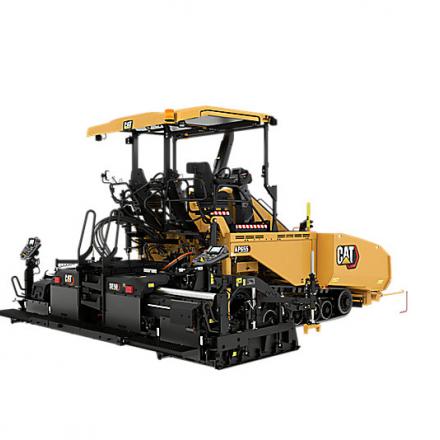

Asphalt pavers SE50 VT Screed
Request a QuoteKey Information
Standard Weight
3,295 kg
Operating weight with SE50 VT
2.55 m - 5.0m
Maximum laying range
8.0 m
Overview
Quality Installation
The CAT® SE50 VT paver uses screed bars and rear-mounted extensions to provide smooth material flow and greater pavement density. Its high stability, easy adjustments, and versatile paving range make it the ideal tool for airports, highways, and many medium-sized paving applications.
AdvantagesUser-Friendly
Multiple language options, a two-speed extension control, and adjustment settings for the feed screw and conveyors make it easy to use.
High-Quality Results
The improved screed bar and deflector plate provide smooth flow to the screed plates, resulting in excellent paving results.
Advanced Technology
The paving startup assistant saves defined profiles for reuse on future projects, simply activate the profile for quick and customized adjustments.
Key Features
- Versatility of the application
- Ease of use
- Fluid Material Flow
- Start Assistant for Coating Installation
- Fast Heating, Even Distribution
- Leveling Command Option
- Maintenance and Repair Kits
Versatility of the application
Common applications include city or country roads, streets, airports, and highways. The standard paving range from 2.55m to 5m (8' 4" to 16' 4") offers excellent performance when changing paving width, both for urban highway paving applications. Bolt-on extensions provide a maximum paving width of 8m (26' 3")."""
Ease of use
The display of the operation can be customized according to the language, with many options available. The exclusive proportional and 2-speed extension control provides smooth adjustment when changing the width of the coating. The table consoles are equipped with a feed screw ratio and conveyor adjustment, which allows for the possibility of modifying the material flow. Optional feed controls for extension height allow drivers to quickly manage coating quality. The led edge adjustment devices of the smoothing plate help maintain a flat surface across the entire width of the table, in order to improve laying quality and increase the lifespan of the smoothing plate.
Fluid Material Flow
The improved groomer bar and deflector plate provide a smooth flow towards the smoothing plates. The smoothing plate depths of 324 mm (12.75"), on the main plate and extensions, offer great stability and good coating textures. The heated end valve option prevents material from sticking, for better edge profiles and improved joint fitting capacity."""
Start Assistant for Coating Installation
The start-up assistant saves the defined profiles in order to reuse them on other future sites, you just need to activate the profile for quick and personalized adjustment. The adjustment preferences include: paver speed, towing point height, table heating temperature, laying speed, laying width, laying depth, crown, extension height (powered option), table assistance and locking functions. The adjustment functions are located in the left display of the table and are also visible on the right display of the table and on the tractor displays.
Fast Heating, Even Distribution
The generator integrated into the tractor provides heating for the smoothing plates in 15 minutes, for quick starts. The electric heating system with zone monitoring helps ensure even distribution of heat and smooth asphalt textures, while allowing heating to continue even in case of temperature sensor failure.
Leveling Command Option
Factory-mounted leveling system that helps eliminate surface irregularities and control coating thickness for improved production, lower operating costs, and greater profitability. User-friendly system with text display, split-screen mode, and running sensor selection. Precise control implemented through automatic 10-point calibration, actual leveling with 5 transducers in each sensor, and cross-coupling function that consistently maintains slope requirements when elevation is modified.
Maintenance and Repair Kits
The maintenance and repair kits for finishers and tables include the necessary parts for specific repairs. Cat original parts are manufactured according to precise technical specifications and designed to offer optimal performance and maximum availability. Repair kits are identified by a unique part number to facilitate ordering. Some components are available in kit form through the dealer, for over-the-counter purchase or through the dealer's maintenance workshop.
Contact Our Experts
Morocco
International
Monday to Friday 8am-5:30pm (UTC)
Product Specifications for SE50 VT Screed
- WEIGHT
- Standard Weight3295 kg
- OPERATING CHARACTERISTICS
- Standard Paving Range2.55 to 5.0 m (8'4" to 16'4")
- Maximum Paving Range8 m
- Screed RPM Range700 to 1800 RPM
- Vibration Speed Range0 to 3000 RPM
- Maximum Paving Depth305 m
- Crown Range-2% to +5%
- Extensions Height Range-20 mm to +50 mm
- Heating Time - Maximum Width25 minutes
- Heating Time - Standard Width15 minutes
- Extensions Tilt Range-3% to +2%
- DIMENSIONS
- Transport Width, End Gates Folded2.55 m
- Transport Length, Tractor and Screed6666 mm
- Plate Width, Front to Back324 mm
- Length - Front to Back, Fixed End Gates2345 mm
- Length - Front to Back, Lowered End Gates1731 mm
Standard Equipment for SE50 VT Screed
-
POWER CONTROLS
- Crown
- Maintenance and Repair Kits
- Warning Horn
- Manual End Valve
-
MATERIAL DELIVERY
- Thickness Screws
Available Options for SE50 VT Screed
-
DRIVER'S COMPARTMENT
- Paving Assistant Startup
- Suspended Controls
- Sun Visor/Umbrella
- LCD Display Sunshade
-
TECHNOLOGY
- Cat Leveling Control
-
SAFETY
- Road Lighting
-
MATERIAL DELIVERY
- Chute Arm Spacer
- Feeder Gate
- Extension Kits
- Foldable End Gate
- Heated End Gate
- Stop Block
- Edge Plate
- Safety Edge Plate
- Wide Plate
